Maintenance Removing the Controller
CubiScan 125 60
• To remove a serial cable, loosen the screws (with a screwdriver if
necessary), and pull the cable connector out using even pressure.
6. Remove the four Allen head screws on the corners of the control box
mounting plate (see Figure 57 above) using a 1/8" Allen wrench. The
touchscreen is in the center of the mounting plate, and the mounting
plate is attached to the front of the CubiScan 125 base.
7. Verify that all cables have been removed from the control box, then pull
the box out from the front.

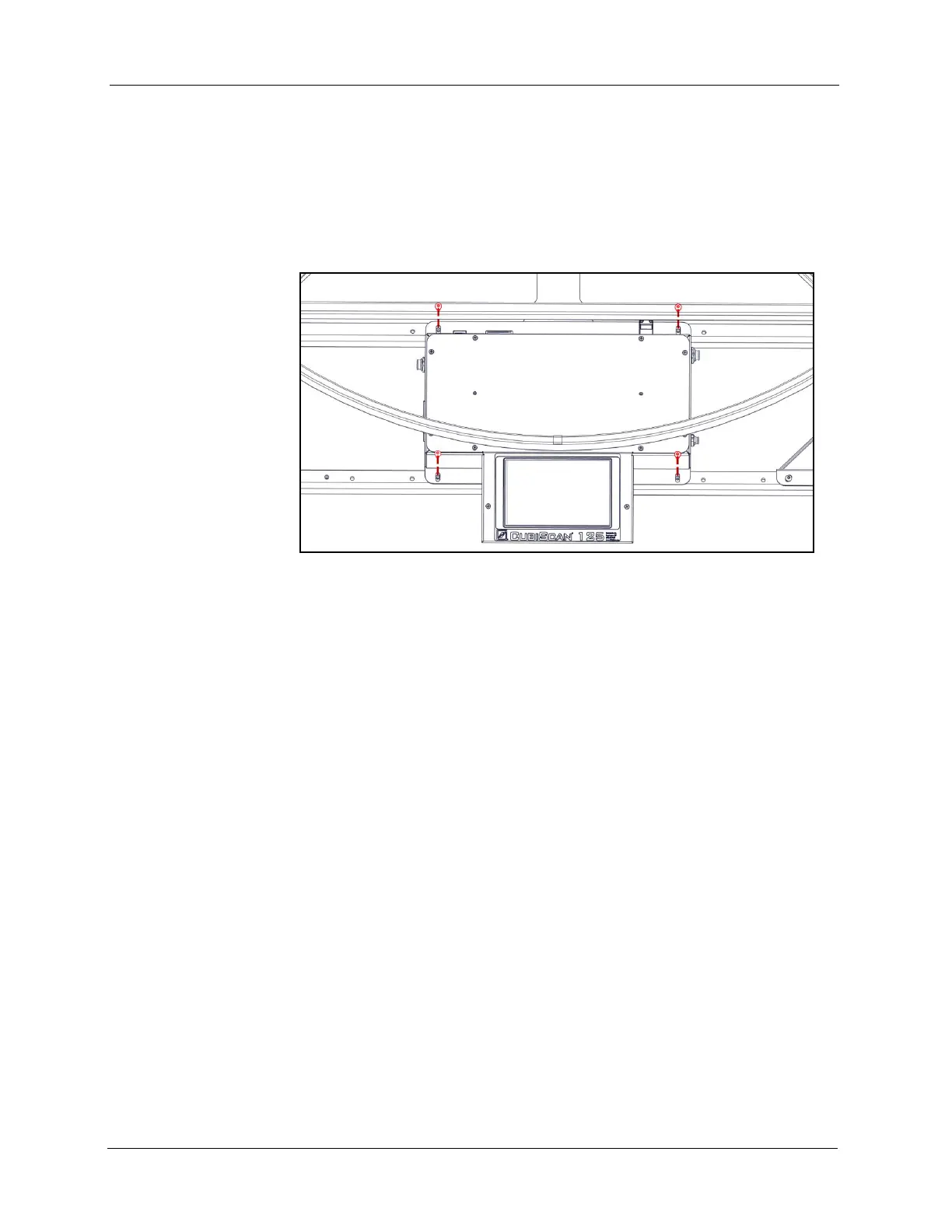

Figure 57
Control Box
