3.5 Connections for Ethernet model

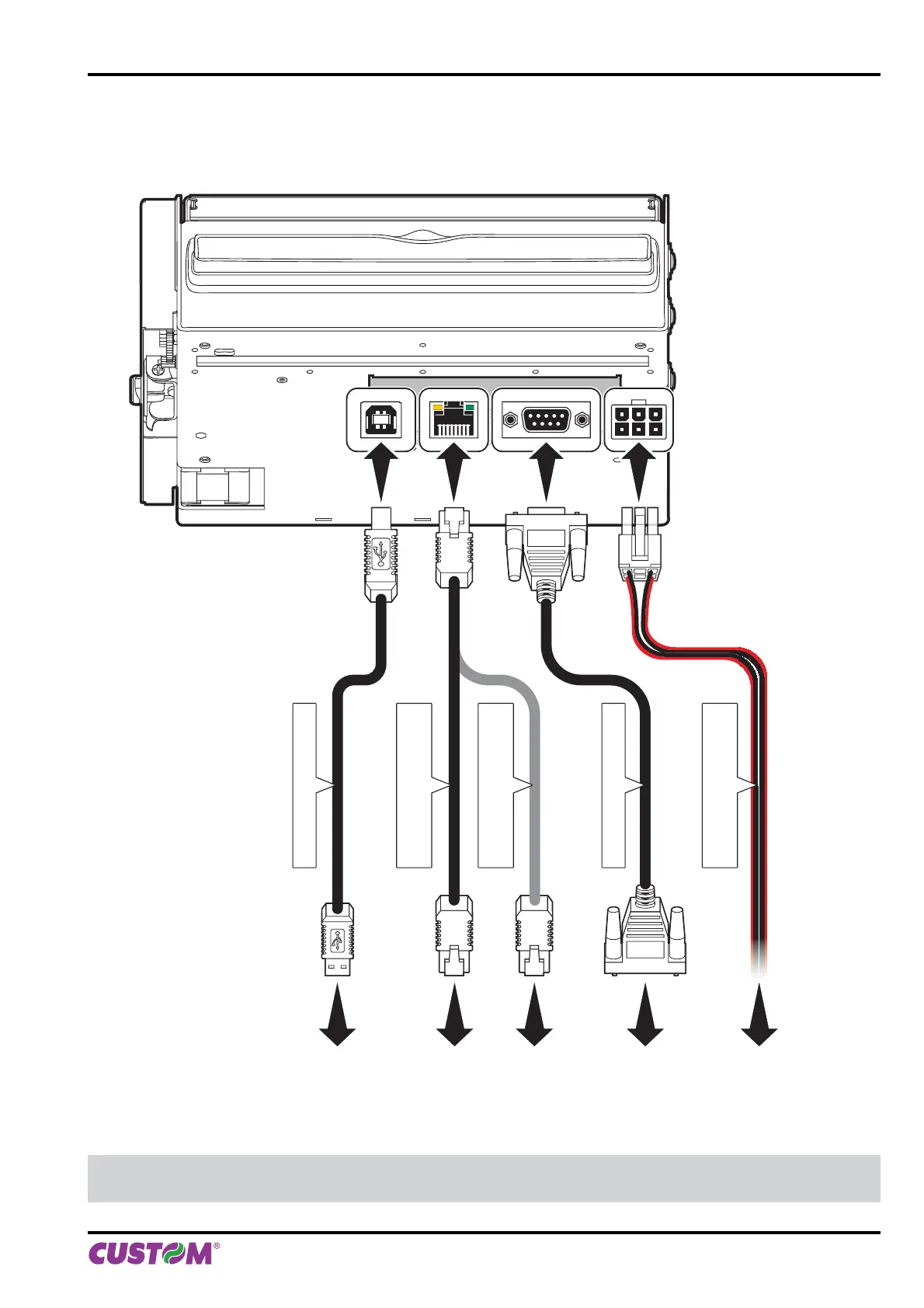

The following fi gure shows the possible connections for device.
USB
USB standard cable
ETHERNET UTP
standard cable (pin-to-pin)
PC HUB
ETHERNET CrossOver
standard cable
RS232
Seriale standard cable
POWER SUPPLY
Power Supply cable
(supplied)
ATTENTION:
In some using conditions, we recommend the installation of a ferrite core on the power supply cable.
3. INSTALLATION
User manual KPM216HII ETH 21
