3.4 Near paper end sensor

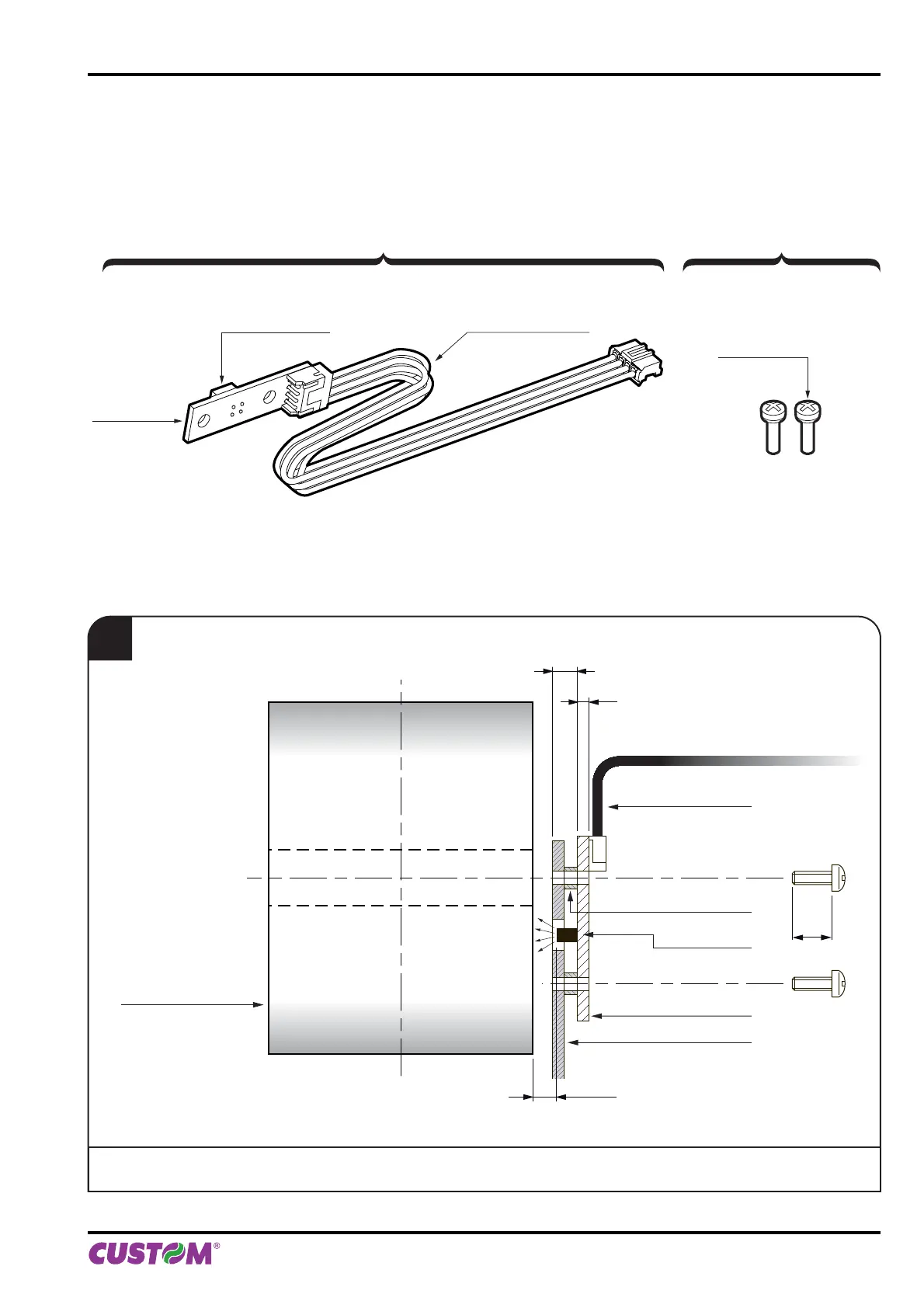

The printer includes a near paper end sensor with wiring (see following fi gure). To fi x the sensor use two M3 screws
not supplied.
NPE sensor
NPE
sensor board
NPE wiring
Fixing
screws M3
MATERIAL INCLUDED
MATERIAL NOT
INCLUDED
For the assembly procedure, proceed as follows:
1
Fix the near paper end sensor board to the support using two M3 screws not included.
For the correct functioning of the near paper end sensor, comply with the measures specified
NPE sensor board
Spacers
Paper roll
NPE sensor
Support
NPE wiring
1÷6 mm
B
A+B
A
3. INSTALLATION
User manual KPM216HII ETH 19
