11 88

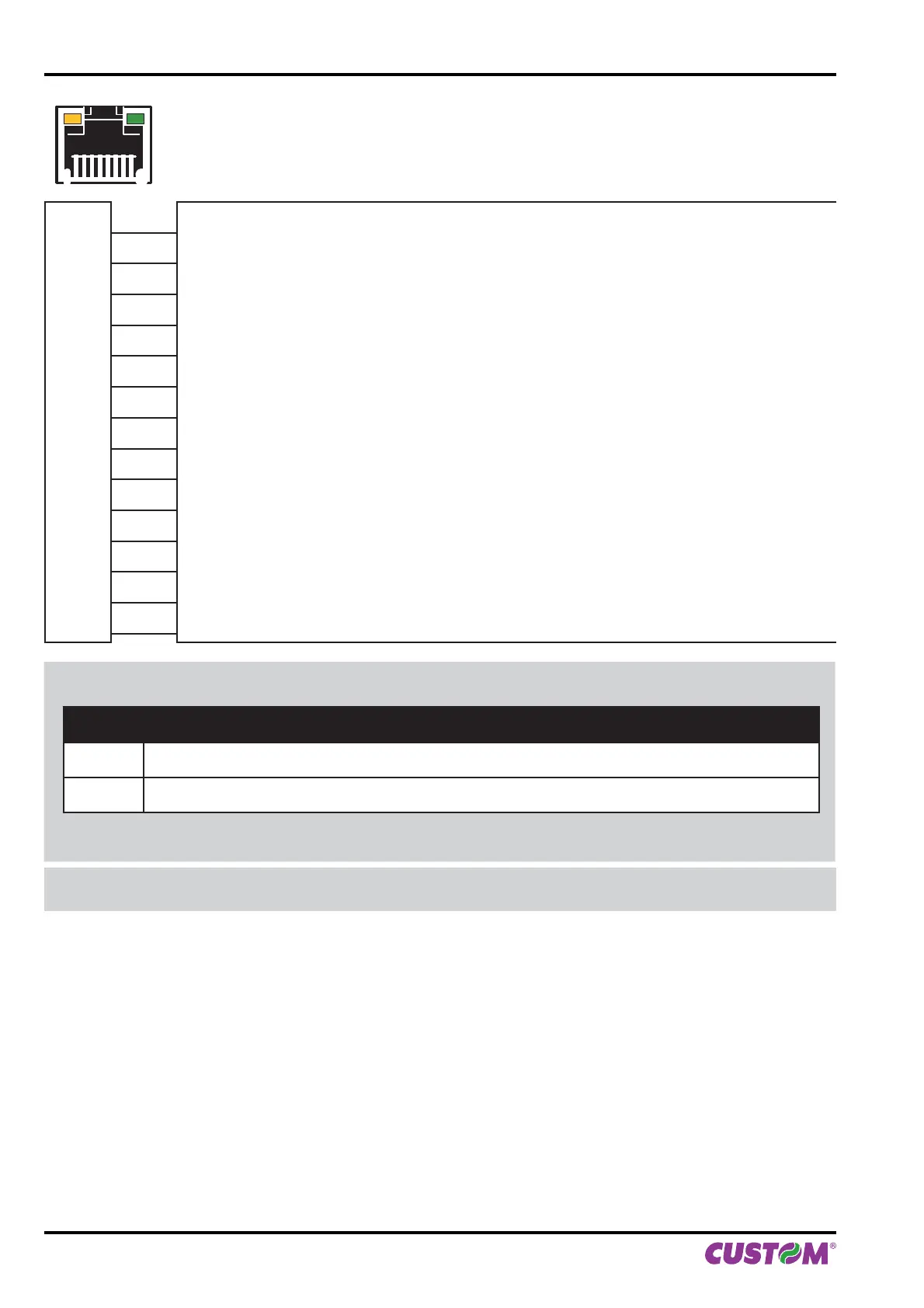

ETHERNET INTERFACE
Female RJ45 connector
J3
1 TPOUT +
2 TPOUT -
3 TPIN +
4 GND
5 GND
6 TPIN -
7 n.c
8 n.c
9 +3.3 V
10 LED-LAN
11 +3.3 V
12 LED-LNK
13 Shield
14 Shield
Note:
The functionality of two led are specifi ed in the following table:
LED FUNCTION
LED-LNK Link (yellow color): the led lights up when a connection is active
LED-LAN Rx/Tx: (green color): the led lights up when occurs a data reception or transmission
• To directly connect the printer to a Personal Computer, use a Cross-Over Ethernet cable.
• To connect the printer to a hub device, use an UTP Ethernet cable (Pin to Pin).
Note: The pinout shown in table represents the input signals to component J15 before the isolation voltage trans-
former (through-hole pin).
3. INSTALLATION
24 KPM216HII ETH User manual
