9.1 Kit for near paper end
For the device is available a kit of wirings with near paper end sensor (cod. 26300000000602) supplied as an accessory.

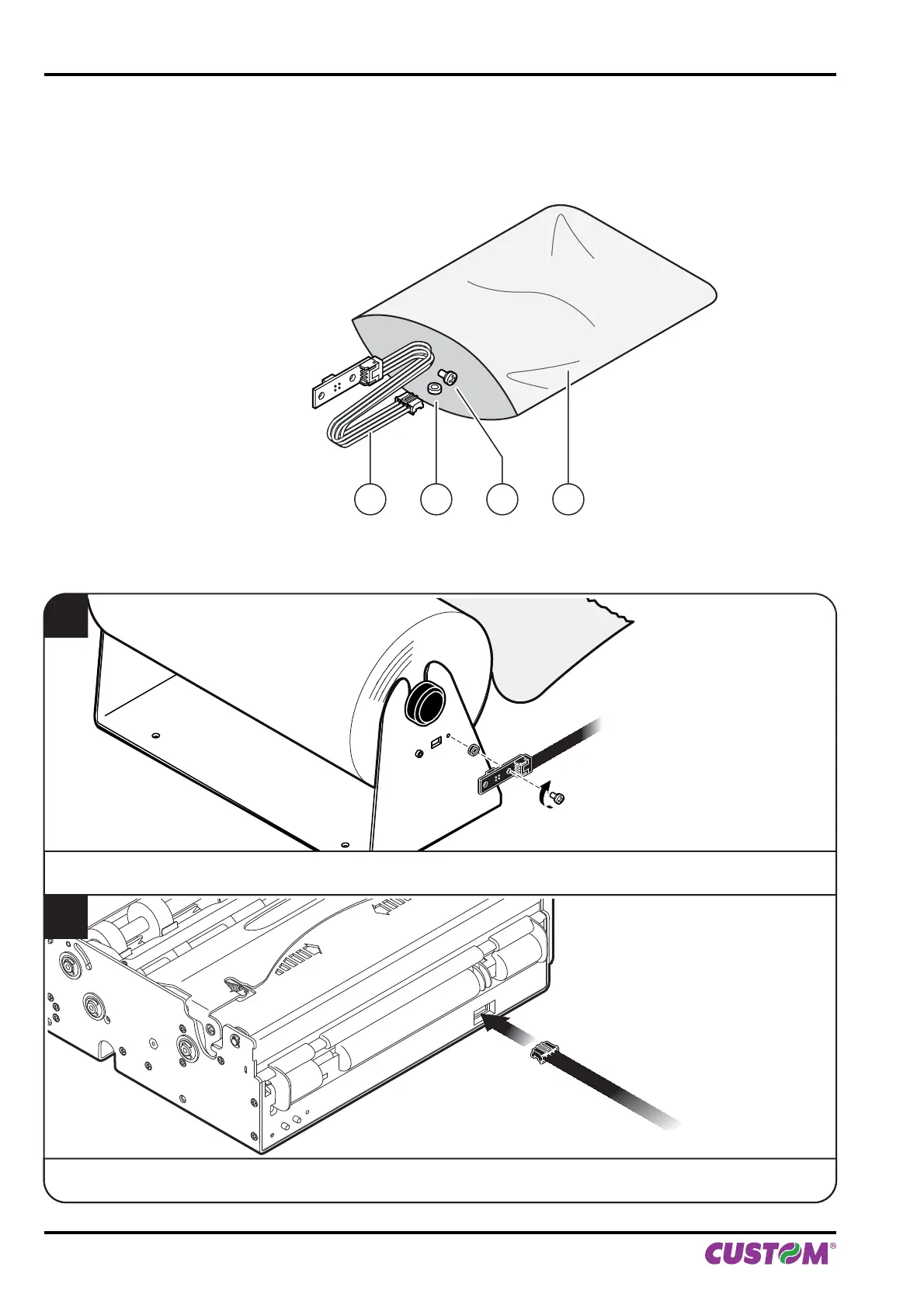

The kit includes:
1. Wiring assembled with near paper
end sensors board
2. Plastic spacer
3. Fixing screw
4. Shield
1 2 3 4
To assemble the near paper end sensor to roll holder support, proceed as follows:
1
Fix the near paper end circuit as shown
using the spacer and the screw
2
Connect the near paper end cable with the printer.
