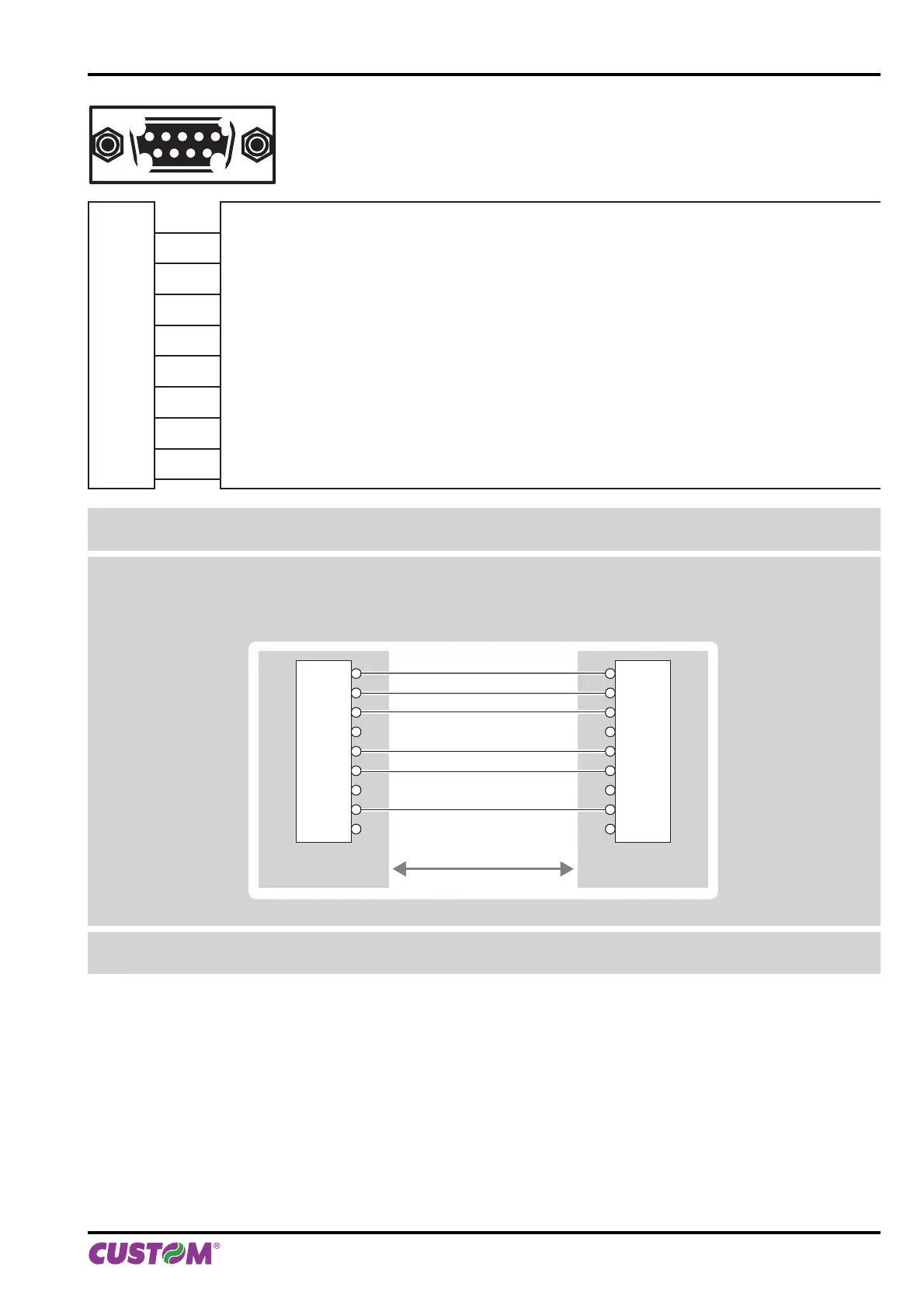

RS232 SERIAL INTERFACE
Female DB9 connector
J5
1 DTR
2 TX During transmission, takes the values “0” and “1” depending on data.
3 RX During reception, takes the values “0” and “1” depending on data.
4 n.c.
5 GND
6 DTR When “1”, printer is power on.
7 CTS
8 RTS When “1”, printer is ready to receive data
9 n.c.
Note: Given the presence of the RS232 standard, logic value “0” corresponds to a voltage level of between +3Vdc
and +15Vdc and logic value “1” corresponds to a voltage level of between -3Vdc and -15Vdc.
Note: KPM216HII ETH > PC connection
The following pictures shows an example of connections between the printer and a personal computer using a 9
pin female RS232 serial connectors:
PRINTER PC
DCD
RXD
TXD
SIGNAL GND
DSR
CTS
DB9
1
2
3
4
5
6
7
8
9
DB9
1
2
3
4
5
6
7
8
9
Note: When use a serial cable, we recommend the installation of a ferrite core on the power supply cable.
