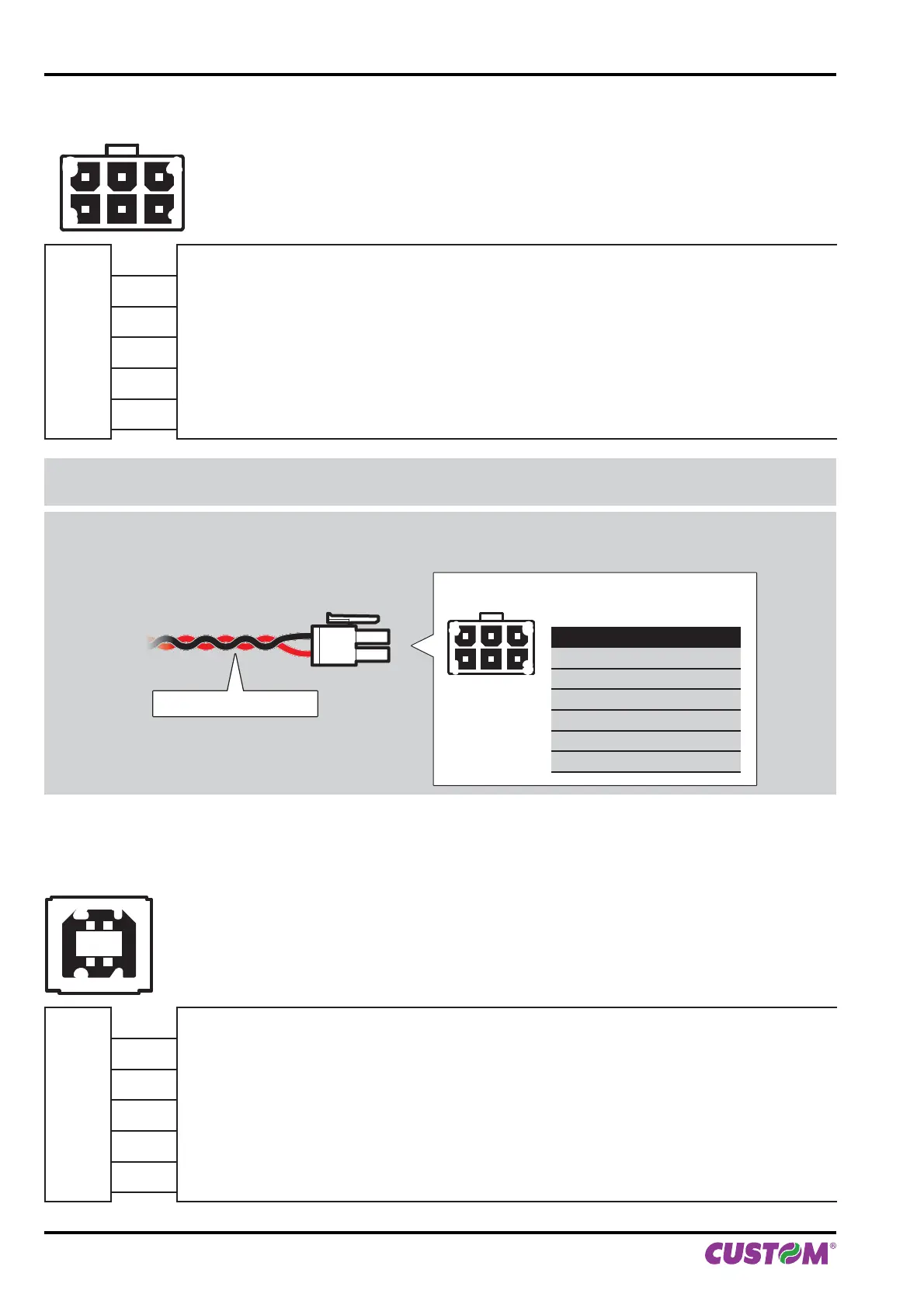

3.6 Pinout
1
4
3
6
POWER SUPPLY
Male Molex connector vertical (no. 39-30-0060)
J19
1 +24 Vdc
2 +24 Vdc
3 +24 Vdc
4 GND
5 GND
6 GND
ATTENTION:
Respect power supply polarity.
Nota: Power supply cable
The following fi gure shows the connector pinout of the power supply cable for the device:
Power supply cable
Female connector
Molex (n.39-01-2065)
GND
Black
6
GND
not connected
5
GNDBlack4
+24V
Red
3
+24V
not connected
2
SignalCable colorPIN
+24V
Red
1
1 3
4 6
12
3 4
USB INTERFACE
Female USB type B connector
J4
1 USB0-VBUS (in)
2 D0 - (in/out)
3 D0 + (in/out)
4 GND
SH1 SHIELD
SH2 SHIELD
3. INSTALLATION
22 KPM216HII ETH User manual
