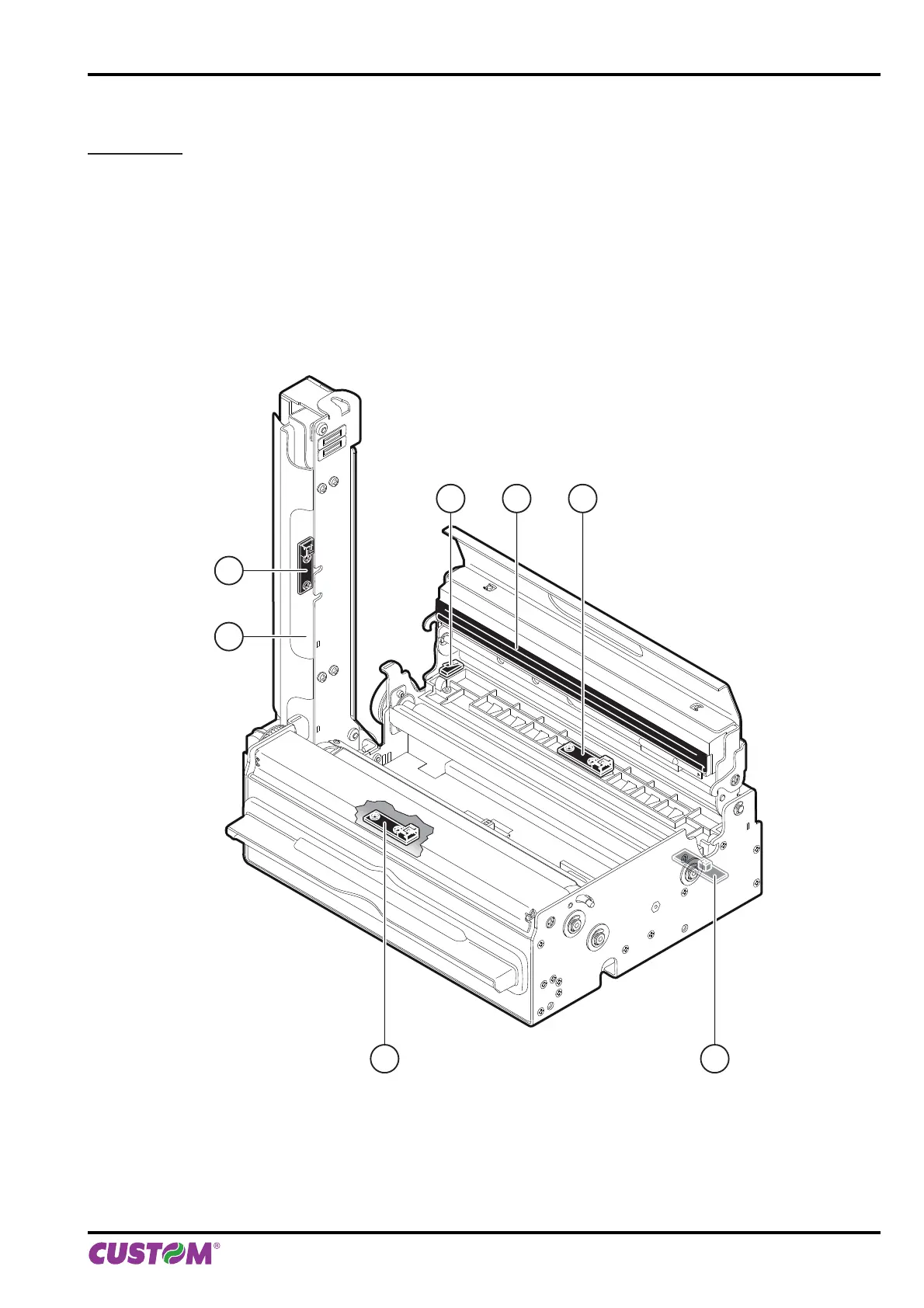

Internal view
1. ‘Paper in presence’ sensor
2. Printing head
3. ‘Printing head open’ sensor
4. ‘Paper under the cutter’ sensor
5. Cutter
6. ‘Paper out presence’ sensor
7. Sensor for notch detection
2 13
4
5
6 7
