D-Link DGS-1210 Series User Manual

4 Web-based Switch Configuration D-Link Smart Managed Switch User Manual
86
IPv6 Network Address: Specifies the IPv6 address.
NOTE:
The Static Route settings and Routing
Table Finder of Ipv4 / IPv6 need to be configured
with different setting pages.
L3 Functions > ARP > ARP Table Global Settings
The ARP Table Global Settings page displays the current ARP entries on the Switch. The table allows
network managers to view, define, modify, and delete ARP information for specific devise. Static entries can
be defined in the ARP table. When static entries are defined, a permanent entry is entered and is used to
translate IP addresses to MAC addresses.

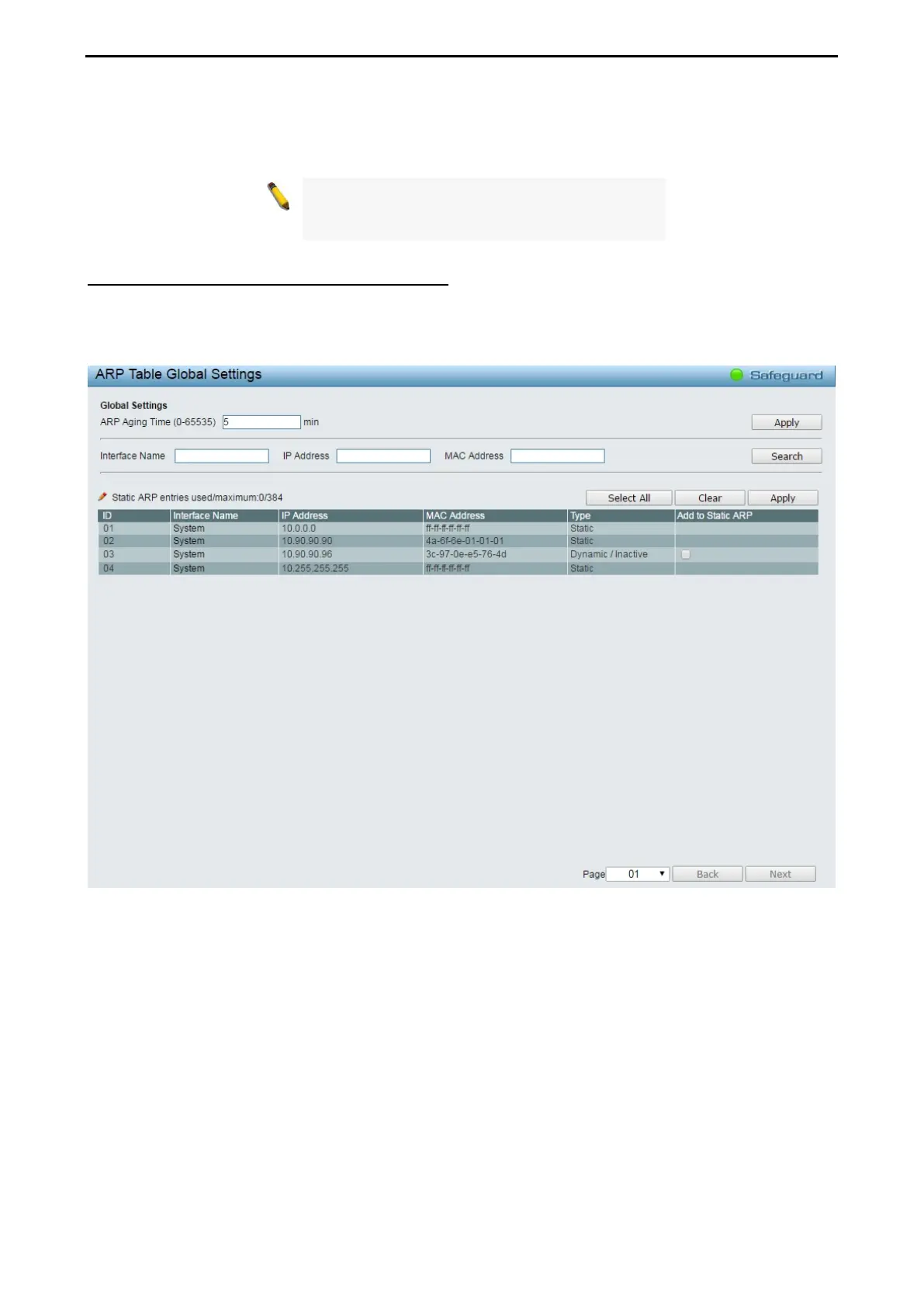

Figure 4.105 – L3 Functions > ARP > ARP Table Global Settings
Global Settings:
ARP Aging Time (0-65535): Specifies the ARP entry age-out time, in minutes. The default is 5 minutes.
Interface Name: Enter or view the Interface name used.
IP Address: Enter or view the IP Address used.
MAC Address: Enter or view the MAC address used.
Click the Search button to locate a specific entry based on the information entered.
Click the Select All button to
Click the Clear button to remove the entry listed in the table.

D-Link DGS-1210 Series Specifications

General

Model	DGS-1210 Series
Uplink Ports	2/4 (varies by model)
VLAN Support	Yes
QoS	Yes
Management	Web-based
Dimensions	Varies depending on the model
Weight	Varies depending on the model
Operating Temperature	0°C to 45 °C
Power Consumption	Varies depending on the model
Certifications	CE, FCC, RoHS
Port Count	24, 48 (varies by model)
Gigabit Ethernet Ports	24, 48 (varies by model)
PoE Support	Available on some models (DGS-1210-28P, DGS-1210-52P, etc.)
Jumbo Frame Support	Yes, up to 9, 216 Bytes
Storage Temperature	-40°C to 70°C
