When y ou have finished co nfiguring the previous parameters, click th e Add button to add the new ISM VLAN. The new ISM
VLAN will appear in the list at the bottom of the window, as shown below:

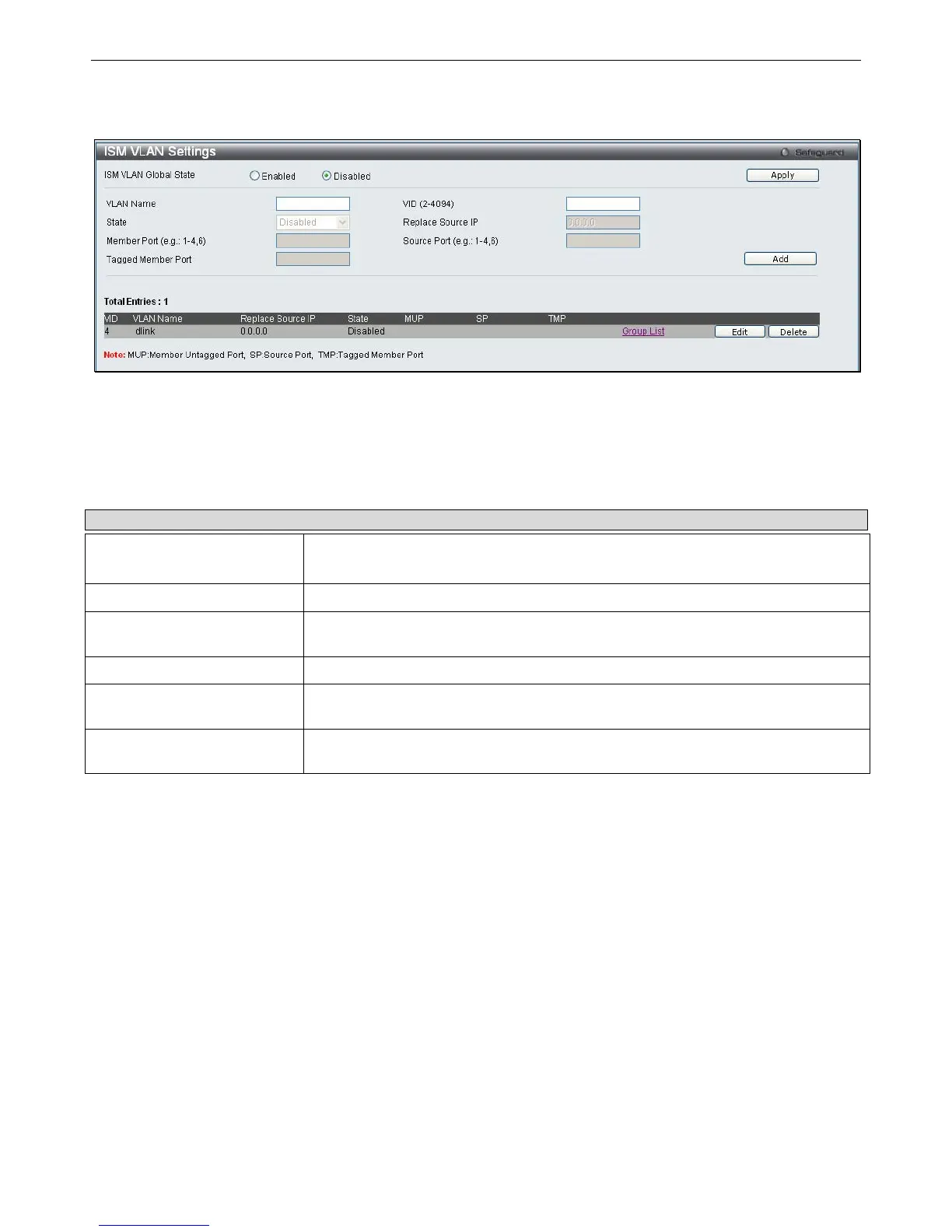

Figure 3 - 29. ISM VLAN Settings window
Editing an existing ISM VLAN Setting entry:
1. Click the Edit button next the ISM VLAN you want to edit.
2. The following parameters can be modified:
Parameter Description
ISM VLAN Global State
Enable or disable the IGMP Snooping Multicast (ISM) VLAN Global State.
Click Apply button to confirm the ISM VLAN Global State.
State
Use the drop-down menu to enable or disable the selected Multicast VLAN.
Member Port (e.g.: 1-4, 6)
Enter a port or list of ports to be added to the Multicast VLAN. Member ports shall be
the untagged members of the multicast VLAN.
Tagged Member Port
Enter a port or list of ports that will become tagged members of the Multicast VLAN.
Replace Source IP
This field is used to replace the source IP address of incoming packets sent by the
host before being forwarded to the source port.
Source Port (e.g.: 1-4, 6)
Enter a port or list of ports to be added to the Multicast VLAN. Source ports shall be
the tagged members of the multicast VLAN.
