Forwarding & Filtering
The Forwarding & Filtering folder con tains th ree windows: Unicast Forw arding, Multica st Forwarding, and Multicast
Filtering Mode.
Unicast Forwarding
Users can set up unicast forwarding on the Switch.
To view the following window, click L2 Features > Forwarding & Filtering > Unicast Forwarding:

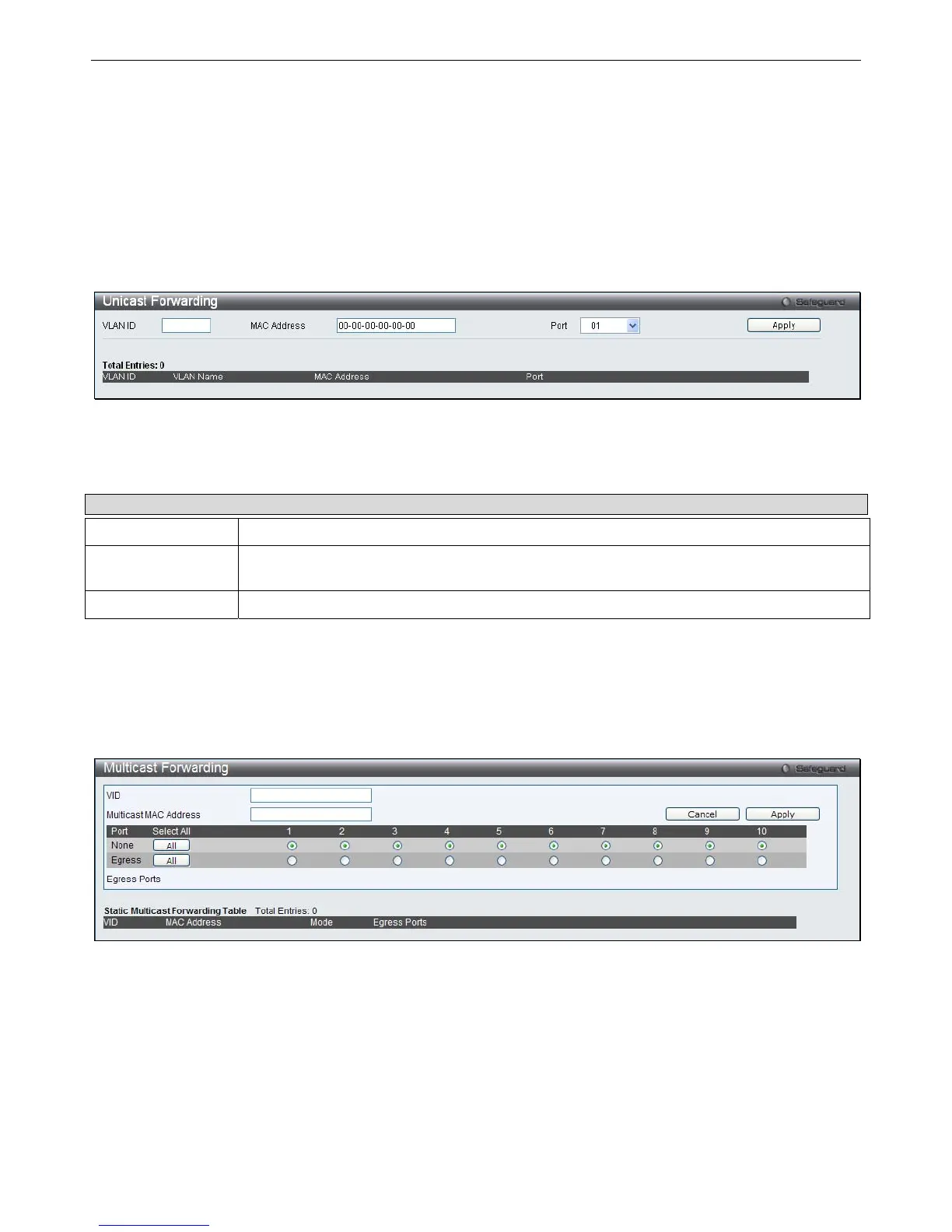

Figure 3 - 49. Unicast Forwarding window
To add an entry to the Static Unicast Forwarding Table, define the following parameters. To modify an entry on the Static Unicast
Forwarding Table, click the Edit button corresponding to th e entry. To delete an entry in t he Static Unicast Forwarding Tab le,
click the corresponding Delete button.
Parameter Description
VLAN ID (VID)
The VLAN ID number of the VLAN on which the associated unicast MAC address resides.
MAC Address
The MAC address to which packets will be statically forwarded. This must be a unicast MAC
address.
Port
Allows the selection of the port number on which the MAC address entered above resides.
Click Apply to implement the changes made.
Multicast Forwarding
Users can set up multicast forwarding on the Switch.
To view the following window, click L2 Features > Forwarding & Filtering > Multicast Forwarding:
Figure 3 - 50. Multicast Forwarding window
This window displays all of the entries made into the Switch's static multicast forwarding table. The following parameters can be
set:
