xStack
®
DGS-3200 Series Layer 2 Gigabit Ethernet Managed Switch
Save All
Open t he Save dr op-down menu on t he l eft-hand si de of t he m enu bar at t he top of t he Web m anager and cl ick Save Al l to
immediately save the current configuration file and current log. The following window will open:

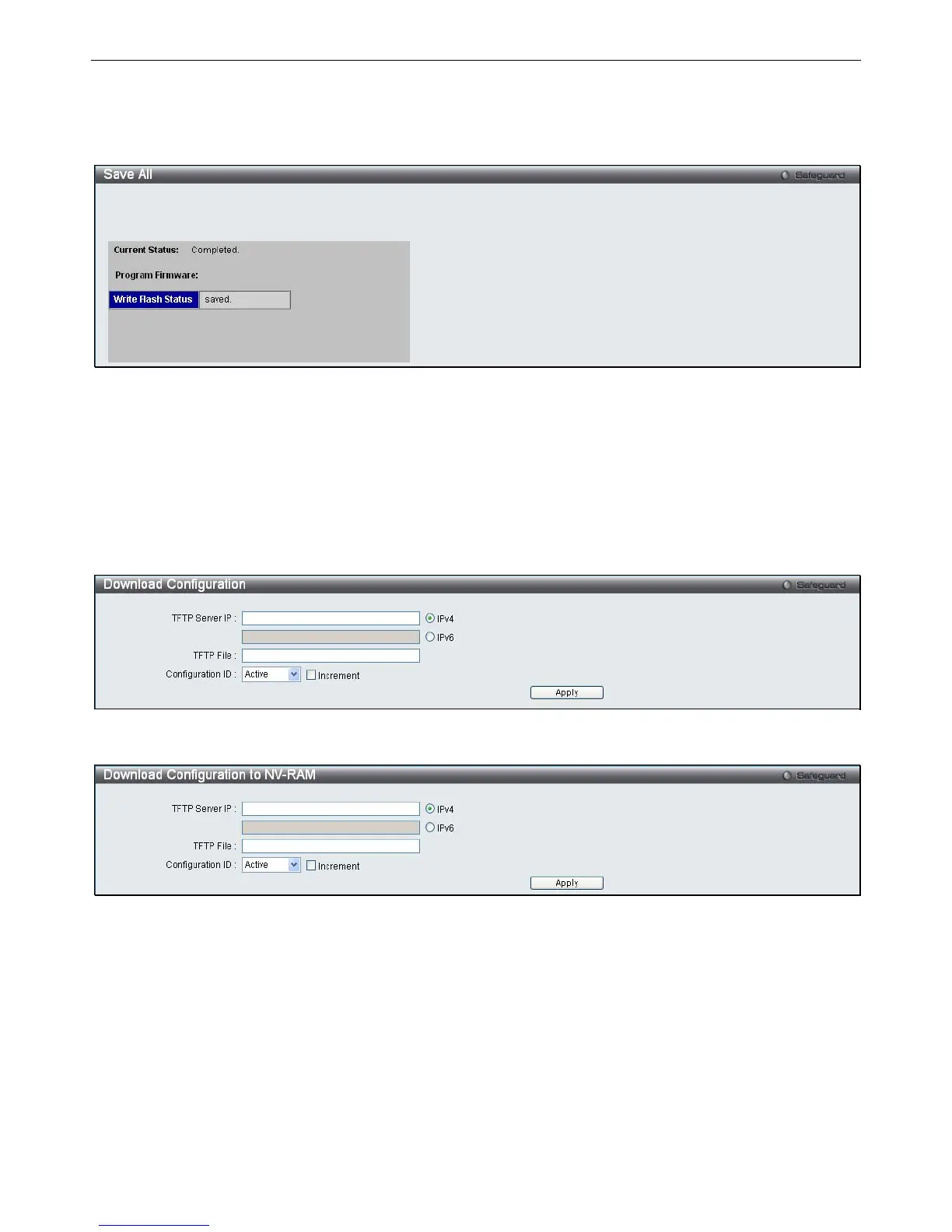

Figure 8 - 5. Save All window
Download Configuration File/Download Configuration File to
NV-RAM
The Switch can store dual configuration files. The configuration files are indexed as Active, 1, or 2.
Open the Tools dr op-down menu o n t he left-hand si de of t he menu bar at t he t op of t he Web m anager and cl ick Download
Configuration File to open the following window:
Figure 8 - 6. Download Configuration window (DGS-3200-10 and DGS-3200-16)
Figure 8 - 7. Download Configuration to NV-RAM window (DGS-3200-24)
Use th e radio button to select eith er IPv 4 or IPv6 . En ter t he TF TP Se rver IP a ddress for the ty pe of IP selected. Specify the
path/file name of the TFTP File. Select th e desired Configuration ID, Active, 1 or 2. Tick the Increment checkbox to allow the
download of a p artial switch configuration file. This allows a file to be downloaded that will ch ange only the switch parameters
explicitly stated in the configuration file. All other switch parameters will remain unchanged.
Click Apply to initiate the file transfer.
252
