Methods
The multiple authentication method options include: None, Any (MAC, 802.1X or
WAC/JWAC), 802.1X+IMPB, IMPB+JWAC, and IMPB+WAC.
 None means all multiple authentication methods are disabled.
 Any (MAC, 802.1X or WAC/JWAC) means if any of the authentication methods
pass, then access will be granted. In this mode, MBAC, 802.1X and WAC/JWAC)
can be enabled on a port at the same time. In Any (MAC, 802.1X or WAC/JWAC
mode, whether an individual security module is active on a port depends on its
system state.
As system states of WAC and JWAC are mutually exclusive, only one of
them will active on a port at the same time.
 802.1X+IMPB means 802.1X will be verified first, and then IMPB will be verified.
Both authentication methods need to be passed.
 IMPB+JWAC means IMPB will be verified first, and then JWAC will be verified.
Both authentication methods need to be passed.
 IMPB+WAC means IMPB will be verified first, and then WAC will be verified. Both
authentication methods need to be passed.
Authorized Mode
Toggle between Host Based and Port Based. When Port Based is selected, if one of the
attached hosts passes the authentication, all hosts on the same port will be granted access to
the network. If the user fails the authorization, this port will keep trying the next authentication
method. When Host Based is selected, users are authenticated individually.
Click Apply to implement the changes made.
Guest VLAN
Users can assign ports to or remove ports from a guest VLAN.
To view the following window, click Security > Multiple Authentication > Guest VLAN:

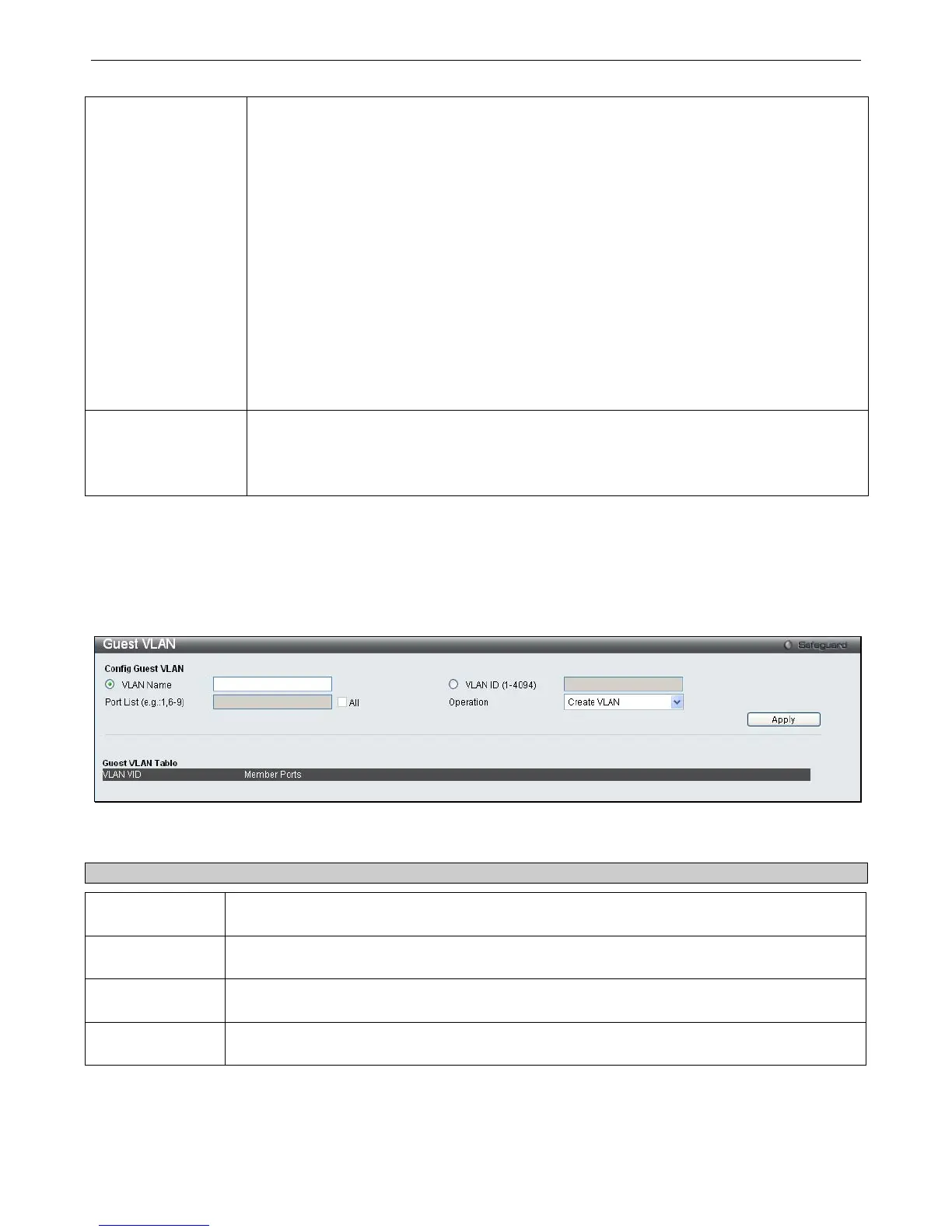

Figure 5 - 62. Guest VLAN window
The following fields may be modified to configure Guest VLANs:
Parameter Description
VLAN Name
Click the button and assign a VLAN as a Guest VLAN. The VLAN must be an existing static
VLAN.
VLAN ID (1-4094)
Click the button and assign a VLAN ID for a Guest VLAN. The VLAN must be an existing static
VLAN before this VID can be configured.
Port List (e.g:1, 6-
9)
The list of ports to be configured. Alternatively, tick the All check box to set every port at once.
Operation
Use the drop-down menu to choose the desired operation: Create VLAN, Add Ports, or Delete
Ports.
Click Apply to implement the Guest VLAN. Once properly configured, the Guest VLAN and associated ports will be listed in the
lower part of the window.
