xStack
®
DGS-3200 Series Layer 2 Gigabit Ethernet Managed Switch
136
802.1X (Port-based and Host-based Access Control)
The IEEE 802.1X standard is a security measure for authorizing and authenticating users to gain access to various wired or
wireless devices on a specified Local Area Network by using a Client and Server based access control model. This is
accomplished by using a RADIUS server to authenticate users trying to access a network by relaying Extensible Authentication

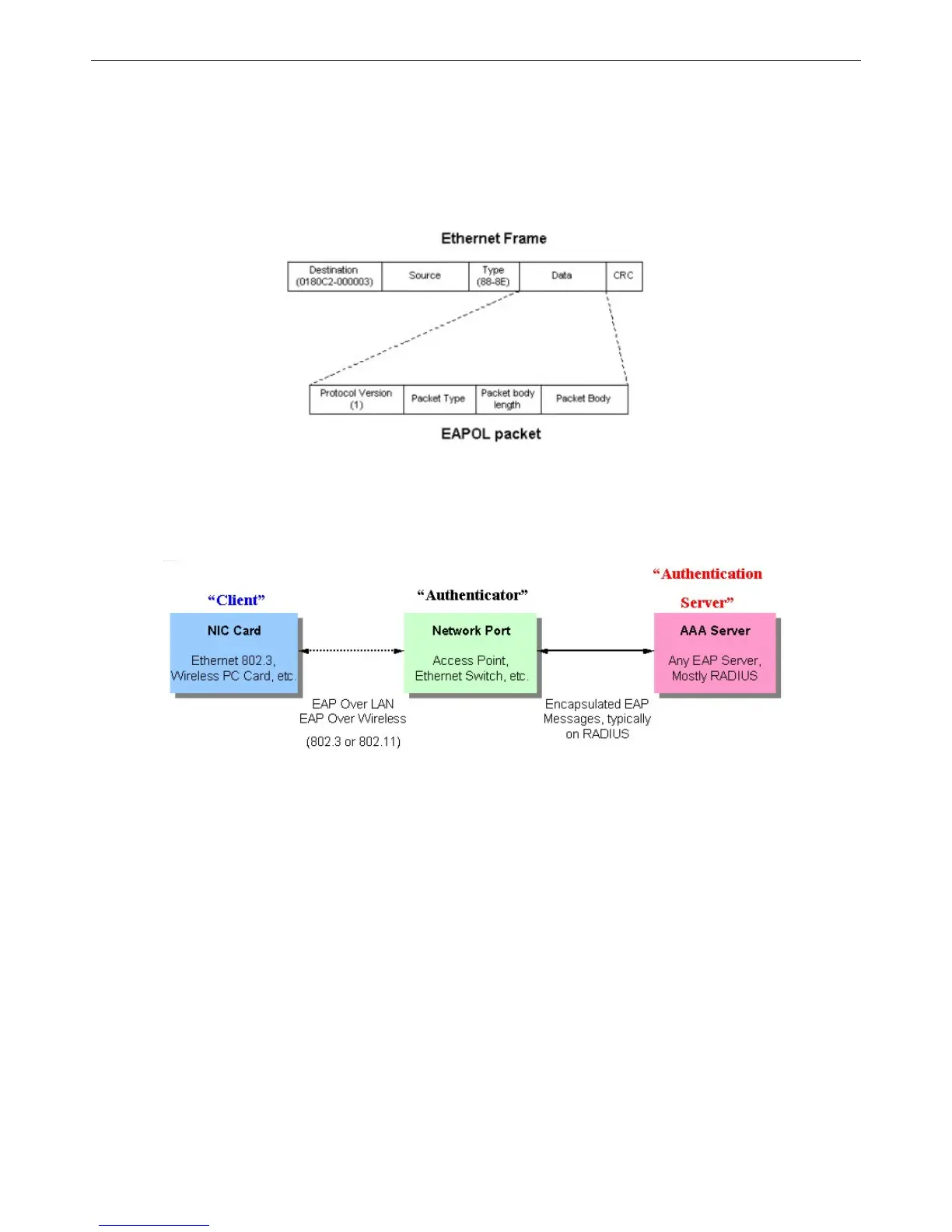

Protocol over LAN (EAPOL) packets between the Client and the Server. The following figure represents a basic EAPOL packet:
Figure 5 - 17. EAPOL Packet
Utilizing this method, unauthorized devices are restricted from connecting to a LAN through a port to which the user is connected.
EAPOL packets are the only traffic that can be transmitted through the specific port until authorization is granted. The 802.1X
Access Control method has three roles, each of which are vital to creating and up keeping a stable and working Access Control
security method.
Figure 5 - 18. Three Roles of 802.1X
The following section will explain the three roles of Client, Authenticator and Authentication Server in greater detail.
