MAC-based VLAN Settings
Users can create new MAC-based VLAN entries and search, edit, and delete existing entries. When an entry is created for a port,
the port will automatically become the untagged member port of the specified VLAN. When a static MAC-based VLAN entry is
created for a user, th e traffic from this user will be able to be serviced under the specified VLAN regardless of the authentication
function operating on this port.
To view the following window, click L2 Features > MAC-based VLAN Settings:

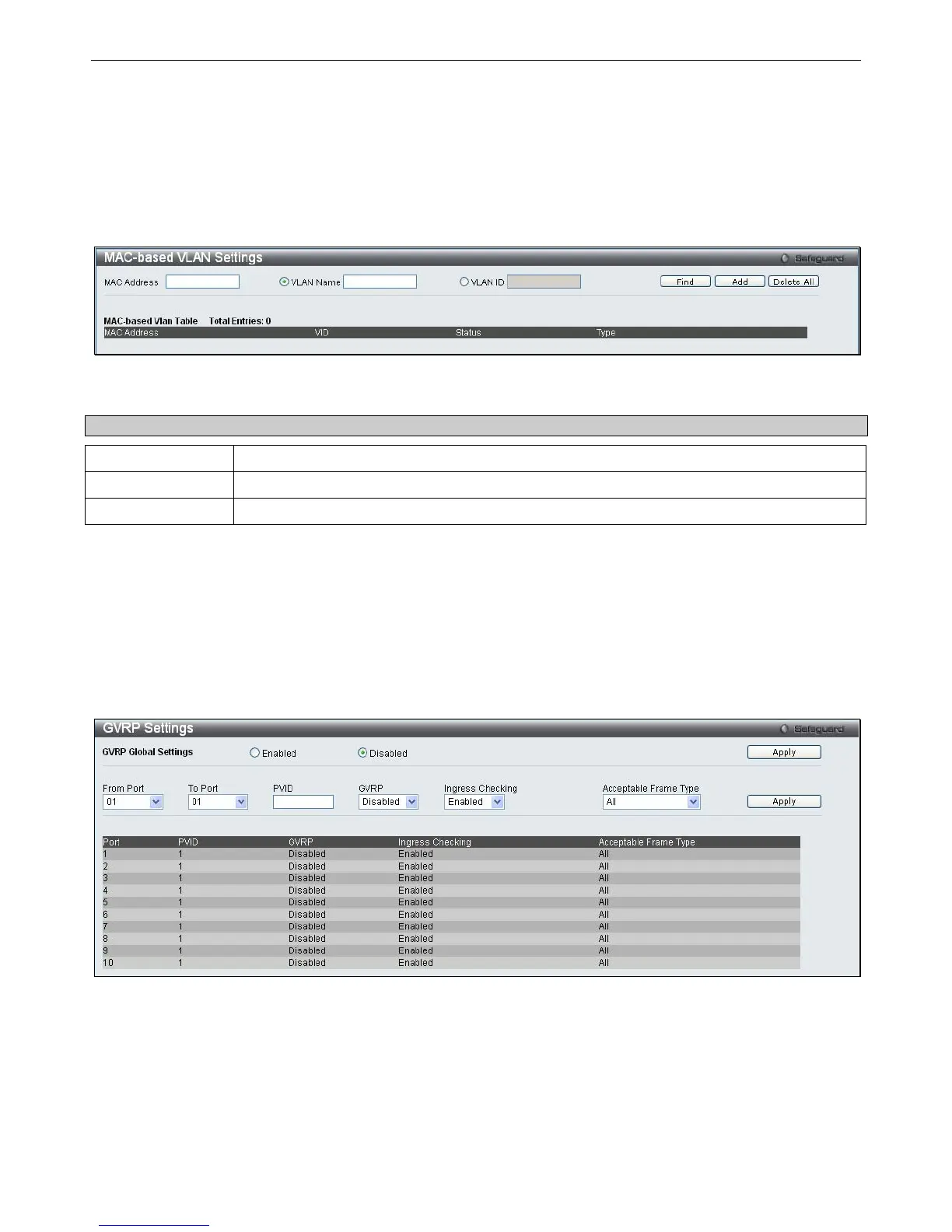

Figure 3 - 16. MAC-based VLAN Settings window
The following fields can be set:
Parameter Description
MAC Address
Specify the MAC address to be reauthenticated by entering it into the MAC Address field.
VLAN Name
Enter the VLAN name of a previously configured VLAN.
VID
Click this button and enter the VLAN ID.
Click Find, Add or Delete All for changes to take affect.
GVRP Settings
Users can determine whether th e Switch will sh are its VLAN co nfiguration information with other GARP VLAN Registration
Protocol (GVRP) enabled switches. In addition, Ingress Checking can be used to limit traffic by filtering incoming packets whose
PVID does not match the PVID of the port. Results can be seen in the table under the configuration settings.
To view the following window, click L2 Features > GVRP Settings:
Figure 3 - 17. GVRP Settings window
Click Apply to implement changes made. See table below for description of parameters.
