Packets
The Web manager allows various packet statistics to be viewed as either a line graph or a table. Six windows are offered.
Received (RX)
To select a port to view these statistics for, select the port by using the Port drop-down menu. The user may also use the real-time
graphic of the Switch at the top of the web page by simply clicking on a port.
To view the following windows, click Monitoring > Packets > Received (RX):

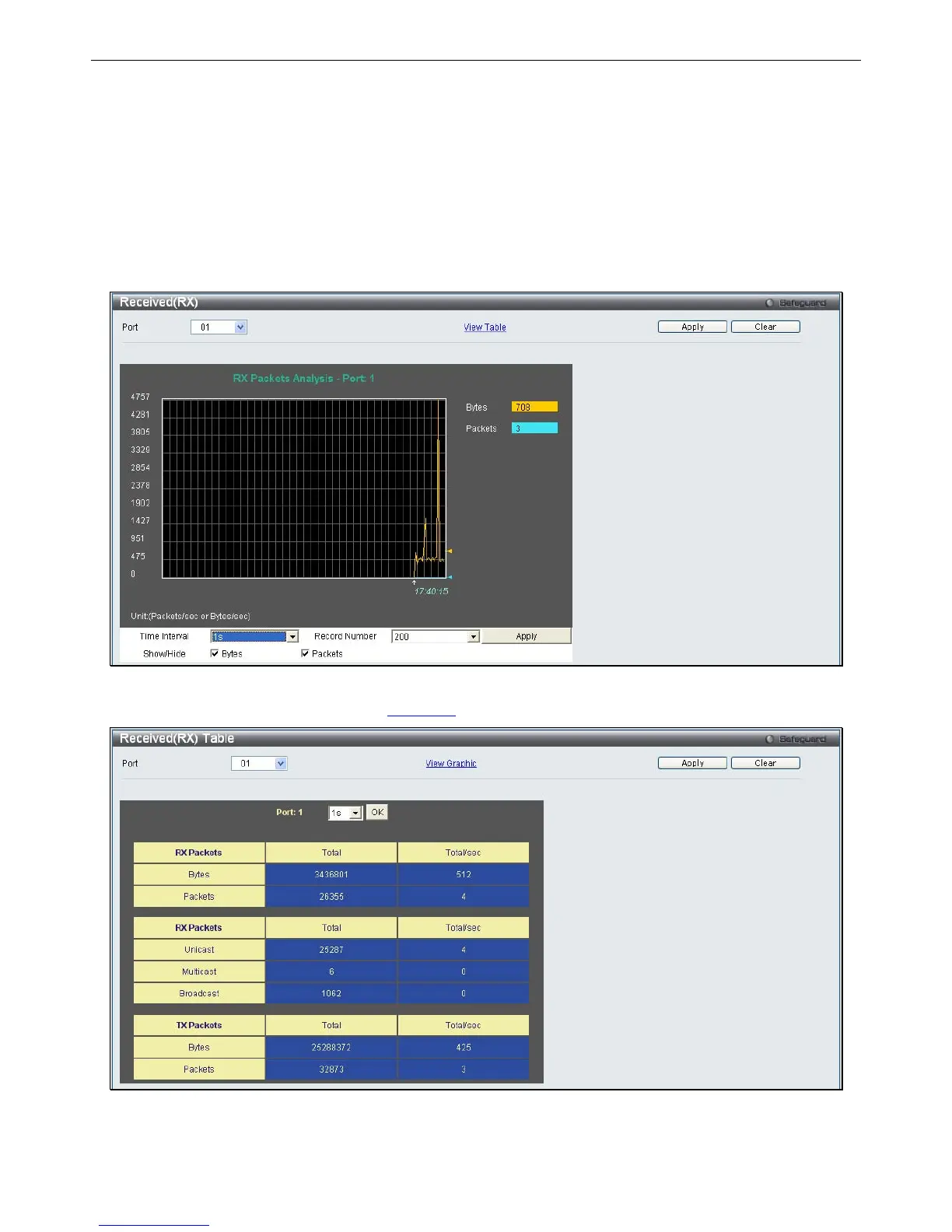

Figure 7 - 8. Received (RX) window (for Bytes and Packets)
To view the Received (RX) Table window, click View Table
.
Figure 7 - 9. Received (RX) Table window (for Bytes and Packets)
