Access Profile List
Access profiles allow you to estab lish criteria to determine whether the Switch will forward packets based on th e i nformation
contained in each packet's header.
The Switch supports four Profile Types, Ethernet ACL, IPv4 ACL, IPv6 ACL, and Packet Content ACL.
Creating an access profile is di vided into two basic parts. The first is to specify which part or parts of a frame the Switch will
examine, such as the MAC source address or the IP destination address. The second part is entering the criteria the Switch will use
to determine what to do with the frame. The entire process is described below in two parts.
Users can display the currently configured Access Profiles on the Switch.
To view the following window, click ACL > Access Profile List (one access profile of each type has been created for explanatory
purposes):

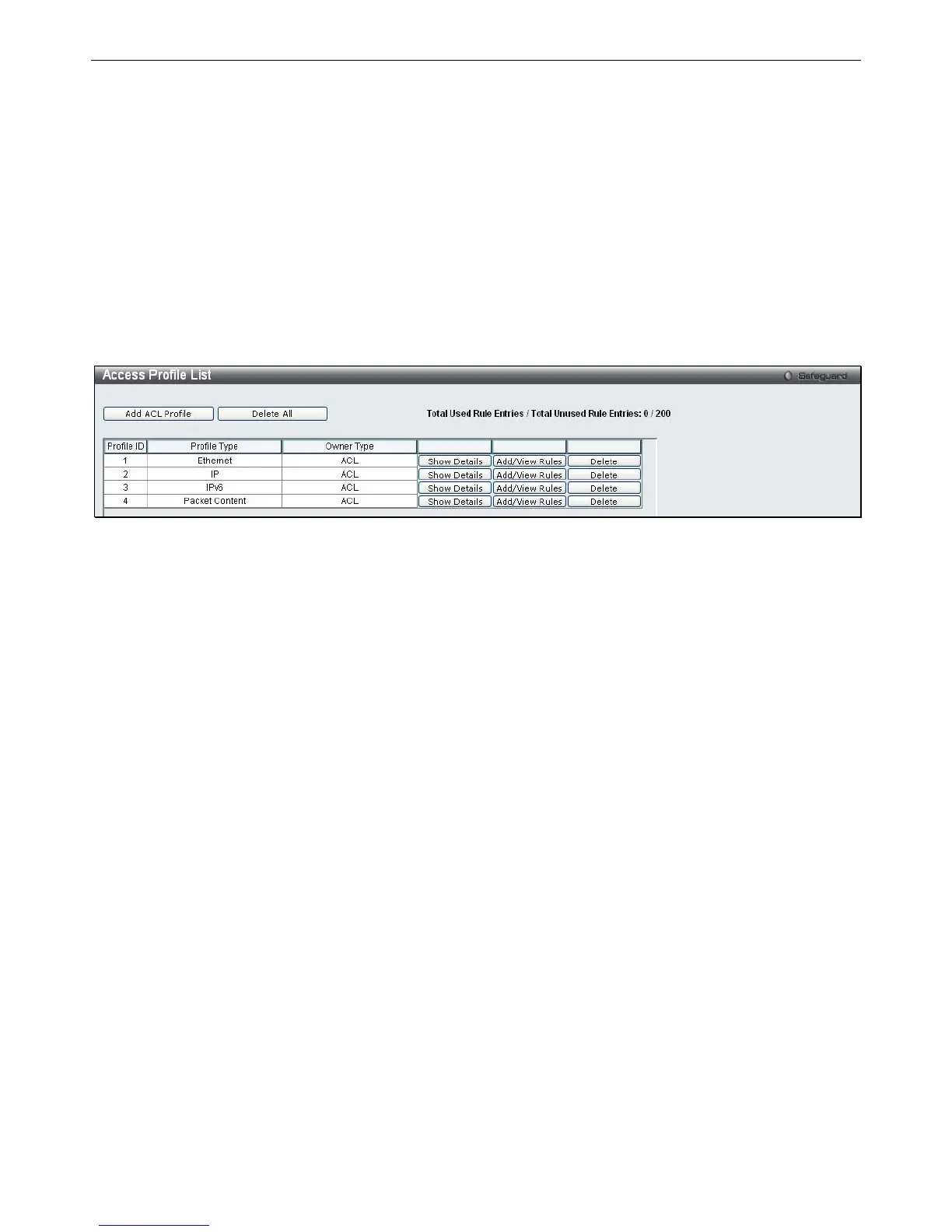

Figure 6 - 2. Access Profile List window
To add an en try to th e Access Profile List window, click the Add ACL Profile button. To remove all access profiles from this
table, click Delete All.
There are four Add Access Profile windows; on e for Eth ernet (o r M AC addr ess-based) pr ofile co nfiguration, on e for IPv 6
address-based pro file conf iguration, on e for IPv4 add ress-based profile con figuration, and on e fo r packet conten t pro file
configuration.
