xStack
®
DGS-3200 Series Layer 2 Gigabit Ethernet Managed Switch
242
Browse Router Port
Users can display which of the Switch’s ports are currently configured as router ports. A router port configured by a user (using
the c onsole or Web-based managem ent int erfaces) is displayed as a static router port, designated by S. A router port that is
dynamically configured by the Switch is designated by D, while a Forbidden port is designated by F.
To view the following window, click Monitoring > Browse Router Port:

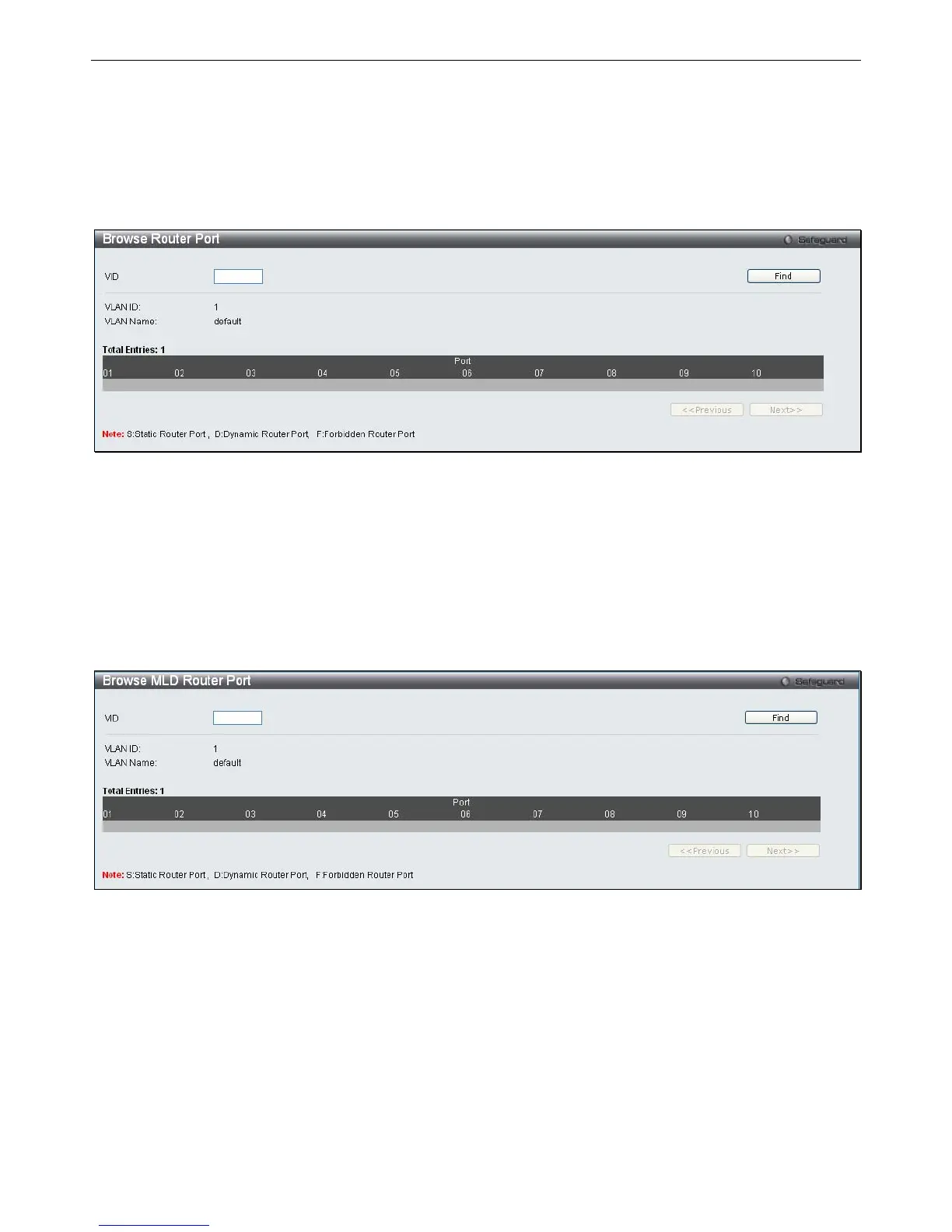

Figure 7 - 30. Browse Router Port window
Enter a VID (VLAN ID) in the field at the top of the window and click the Find button.
Browse MLD Router Port
Users can display which of the Switch’s ports are currently configured as router ports in IPv6. A router port configured by a user
(using the console or Web-based management interfaces) is displayed as a static router port, designated by S. A router port that is
dynamically configured by the Switch is designated by D, while a Forbidden port is designated by F..
To view the following window, click Monitoring > Browse MLD Router Port:
Figure 7 - 31. Browse MLD Router Port window
Enter a VID (VLAN ID) in the field at the top of the window and click the Find button.
