3-POINT HITCH CONTROL POSITION CONTROL

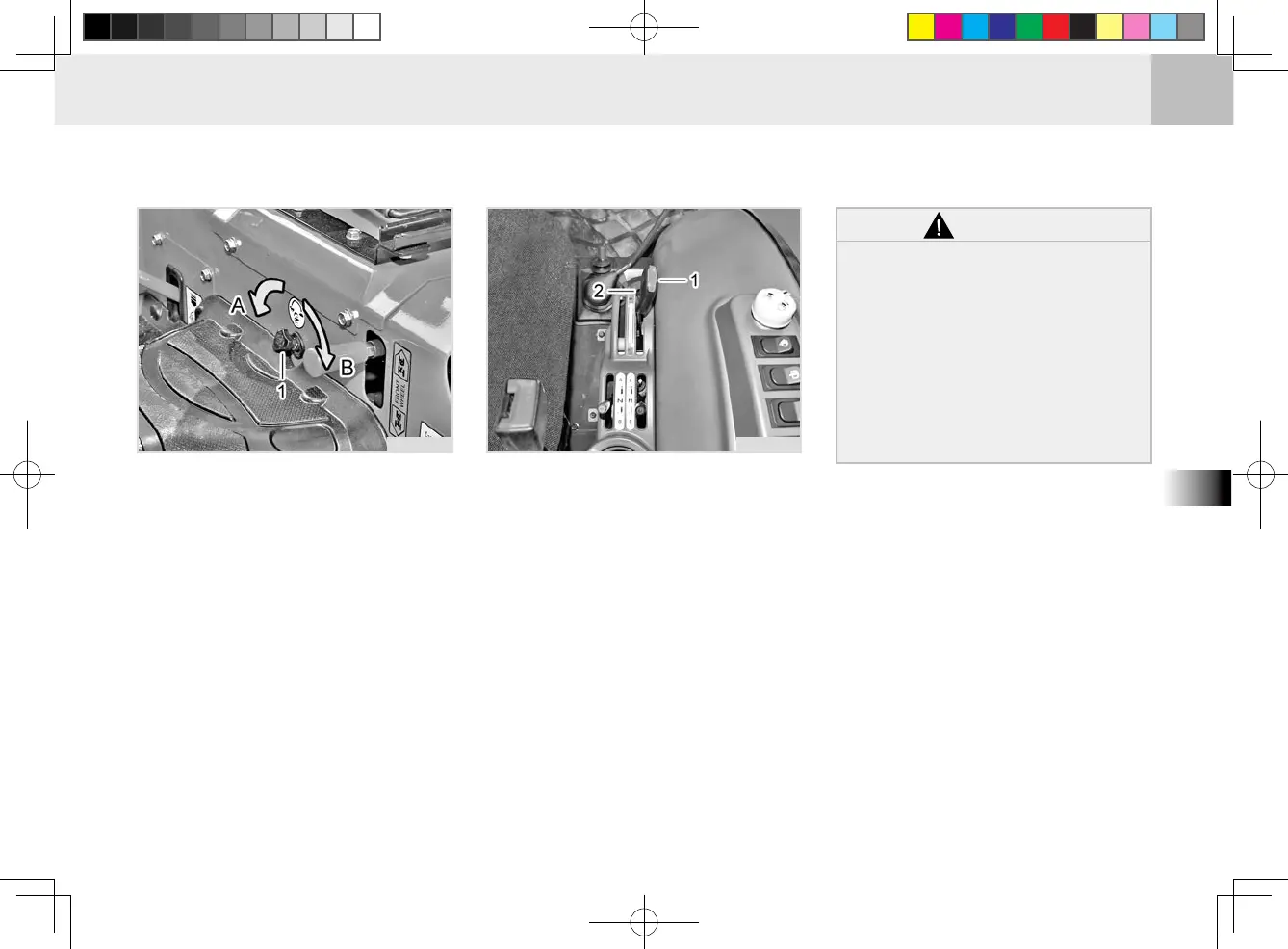

(1) Lowering Speed Control Lever
(A) High Speed (B) Low Speed
6. The lowering speed of the lower
link is proportional to the applied
weight but can be controlled by
adjusting the draining passage of
thehydraulicuid.(See“Lowering
speed control valve of lifting arm”
on Page 4-29)
tC2O427b
(1) Position Control Lever (2) Lock Bolt
7. The lower limit of the implement’
s height can be set by limiting the
movement of the control lever by
the lock bolt.
t22O513A
If trying to lift an object with
e x c e s s i v e w e i g h t b y t h e
3-point hitch while the tractor
is not equipped with proper
front suit case weights, the
front wheels may be lifted
instead, leading to roll over.
Make sure to follow the speci-
cations for use.
•
WARNING
