CK2610CHSE / CK3510(H,C,CH)SE / CK4010(H,C,CH)SE
INSTRUMENT CLUSTER

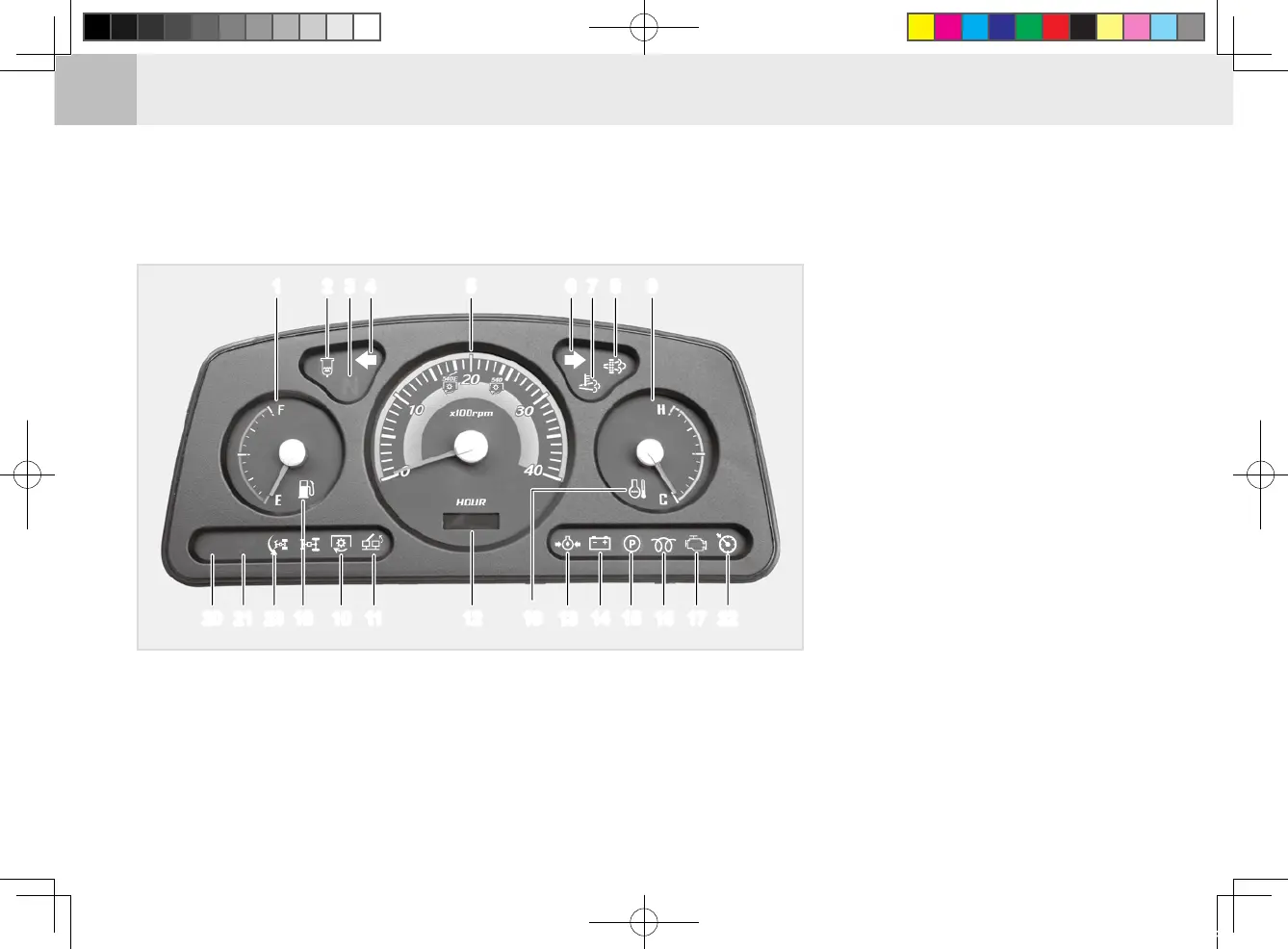

INSTRUMENT CLUSTER FEATURES
Symbols on the instrument panel come on when the key switch is turned to the “ON” position.
20 21 2213
1 92 3 4
10 11 12 13 14 15 17
5 6 7 81 92 3 4
1020 21 2323 2218 1911 12 13 14 15 17
5 6 7 8
1618 19 16
CEL
N
CRUISE
PTO
LINKED
PEDAL
tC2O415e
(1) Fuel Gauge
(2) Water-in-fuel Warning Lamp
(3) Neutral Indicator
(4) Turn Signal Lamp (LH)
(5) Tachometer
(6) Turn Signal Lamp (RH)
(7) DPF Regeneration Underway Lamp
(8) DPF Regeneration Warning Lamp
(9) Coolant Temperature Gauge
(10) PTO Indicator
(11) Single Brake Light
(12) Hourmeter
(13) Engine Oil Pressure Warning Lamp
(14) Battery Charge Warning Lamp
(15) Parking Brake Warning Lamp
(16) Preheat Indicator
(17) Engine Check Lamp
(18) Fuel Level Warning Lamp
(19) Coolant Temperature Warning Lamp
(20) Linked Pedal Lamp (If Equipped)
(21) Cruise Pto Lamp (If Applicable)
(22) HST Cruise Lamp (If Equipped)
(23) Quick Turn Lamp (If Applicable)
