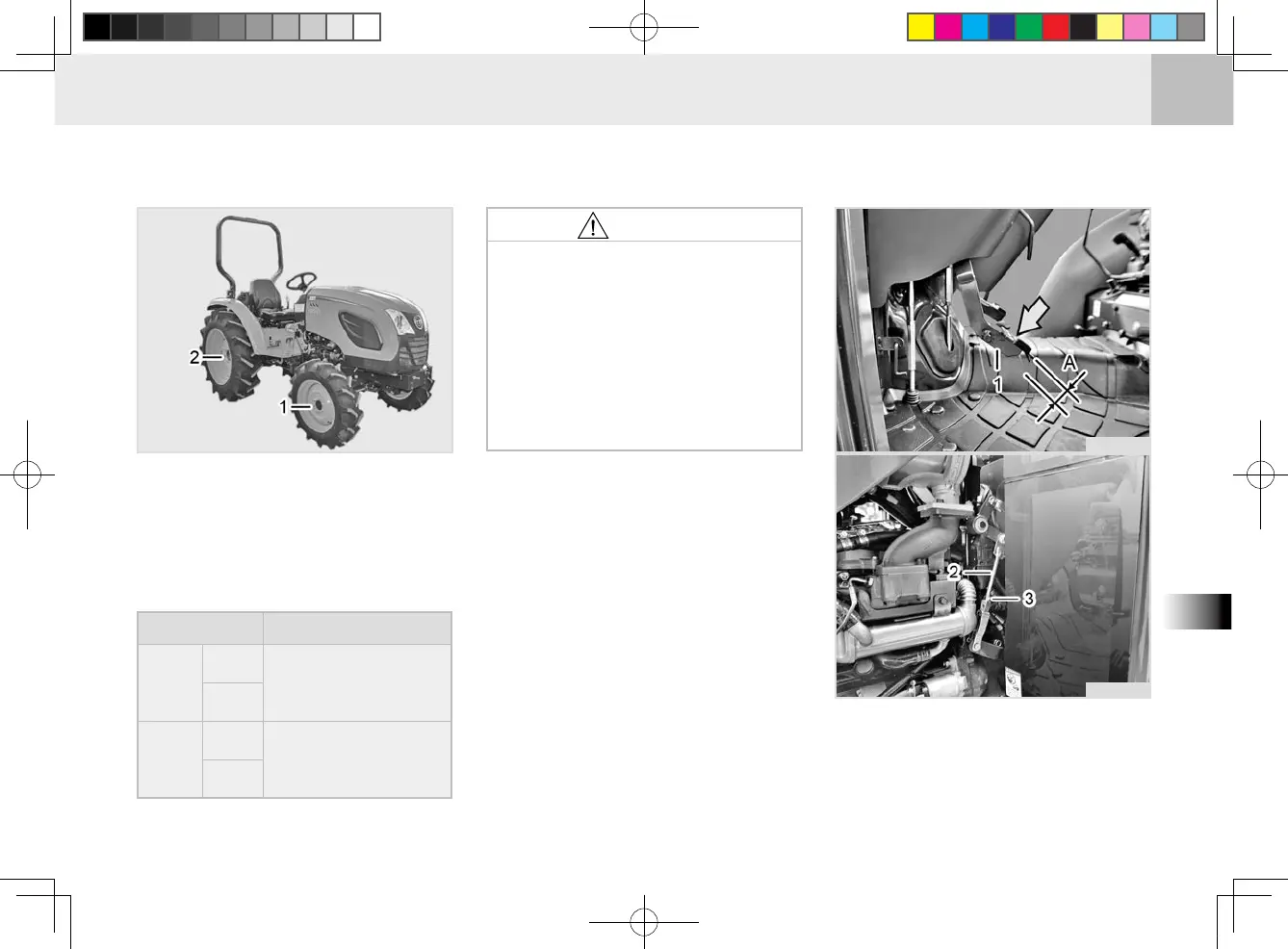

(1) Brake Pedal (2) Clutch Rod
(3) Lock Nut
(A) Free Play
ADJUSTING CLUTCH PEDAL (R)
Item Tightening torque
Front
wheel
Bolt
7.9~9.2 kgf·m
57~67 lbf.ft
77~90 N.m
Nut
Rear
wheel
Bolt
20~23 kgf·m
144~166 lbf.ft
196~226 N.m
Nut
tC2O721A
CHECKING WHEEL BOLT/NUT TORQUE (Q)
(1) Front Wheel Bolt/nut
(2) Rear Wheel Bolt/nut
Check wheel bolts and nuts regu-
larly especially when new. If they are
loose, tighten them as follows.
To avoid injury:
Never operate tractor with a
loose rim, wheel, or axle.
Any time bolts and nuts are
loosened, retighten to speci-
ed torque.
Check all bolts and nuts fre-
quently and keep them tight.
•
•
•
CAUTION
t22O703A
t22O703A
