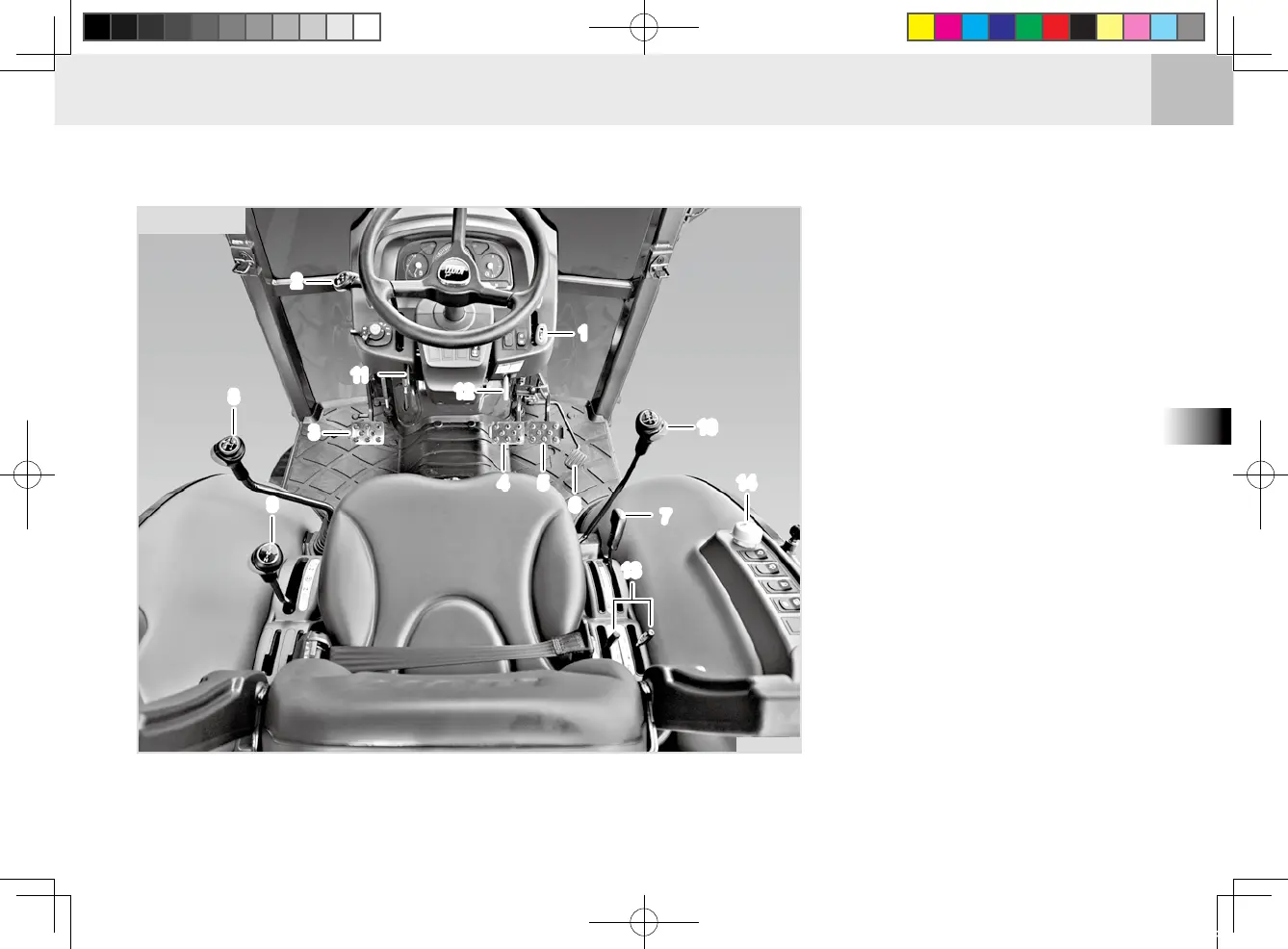

FUNCTION DESCRIPTION AND OPERATING TIPS
CONTROLS
(1) Hand Throttle Lever
(2) Shuttle Lever
(3) Clutch Pedal
(4) Brake Pedal (LH)
(5) Brake Pedal (RH)
(6) Accelerator Pedal
(7) Position Control Lever
(8) Main Shift Lever
(9) Range Shift Lever
(10) Joystick Lever
(11) Tilt Lever
(12) Parking Brake Pedal
(13) Double Acting Lever
(14) PTO Main Switch
2
3
7
1
4 5
6
8
14
9
10
13
11
12
2
3
7
1
4 5
6
8
14
9
10
13
11
12
