Daedong CK2610CHSE - Adjustment of TOP Link; Adjustment of Stabilizer; Dismounting the Implement

6
-
6
CK2610CHSE / CK3510(H,C,CH)SE / CK4010(H,C,CH)SE

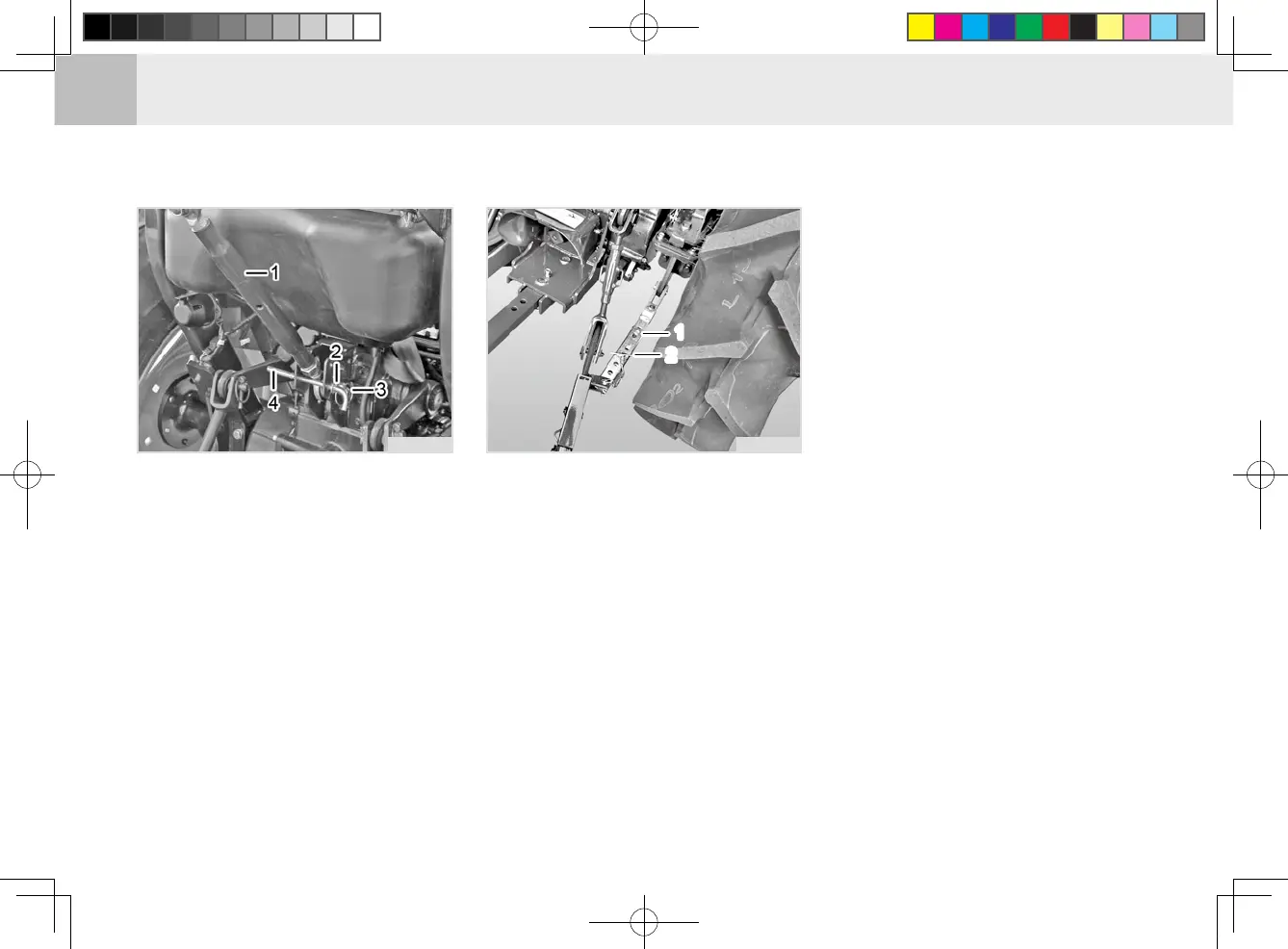

(1) Top Link (2) Set Pin
(3) Lynch Pin (4) Top Link Handle
1. Install the top link to the desired
hole, install the set pin and lynch
pin securely.
2. Tighten the lock nut on the top link
securely after adjusting top link
length.
1. Adjust the check chain to control
horizontal sway of the implement.
It is also used to set the implement
on the back of the tractor in center.
2. Loosen the lock nut To adjust the
check chain, pull out the turn buck-
le and adjust it until the desired
transverse moving distance is ob-
tained.
ADJUSTMENT OF TOP LINK ADJUSTMENT OF STABILIZER
(1) Telescopic Stabilizers (2) Pin
DISMOUNTING THE IMPLEMENT
1. Park the tractor with the implement
on the level ground and lower the
implement all the way down. Install
the implement support as needed.
2. Disconnect the top link and lower
links from the implement by re-
moving the pins.
3. Be sure to insert the set pins, lynch
pins and snap pins back to the
implement securely to keep those
safe.
4. Stop the engine and move the re-
mote hydraulic control lever back
and forth to release the hydraulic
pressure in the system before dis-
connecting hydraulic couplers.
5. Put the top link back to its hook.
Hold both lower links together with
a rubber band. Otherwise, the low-
er links can contact with rear tires
and cause damage to the lower
links and tires while driving.
TC2O604A
22
111
T22O608A
