5. First install the left lower link to the
implement pin, insert the lynch pin
into the hole, and turn the ring to
hold the implement pin securely.
6. Install the right lower link to the
implement pin, insert the lynch pin
into the hole, and turn the ring to
hold the implement pin securely.
(1) Check Link (2) Lift Rod (RH)
(3) Lower Link (4) Implement Pin
(5) Lynch Pin
H61O615A
REMOVAL AND INSTALLATION OF 3-POINT HITCH IMPLEMENT
(INCLUDING CONNECTION OF UNIVERSAL JOINT)
1. Pl ace im plem ent on the le vel
ground.
2. Drive the tractor backward to move
as close as possible to an imple-
ment. (approx. 5 cm)
Then, adjust the height of the low-
er link to be parallel to the pins of
the implement.
3. Put all the shift levers in the neu-
tral position.

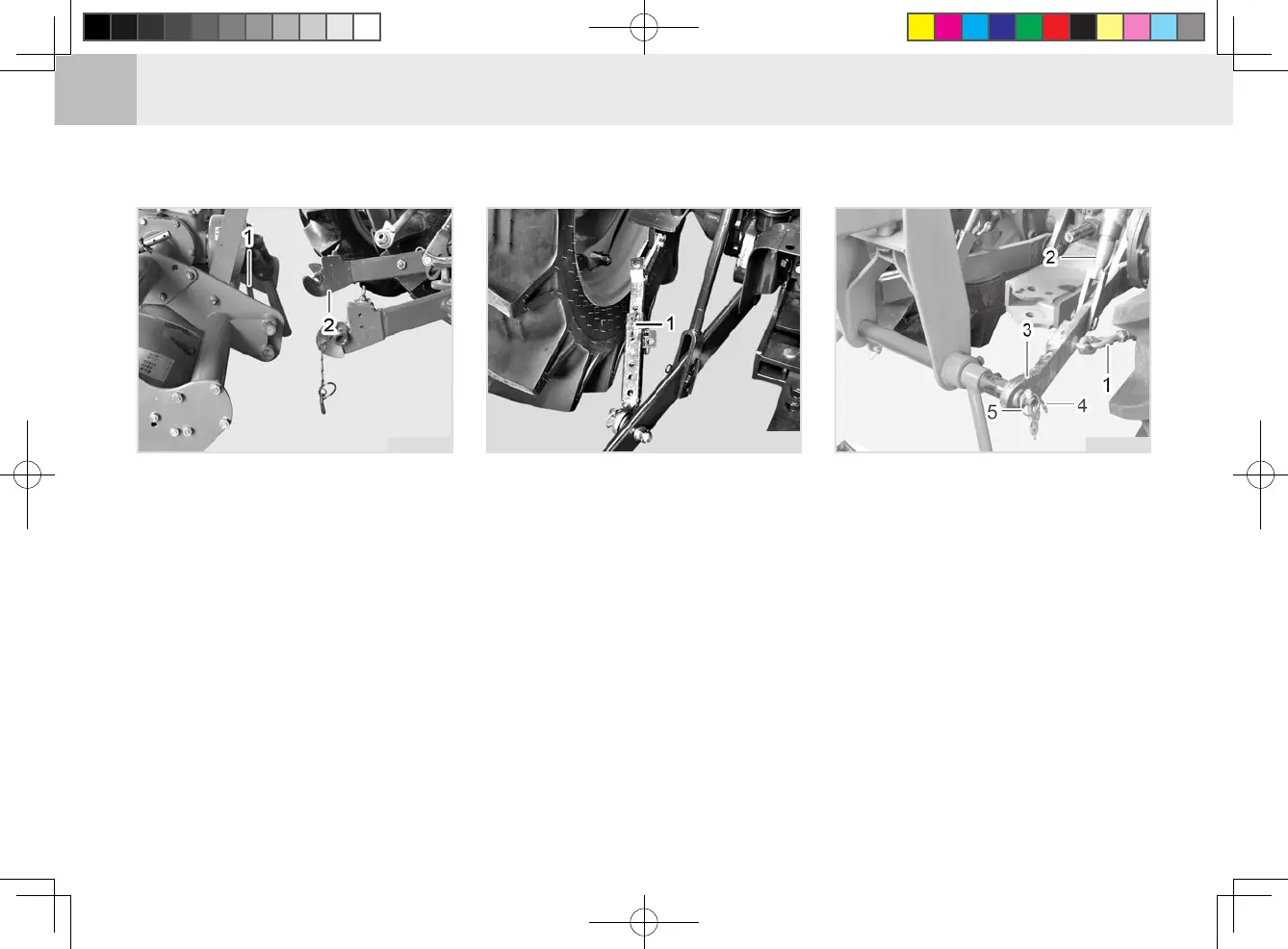

(1) Implement Support (2) Lower Link
4. Remove the pins on either side of
the check link.
A40O613A
(1) Telescopic Stabilizers Pin
Te1O619A
