7. Install the top link to the top link
hole of the implement. Loosen the
lock nuts of the top link and turn
the top link to adjust the length of
it as needed. Align the pin hole for
the top link with the top link hole
on the implement to insert the set
pin. Insert the snap pin into the set
pin hole securely to hold the set
pin.

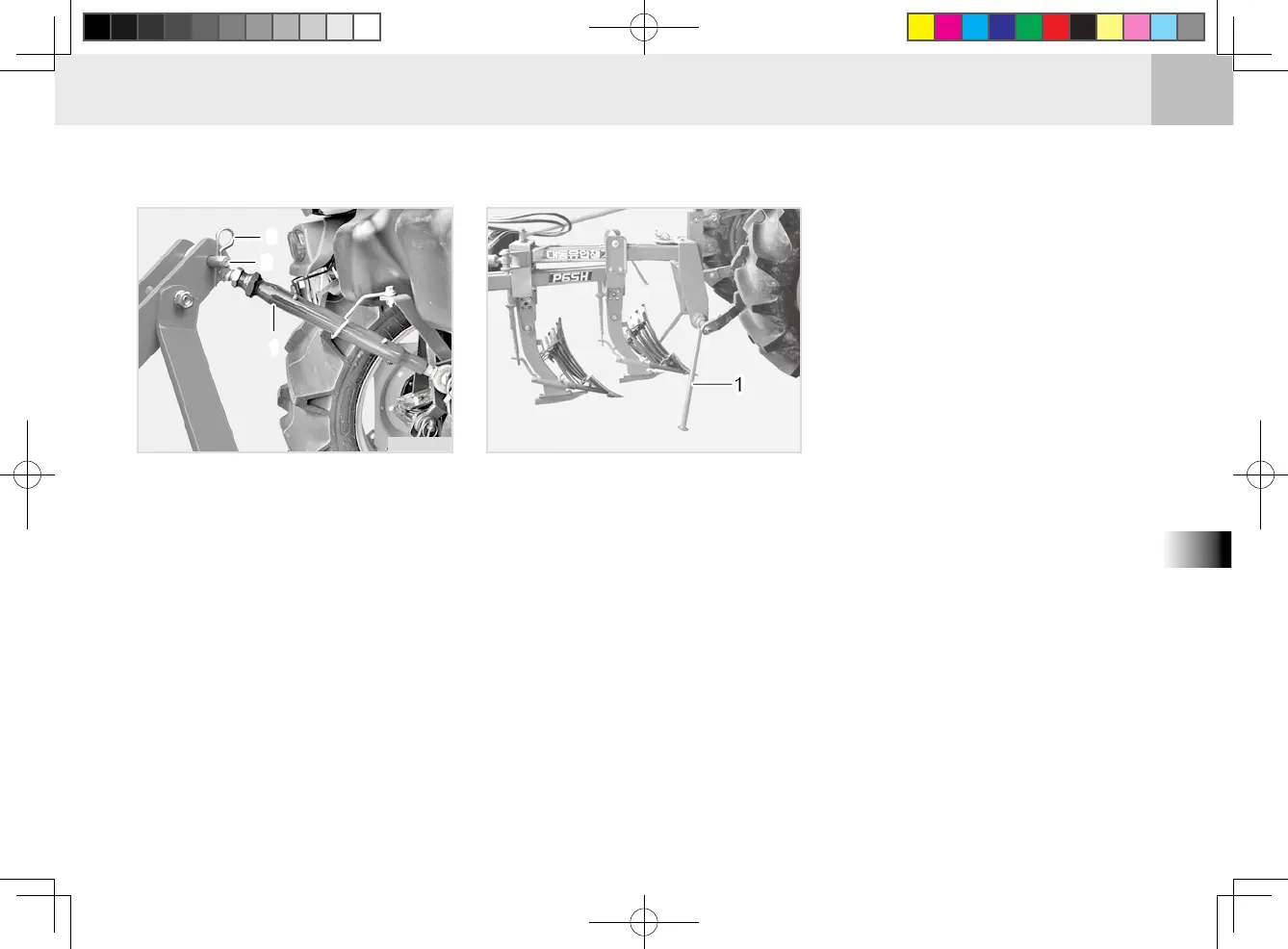

(1) Top Link (2) Lock Pin
(3) Snap Pin
(1) Implement Support
8. Raise up the implement with the
position control lever of the tractor.
Remove the implement support as
needed. Align the implement by
adjusting the length of the check
chains on both sides. Tighten the
lock nuts on the check chain se-
curely.
9. Adjust the tip angle of implement
by adjusting the length of the top
link. Tighten the top link lock nuts
securely.
10. Adjust the balance of the imple-
ment by adjusting the length of
the lift rod (RH). Tighten the turn
buckle lock nut of the lift rod (RH)
securely afterward.
