(1) Adjusting Bolt
(A) Adjusting Belt Tension
(B) Pull

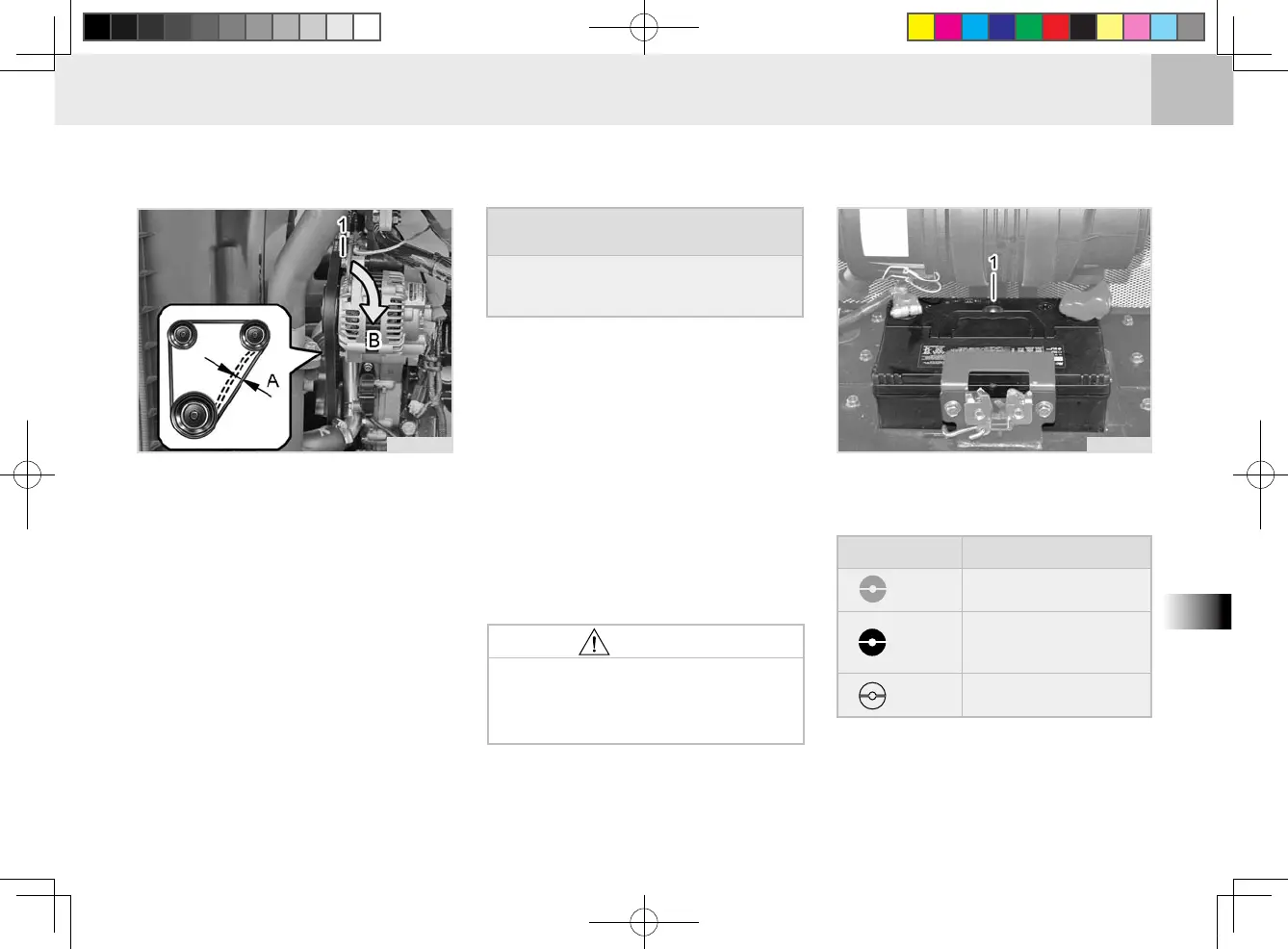

ADJUSTING FAN BELT TENSION (V)
In order to extend the fan belt’s life-
time, the tension of the belt should
be correctly adjusted if it slips. The
belt tension should be inspected
regularly according to the following
procedure:
1. Stop the engine and apply the
parking brake.
2. Open the hood.
3. In order to measure the belt ten-
sion, apply thumb pressure strong-
ly to the “A” location of belt.
td2O725A
(1) Battery
BATTERY (W)
PRECAUTIONS FOR HANDLING
Sight glass Battery condition
Blue
Battery normally
charged
Black
Battery discharged,
immediate charge
required
White Replace the battery
4. If the tension is incorrect, loosen
the alternator mounting bolts and,
using a lever placed between the
alternator and engine block, pull
the alternator out until the deec-
tion of the belt falls within accept-
able limits.
5. Be sure to retighten the alternator
mounting bolt and hinge bolt se-
curely after adjusting belt tension.
6. Replace the fan belt if it is dam-
aged, cracked or worn.
Belt deection for proper fan belt ten-
sion (A)
A deection of between
0.28 ~ 0.35 in. (7 ~ 9 mm) when the belt
is pressed in the middle of the span.
To avoid injury:
Be sure to stop the engine be-
fore checking belt tension.
•
CAUTION
tC2O726A
