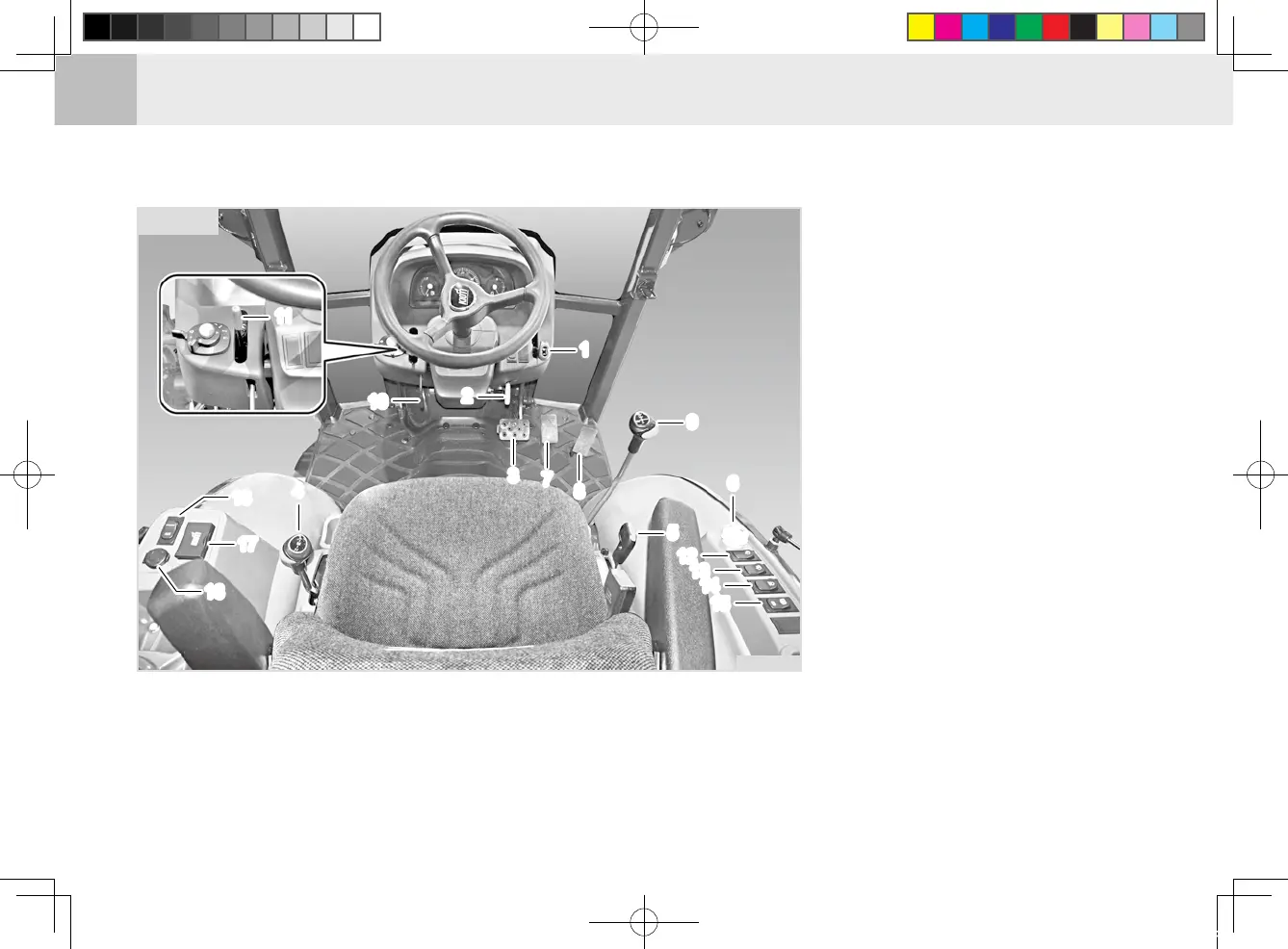

CK2610CHSE / CK3510(H,C,CH)SE / CK4010(H,C,CH)SE
(1) Hand throttle lever
(2) Parking brake lever
(3) Brake pedal
(4) Range shift lever
(5) Position control lever
(6) PTO ON/OFF Switch
(7) HST reverse driving pedal
(8) HST forward driving pedal
(9) Joystick Lever
(10) Tilt lever
(11) Linked Pedal Lever
(12) Wiper Switch (Front)
(13) Wiper Switch (Rear)
(14) Work Light Switch
(15) Defogger Switch
(16) Power Socket
(17) AUX Switch & USB Charge
(18) Stereo/AUX Switch
