CK2610CHSE / CK3510(H,C,CH)SE / CK4010(H,C,CH)SE

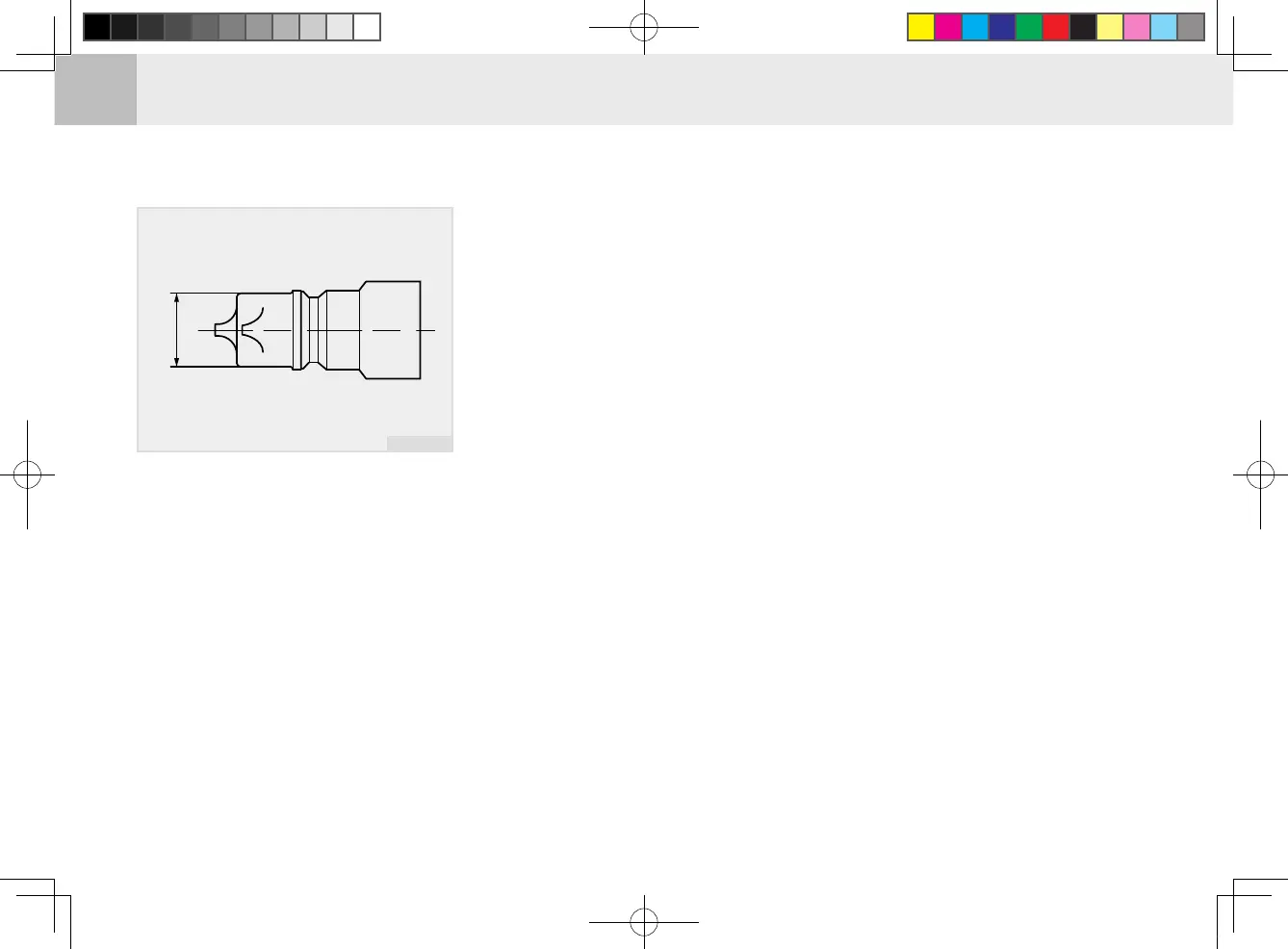

(A) Diameter
A
tC2O525A
The hose unions used must comply
with ISO standards.
Dimension (A) must be between
0.806 and 0.809 in. (20.48 and 20.56
mm).
PT1/2 COUPLER SOCKET (IMPLEMENT)
CONNECTING AND DISCONNECTING IMPLEMENT
CONNECTION
1. Make sure to stop the engine be
-
fore connecting it.
2. Move the double acting valve le-
ver forward and backward for 4
to 5 times to release the pressure
in the hydraulic line of the tractor.
Otherwise, it is hard to connect the
couplers, and hydraulic fluid can
be sprayed from the line and get
in to your eyes while connecting
them.
3. Re move an y f ore ign m ate ria l
around the male and female cou-
plers. If foreign material enters the
hydraulic components, it can lead
to malfunction of the system.
4. Open the dust-proof cover of the
female coupler of the tractor and
insert the male coupler of the im-
plement. A clicking sound is heard
when the couplers are engaged.
5. Pull the hydraulic hose of the im-
plement to check that the couplers
are properly connected.
6. Start the engine and check the op-
erating status and leakage.
DISCONNECTION
1. Make sure to stop the engine be
-
fore disconnecting it.
2. Release any residual pressure in
the hydraulic hoses of the imple-
ment and tractor by operating the
double acting valve lever 4 to 5
times.
3. Remove any foreign material around
the couplers.
4. L o w er t he im p l e men t on th e
ground or remove any external
load applied to the implement. Dis-
connecting hoses while outer load
is applied to the implement is very
difcult and dangerous due to the
pressurizeduidinthehose.
