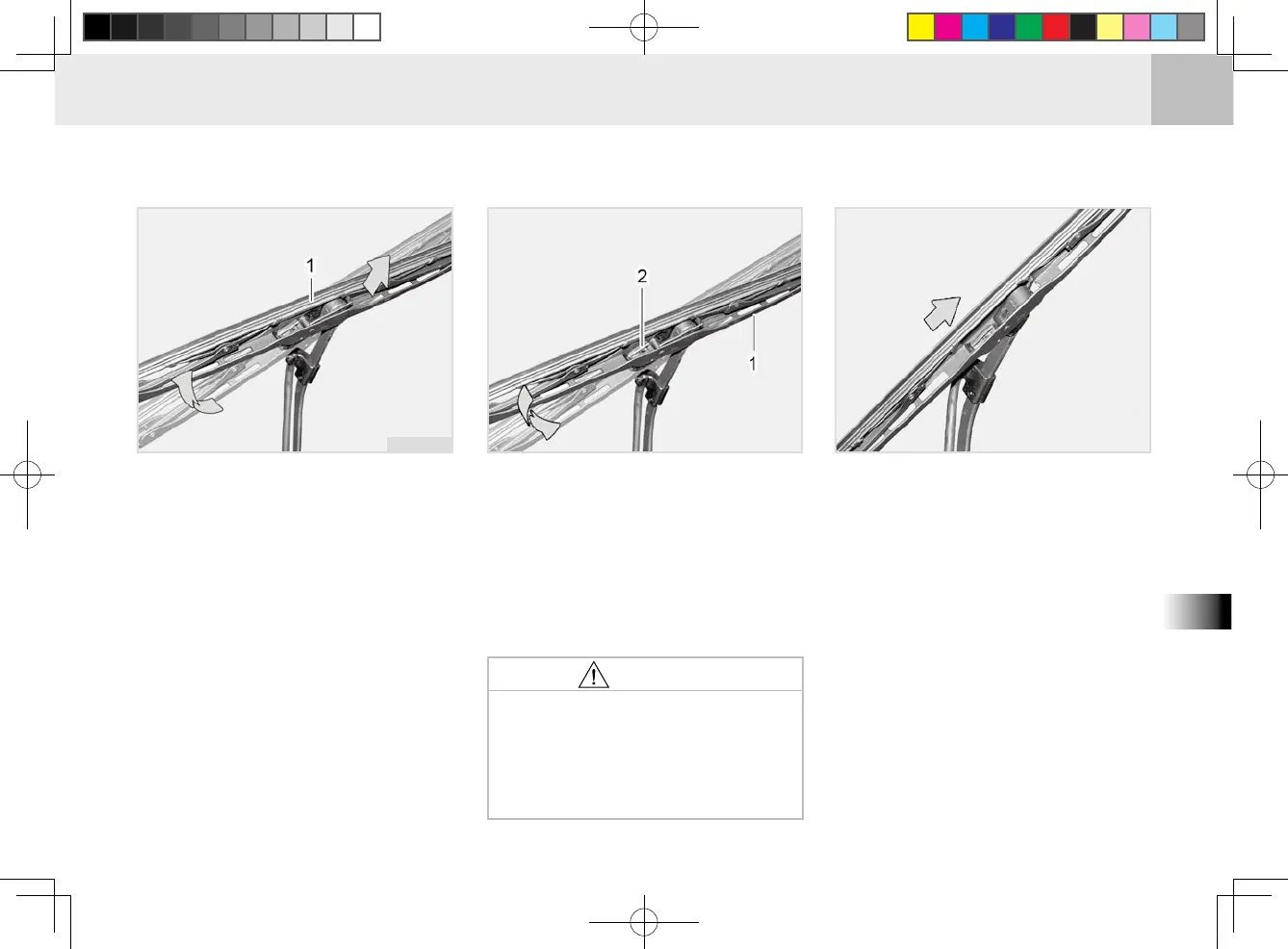

(1) Wiper Blade
H11O650A
3. Lower the blade and pull out the
blade by moving it in the shape of
"U". (Arrow direction in the gure)
(1) Wiper Arm (2) Fixing Lever
H11O651A
4. Set a new wiper blade horizontal
so that the fixing lever is facing
down. Align the wiper arm with
the xing lever slot and lower the
blade.
When the wiper blade is sepa-
rated, the wiper arm should
not contact the windshield or
rear glass. The glass can be
damaged.
•
CAUTION
H11O652A
5. Lift the wiper blade to its end and
install it so that the xing lever is
engaged with the wiper arm. (A
clicking sound is heard)
To Next Page
