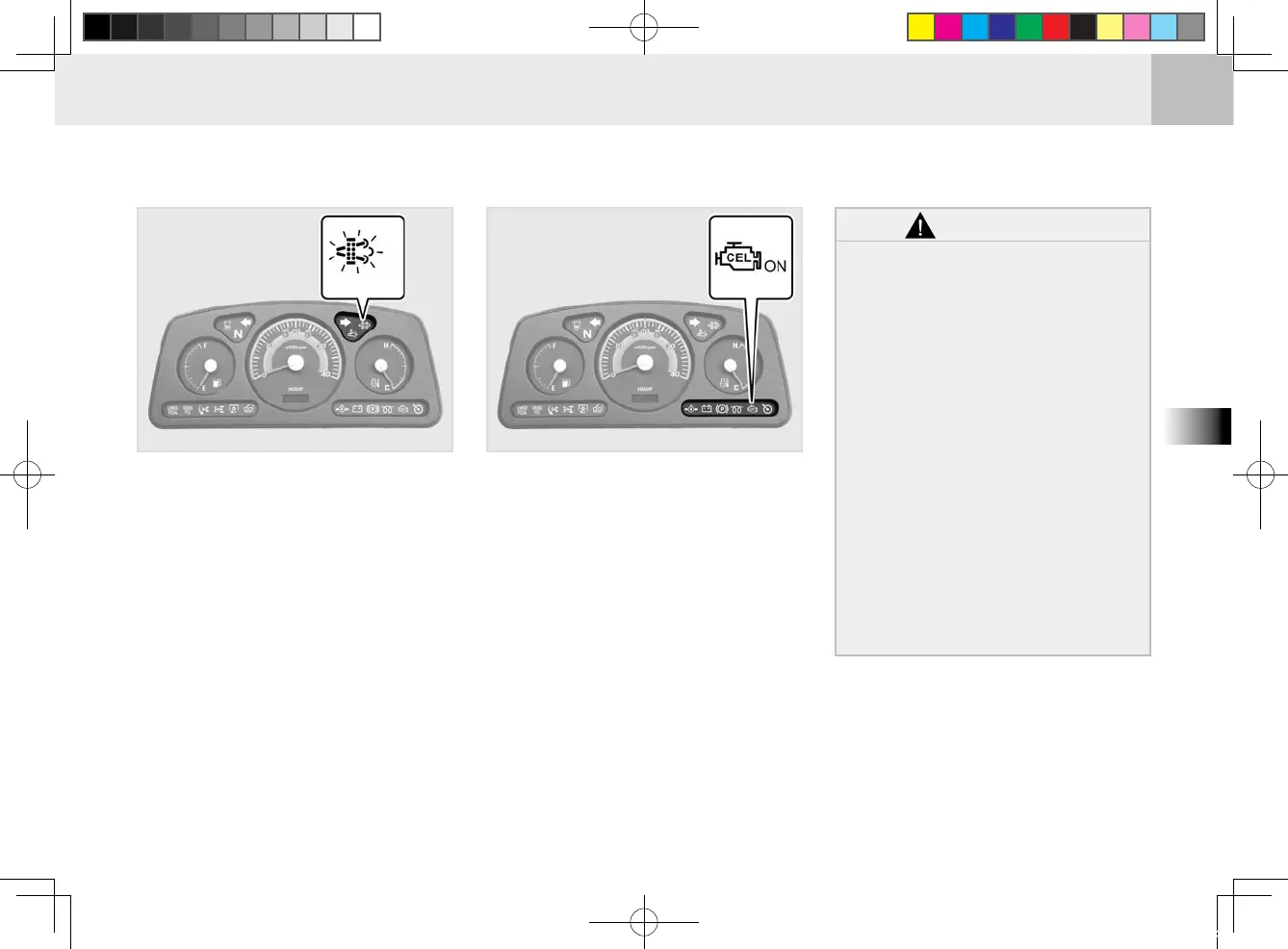

2. Stage 2 warning lamp for DPF
clogging
: DPF Soot Loading Level 160% -
200%
Manual regeneration required.
Engine RPM limit is activated
(below 2,200 rpm)
If the DPF is not regenerated in the
stage 1 warning state, the warning
lamp blinks. In this state, make sure
to perform DPF regeneration pro-
cess. (see page 4-11)
tC2O436C
3. Stage 3 warning lamp for DPF
clogging
: DPF Soot Loading Level 200%
or higher
Passive regeneration prohibited.
Engine RPM limit is activated
(below 2,200 rpm)
If the DPF is still not regenerated
even in this state, the Check engine
lamp comes on and the DPF needs
to be replaced.
WARNING
In the warning level 3 (CEL lamp
ON), both manual and auto-
matic regeneration processes
cannot be performed.
When the DPF warning lamp comes
on, make sure to perform the
manual regeneration as the active
regeneration cannot be performed.
Enabling condition for manual
regeneration
- Clutch pedal is not depressed.
- Brake pedal is depressed and
lock it.
- Engine rpm Idle state
If any of the above conditions is
not met during regeneration, the
regeneration mode is deactivated.
•
•
•
•
