DAELIM S-FIVE Service Manual

1-19
SERVICE INFORMATION

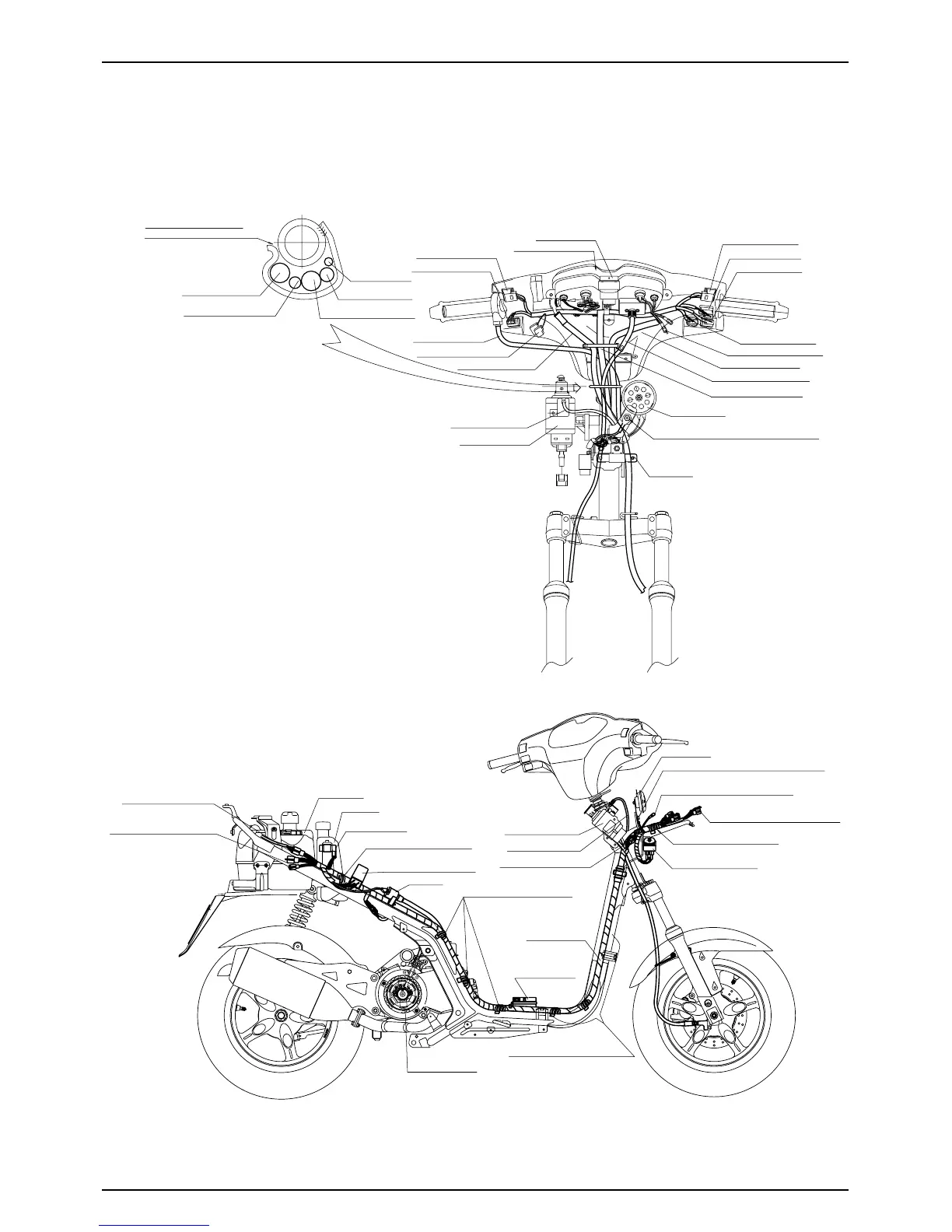

WIRING DIAGRAM
TUBELESS
TIRE
APPL.
KOREA
FUEL UNIT
CONNECTING COUPLER
R/L TAIL STOP RR. WINKER
AUTO BY STARTER 5W 6.7 Ω
OIL TANK
FUEL TANK
WIRE HARNESS
A.C.GENERATOR
THIS SECTION SHOULD NOT
BE PROJECTED THAN THE FRONT
OF THE FRAME AND NOT HAVE ANY
LOOSENESS.
BATTERY ASS'Y
ROLL THE HES. CLAMP
WITH THE CORD SECURELY.
I/G COIL
ROLL THE HES. CLAMP
WITH THE CORD SECURELY.
SEAT LOCK CABLE
COMBI LOCK S/W
CONNECTING COUPLER
COMBI LOCK S/W
REGULATE RECTIFIER
HEADLIGHT TIE-DOWN COUPLER
ROLL THE HES. CLAMP
WITH THE CORD SECURELY.
RESISTER CONNECTING COUPLER
HORN COMP
TIGHT AT THE SAME TIME WITH THE HORN.
FRAME EARTH
CDI UNIT ASS'Y
STARTER REALY ASS' Y
PRESS TO ATTACH THE
SEL. SECTION TO THE PIPE.
FR. BRAKE HOSE
SPEEDOMETER CORD
THROTTLE CABLE
LIGHTING S/W UNIT
WINKER REALY
DIMMER S/W UNIT
WINKER S/W UNIT
HORN S/W UNIT
HAZARD S/W UNIT
RR. STOP S/W CONNECTOR
SPEEDOMETER CABLE
SPEEDOMETER CORD
HORN COMP
FR. BRAKE HOSE
SEAT LOCK CABLE
COMBI LOCK S/W
RR.STOP S/W CONNECTOR
THROTTLE CABLE
FRAME EARTH
TIGHT AT THE SAME TIME WITH THE HORN.
RESISTOR
30W 5.6Ω
RR. BRAKE CABLE
SPEEDOMETER ASS'Y
STARTER S/W UNIT
RR. BRAKE CABLE
SPEEDOMETER CABLE

DAELIM S-FIVE Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Tires (Front)	120/70-12
Tires (Rear)	130/70-12
Engine Type	4-Stroke, Air-Cooled
Transmission	Automatic
Fuel Capacity	5.5 liters
