DAELIM S-FIVE Service Manual

1-20

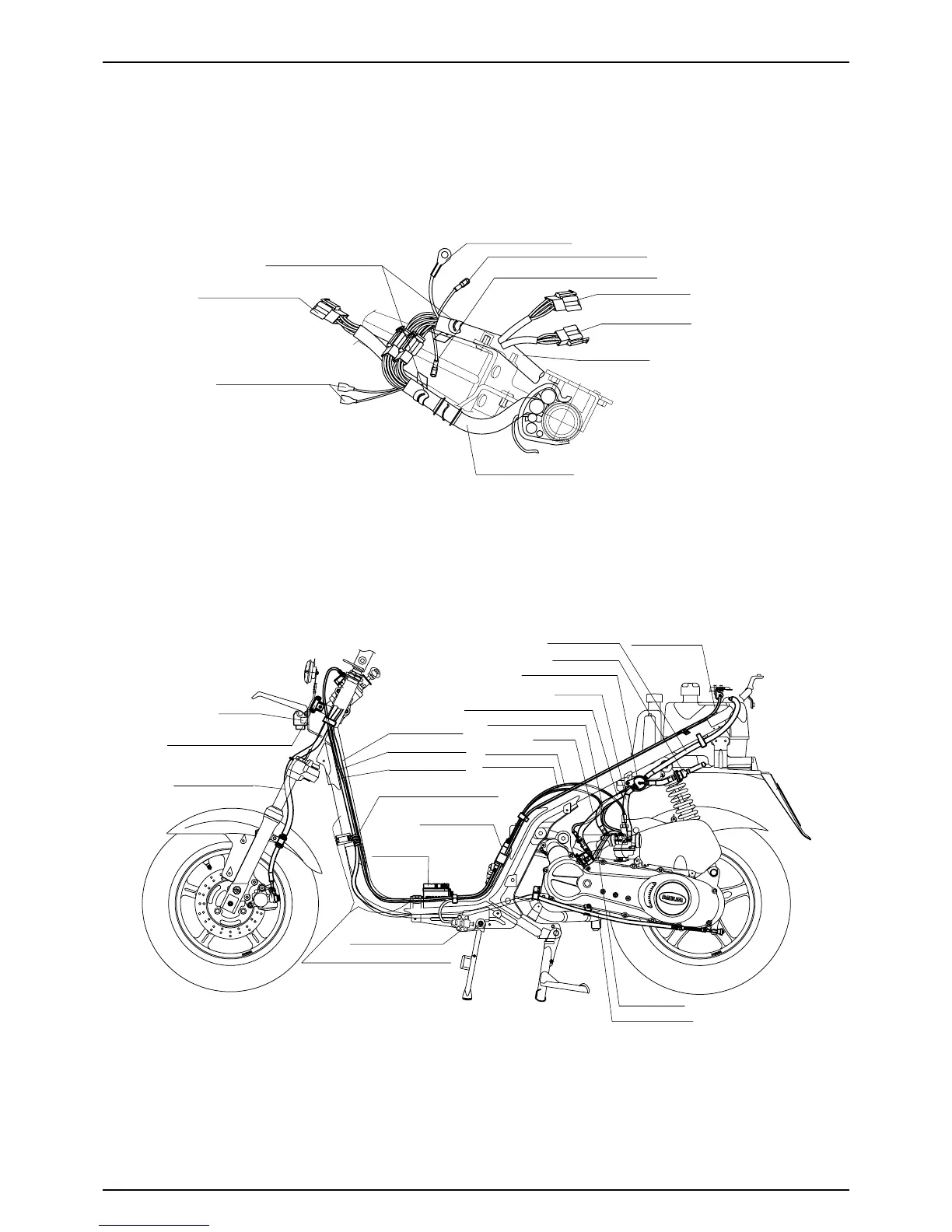

SERVICE INFORMATION
FRAME EARTH TERMINAL
HEADLIGHT
CONNECTING COUPLER
TIE-DOWN COUPLER
TIE-DOWN COUPLER
LIGHT COMP.
CONNECTING CONNECTOR
RESISTER CONNECTING CONNECTOR
AUTO BY STARTER S/W CORD 5W 6.7Ω
REGULATE RECTIFIER
COMBI LOCK S/W
WIRE HARNESS
SPEEDOMETER CORD
OIL PUMP CABLE
THROTTLE CABLE
AUTO BY STARTER CORD
THROTTLE CABLE
BATTERY ASS'Y
THIS SECTION SHOULD NOT
BE PROJECTED THAN THE FRONT
OF THE FRAME AND NOT HAVE ANY
LOOSENESS.
AUTO BY STARTER 5W 6.7Ω
FR. BRAKE HOSE
RESISTER
RR. BRAKE CABLE
ROLL THE HES. CLAMP
WITH THE CORD SECURELY.
ROLL THE HES. CLAMP
WITH THE CORD SECURELY.
SEAT LOCK CABLE
THROTTLE CABLE
RR. BRAKE CABLE
OIL PASS TUBE
SEAT LOCK CABLE
OIL TUBE
FUEL VENT TUBE
FUEL STRAINER
FUEL AUTO COCK ASS'Y
NEGATIVE PRESSURE TUBE
FUEL TUBE
RESISTER
II
VV
30W 5.6Ω
SIDE STAND SWITCH

DAELIM S-FIVE Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Tires (Front)	120/70-12
Tires (Rear)	130/70-12
Engine Type	4-Stroke, Air-Cooled
Transmission	Automatic
Fuel Capacity	5.5 liters
