DAELIM S-FIVE Service Manual

1-21

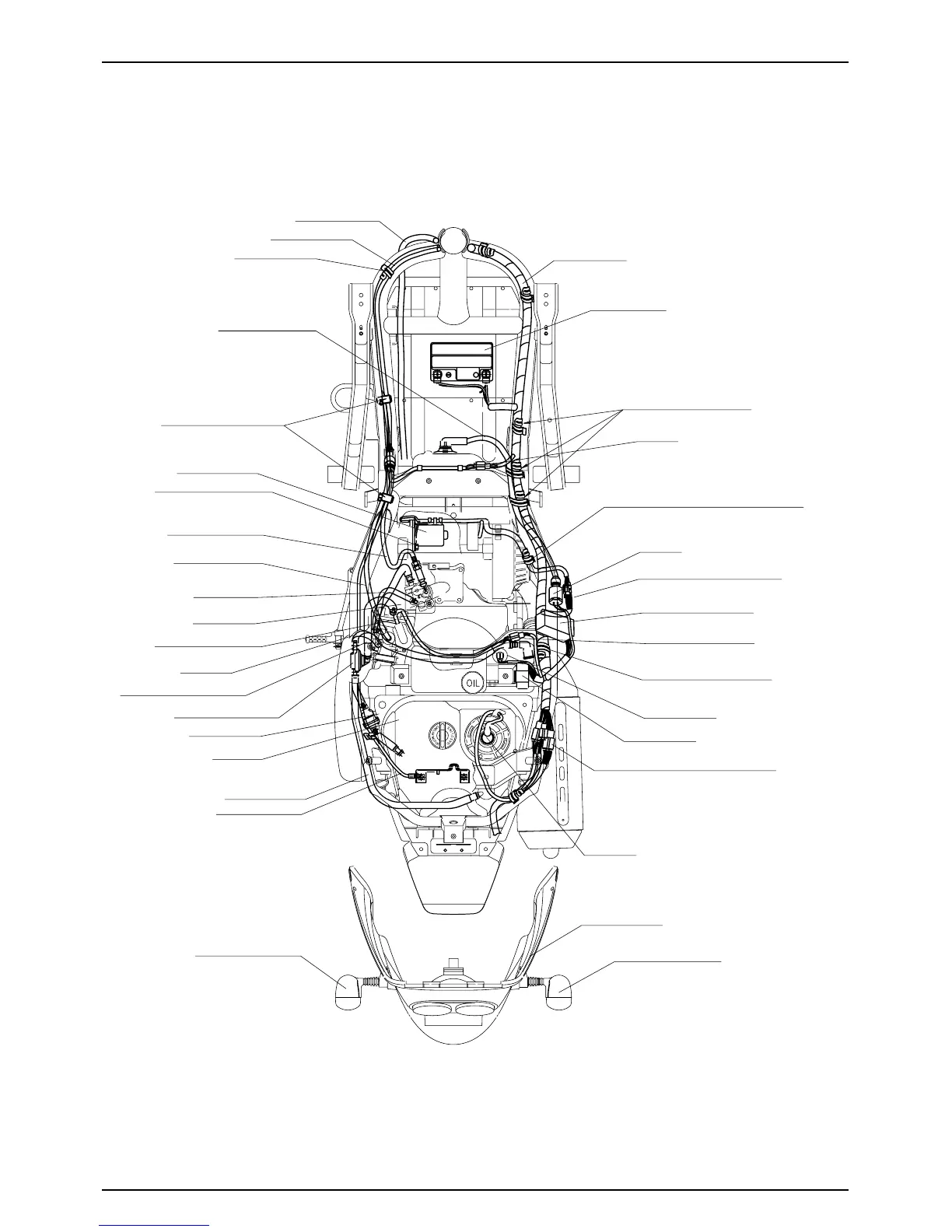

SERVICE INFORMATION
RR. BRAKE CABLE
THROTTLE CABLE
SEAT LOCK CABLE
HIGH TENSION CORD
STARTER MOTOR
OIL PUMP CABLE
THROTTLE CABLE
OIL PASS TUBE
OIL TUBE
AUTO BY STARTER CORD
FUEL TUBE
NEGATIVE PRESSURE TUBE
FUEL AUTO COCK ASS'Y
FUEL STRAINER
FUEL TANK
FUEL VENT TUBE
SEAT LOCK CABLE
LH. RR. WINKER LIGHT
RH. RR. WINKER LIGHT
TAIL LIGHT ASS'Y
FUEL UNIT
TAIL LIGHT CONNECTING CONNECTOR
CDI.UNIT ASS'Y
OIL LEVEL S/W
AUTO BY STARTER
CONNECTING COUPLER
ACG. CONNECTING COUPLER
ACG. CORD CLAMP
ROLL THE WHITE TAPE AREA OF ACG CORD
CLAMP IN THE POSITION OF THE CLAMP FIRMLY.
I/G COIL
I/G COIL
BATTERY ASS'Y
WIRE HARNESS
STARTER REALY ASS'Y
ENGINE EARTH
TIGHT AT THE SAME TIME
WITH THE STARTING MOTOR.
PRESS TO ATTACH THE
SEL. SECTION TO THE PIPE.
ROLL THE HES. CLAMP
WITH THE CORD SECURELY.
ROLL THE HES. CLAMP
WITH THE CORD SECURELY.

DAELIM S-FIVE Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Tires (Front)	120/70-12
Tires (Rear)	130/70-12
Engine Type	4-Stroke, Air-Cooled
Transmission	Automatic
Fuel Capacity	5.5 liters
