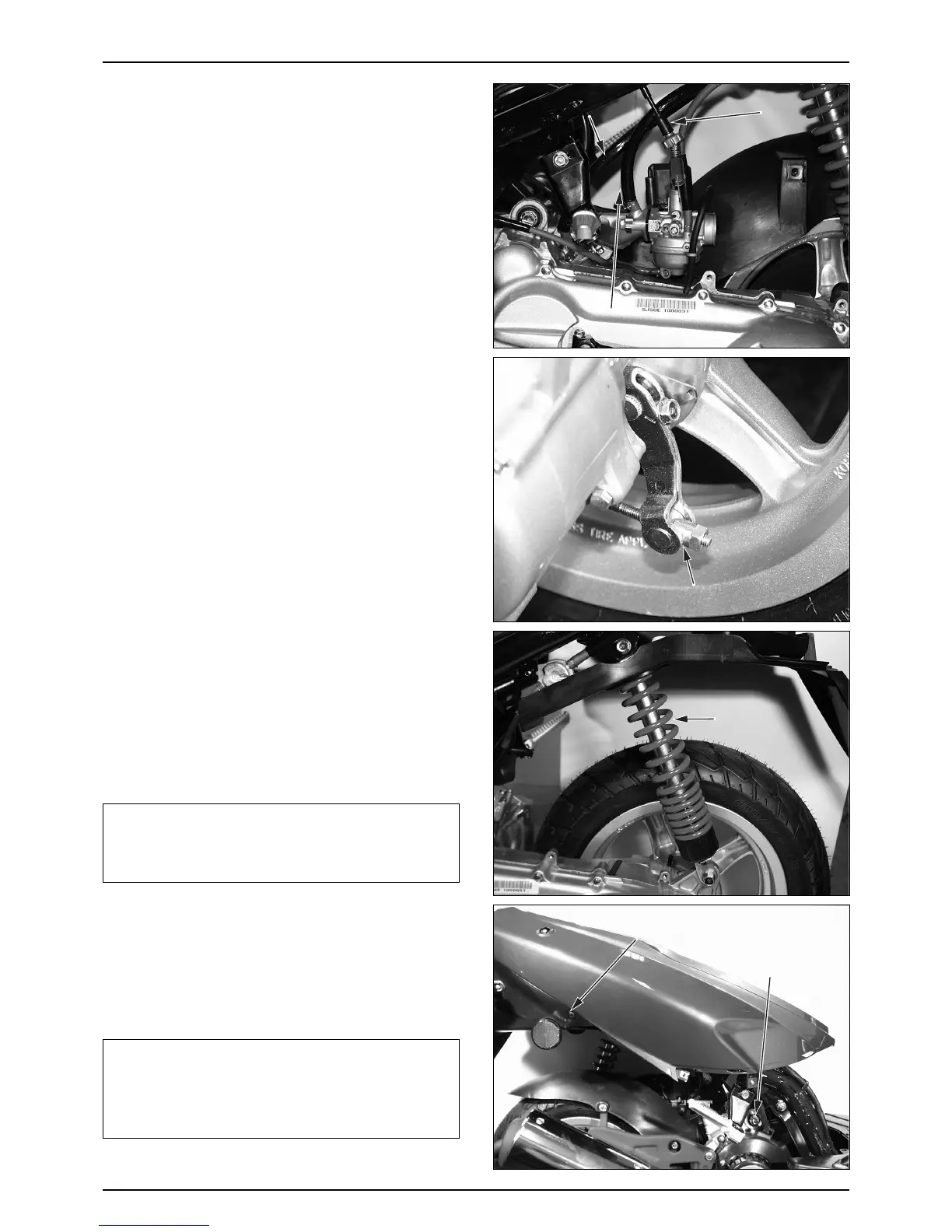

ENGINE REMOVAL/INSTALLATION
● Remove the luggage box. (⇨3-3 )
● Remove the plug maintenance cover. (⇨3-3 )
● Remove the center cover. (⇨3-3 )
● Disconnect the AC generater coupler. (⇨13-7 )
●Disconnect the carburetor auto bystarter coupler.
● Remove the spark plug cap.
● Remove the oil pump cable.
● Remove the oil tube connected to the oil pump.
● Remove the negative pressure tube connected to the
inlet pipe.
● Remove the fuel tube connected to the carburetor.
● Loosen the carburetor cap top, remove the throttle valve.
● Loosen the rear brake adjust nut, remove the brake arm
joint B and rear brake cable.
● Remove the bottom rear cushion under bolt.
● Loosen the engine hanger U-nut.
● Loosen the engine hanger flange bolt.
● Remove the engine. (with the muffler and rear wheel
attached)
NOTE
•Take action to prevent oil from leaking (Install the
clip in the oil tube)
•Take precautions not to damage the engine when
removing the engine from the chasis.
● Remove the muffler. (⇨3-7 )
● Remove the rear wheel. (⇨11-3 )
● Install in the reverse order of removal.
NOTE
•Take precautions not to damage wiring and cable.
•Take precautions not to damage the threded part of
bolts.
•Arrange the cable, tubes and wiring in the right
positions.
