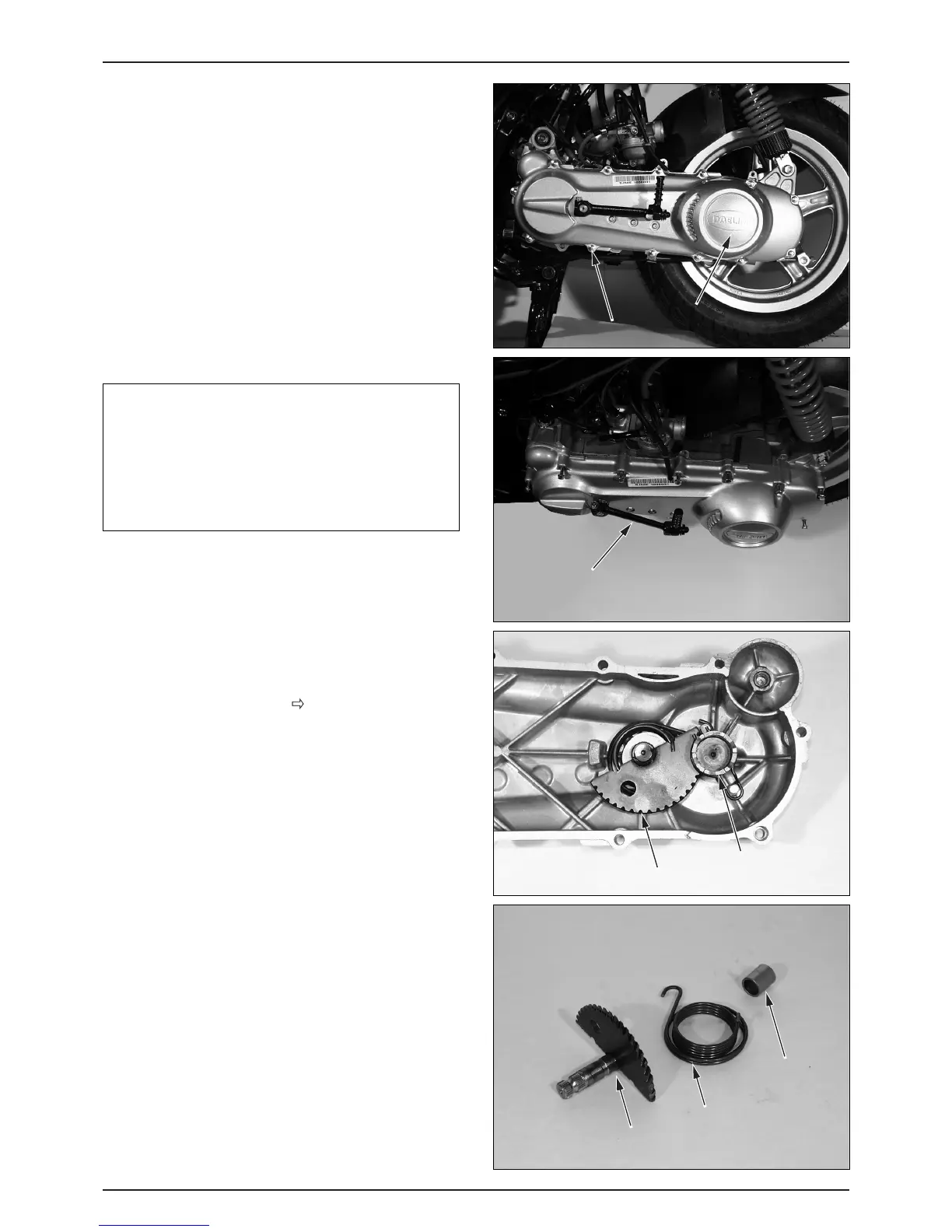

L. SIDE COVER REMOVAL
● Remove the 13 flange bolts securing L. side cover.
● Remove the rear brake cable clamp.
● Remove the L. side cover gasket.
● Remove the dowel pin.
● Install in the reverse order of removal.
NOTE
·Install the new gasket and dowel pin after removing
the gasket of the crankcase surface.
·Align the bolts to uniform the tightening location
before tightening then when you don’t know the bolt
length.
·Tighten the bolts diagonally with specified tightening
torque.
TORQUE : 1.0kgf
·
m
KICK STARTER
REMOVAL
● Remove the L. side cover. ( 7-2 )
● Remove the kick starter ratchet and the thrust washer
while rotating the kick starter arm.
● Loosen the flange bolt securing the kick starter arm,
remve the kick starter arm.
● Remove the 14mm external circlip.
● Remove the kick spindle washer.
● Remove the kick starter spindle.
● Remove the kick spindle spring, bush.
INSPECTION
● Inspect wear and damage of the kick starter spindle and
gear portion.
● Inspect damage to return spring.
● Inspect defects and damage of the kick starter spindle
bushing.
● Inspect wear and damage of the kick starter ratchet.
● Inspect damage to friction spring.
7-2
KICK STARTER/CONTINUOUSLY VARIABLE TRANSMISSION
