DAELIM S-FIVE Service Manual

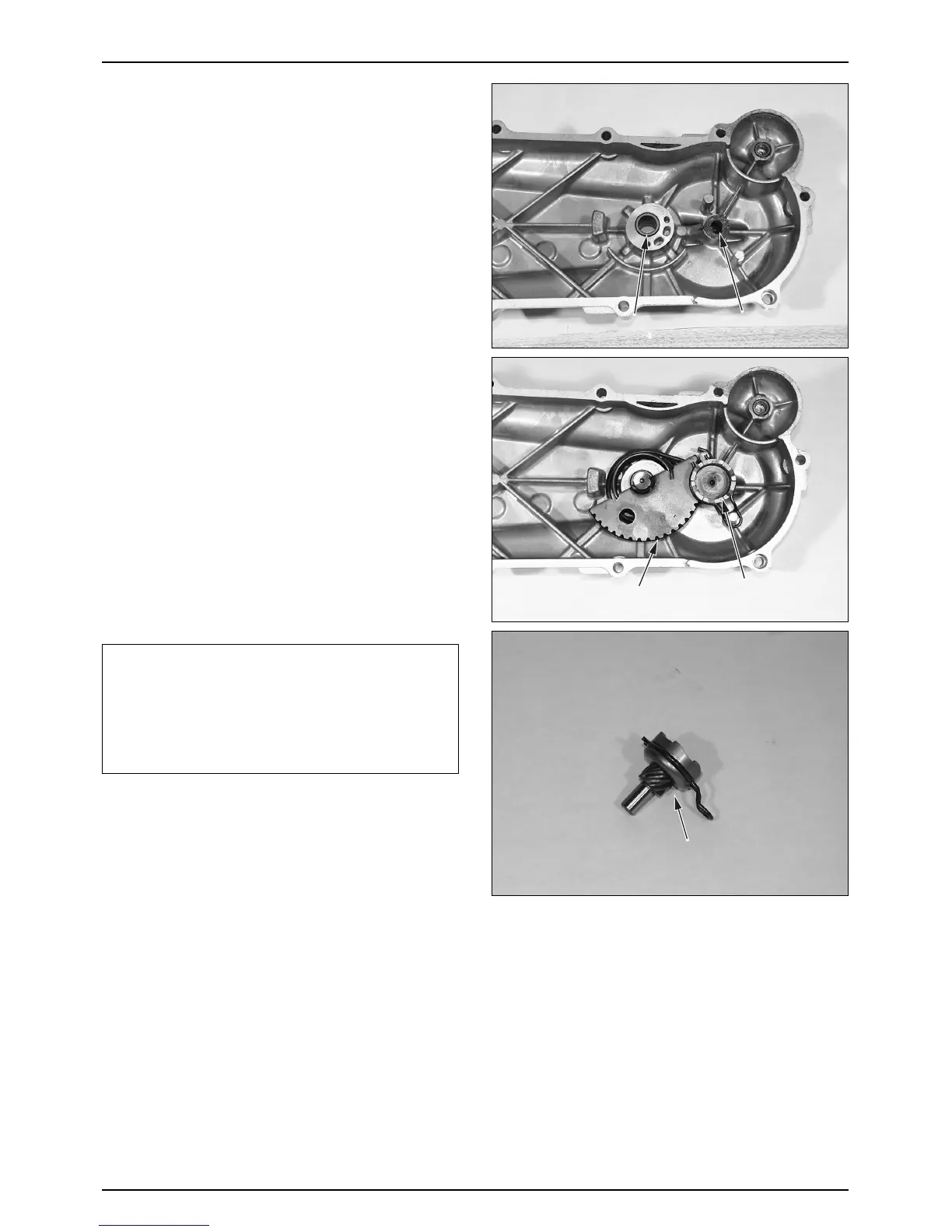

KICK STARTER INSTALLATION
● Install the kick spindle bush, spring in the L. side cover.
● Install the kick starter spindle in the L. side cover.
● Install the kick starter spindle washer.
● Install the 14mm external circlip in the L. side cover.
● Install the kick starter arm.
● Install the kick spindle springn in the groove of the L.
side cover.
● Install the thrust washer.
● Rotate the kick starter spindle using the kick starter
arm, draw the spindle to the L. side cover and assemble
the kick starter ratchet.
NOTE
·When installing the 14mm external circlip, keep
holding the spindle manually and install the circlip in
the groove correctly.
·Apply the grease to the kick starter ratchet groove
and gear.
·Check the kick starter ratchet and the kick starter
spindle for smooth operation after installation.
7-3
KICK STARTER/CONTINUOUSLY VARIABLE TRANSMISSION
THRUST WASHER
KICK SPINDLE BUSH
KICK STARTER SPINDLE
KICK DRIVEN GEAR
KICK DRIVEN GEAR

DAELIM S-FIVE Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Tires (Front)	120/70-12
Tires (Rear)	130/70-12
Engine Type	4-Stroke, Air-Cooled
Transmission	Automatic
Fuel Capacity	5.5 liters
