DAELIM S-FIVE Service Manual

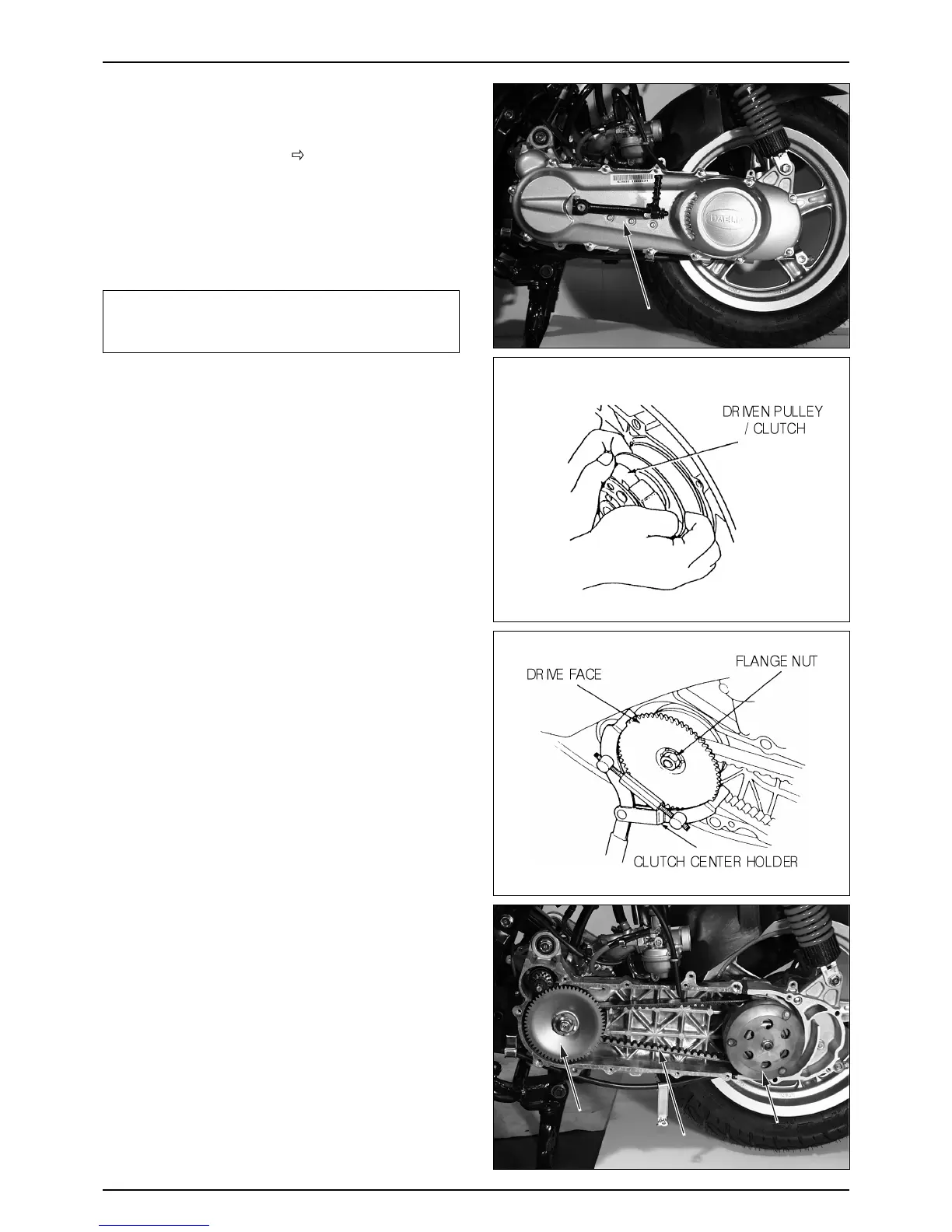

DRIVE BELT
REMOVAL
● Remove the L. side cover. ( 7-2 )
● Hold the clutch outer using the universal holder and
remove the nut.
● Remove the clutch outer.
TOOL: UNIVERSAL HOLDER
CAUTION
·Use the special tool when loosening the lock nut.
Holding the rear wheel or rear brake will damage the
final reduction system.
● Squeeze the drive belt into the pulley groove as shown
so that it slackens enough to remove the driven pulley
from the drive shaft.
● Loosen the drive face setting nut 12mm with the clutch
center holder.
TOOL: CLUTCH CENTER HOLDER
● Remove the driven pulley/ clutch with the drive belt in
place.
● Remove the drive belt from the driven pulley groove
and drive pulley groove.
7-4
KICK STARTER/CONTINUOUSLY VARIABLE TRANSMISSION
L. SIDE COVER
DRIVE FACE
DRIVE BELT
DRIVEN PULLEY

DAELIM S-FIVE Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Tires (Front)	120/70-12
Tires (Rear)	130/70-12
Engine Type	4-Stroke, Air-Cooled
Transmission	Automatic
Fuel Capacity	5.5 liters
