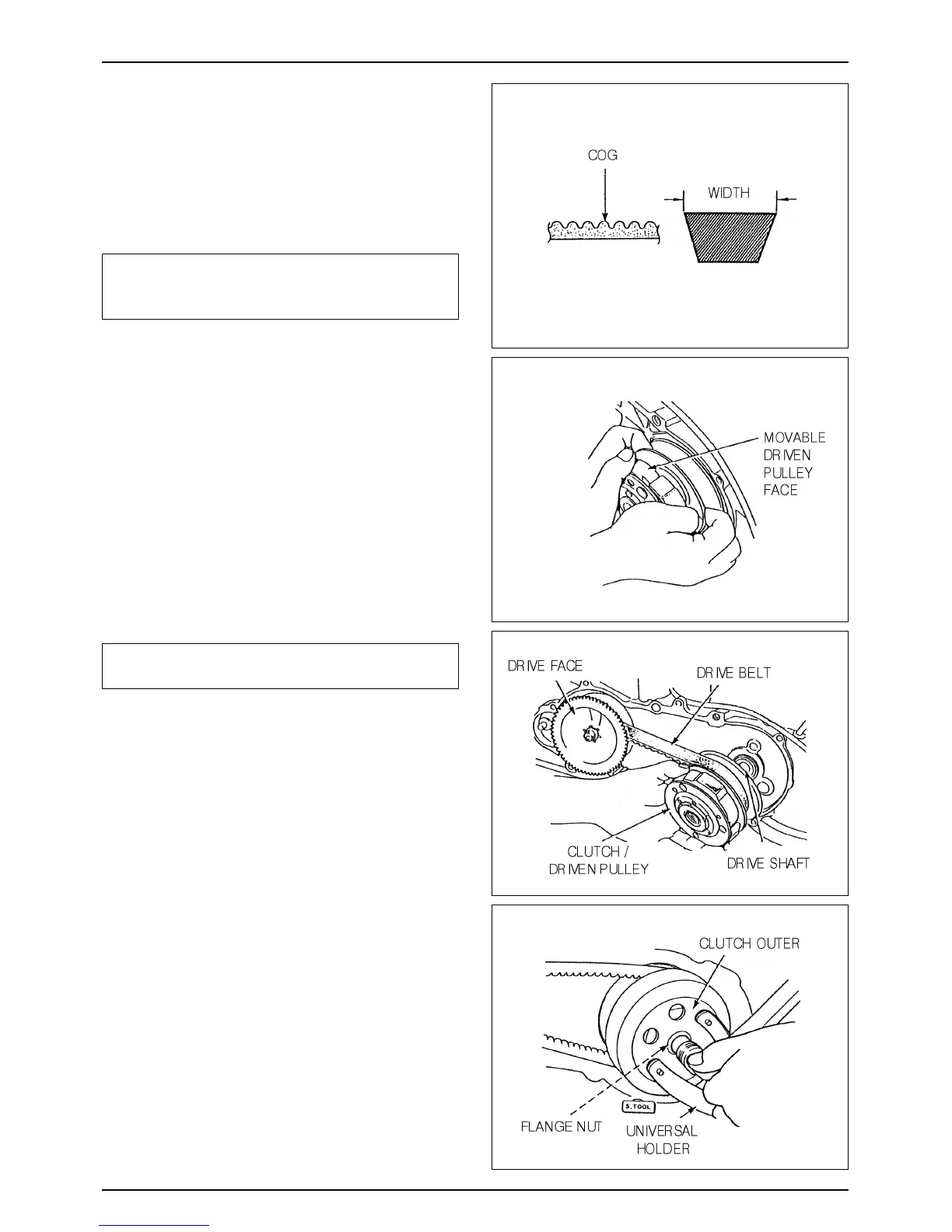

DRIVE BELT INSPECTION
● Check the drive belt for cracks, pry separation and
wear; replace as necessary.
● Measure the width of the drive belt as shown.
● Replace the belt if the service limit is exceeded.
SERVICE LIMIT : 16.5mm
NOTE
·Use only a genuine DAELIM replacement drive belt.
·Do not get oil or grease on the drive belt or pulley
faces. Clean off any grease or oil before reinstalling.
DRIVE BELT INSTALLATION
● Temporarily install the driven pulley/clutch assembly
on the drive shaft.
● Turn the pulley clockwise and spread the faces apart
while installing the drive belt.
● Remove the pulley assembly once with the drive belt
installed.
NOTE
·Hold the pulley faces apart preventing them from
closing.
● Put the drive belt over the drive pulley.
● Reinstall the driven pulley on the drive shaft with the
drive belt attached.
● Install the clutch outer and the universal holder. Tighten
the nut to the specified torque.
TORQUE VALUE : 4.0kgf
·
m
TOOL : UNIVERSAL HOLDER
● Reinstall the L. side cover.
7-5
KICK STARTER/CONTINUOUSLY VARIABLE TRANSMISSION
