8-2
CYLINDER HEAD/CYLINDER/PISTON
ENGINE HANGER COVER
FAN COVER COVER
FAN COVER
RUBBER
FAN COVER COMP.
SHROUD

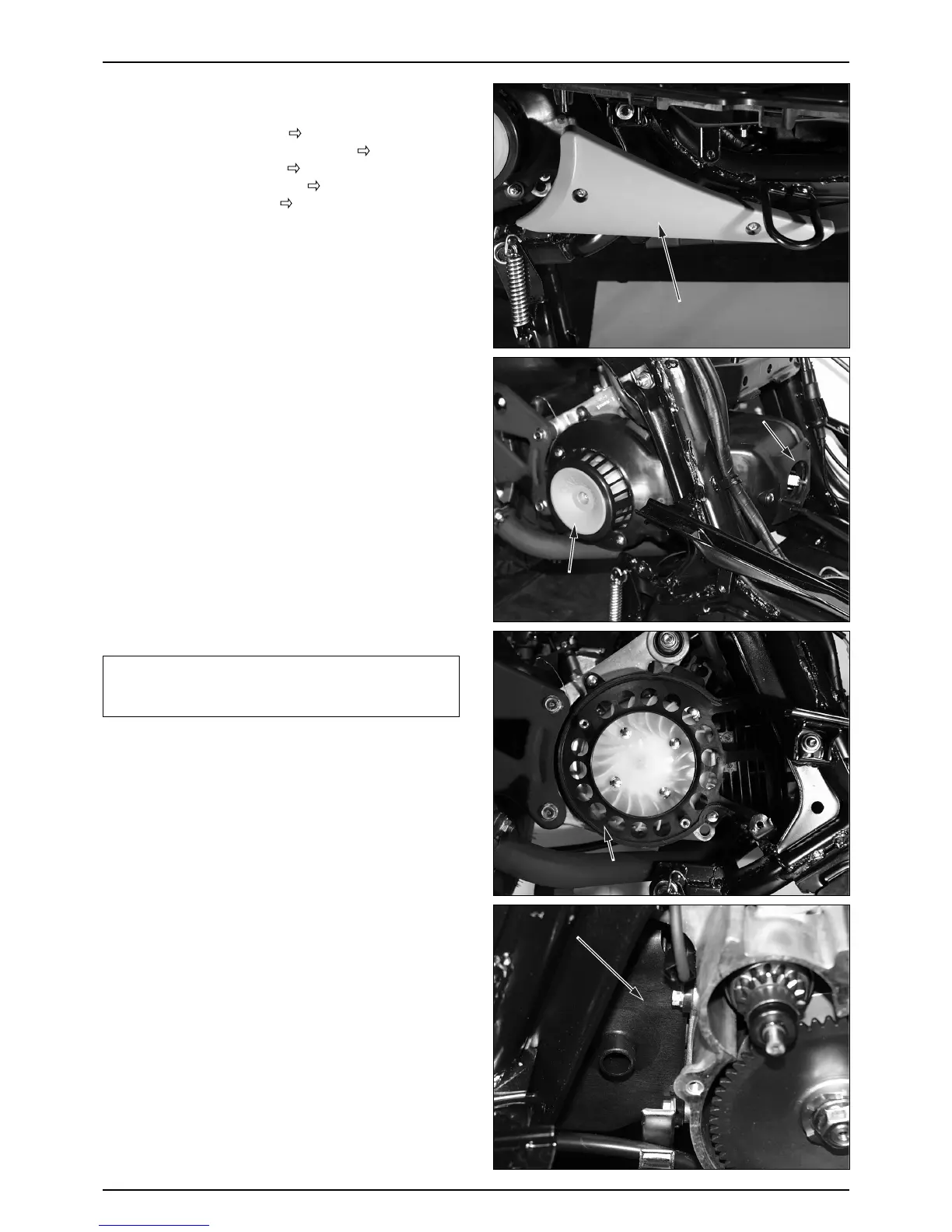

FAN COVER, SHROUD REMOVAL
● Remove the luggage box. ( 3-3 )
● Remove the plug maintenance cover. (
3-3 )
● Remove the center cover. (
3-3 )
● Remove the floor side cover. (
3-4 )
● Remove the floor panel. (
3-4 )
● Remove the plug cap.
● Remove the engine hanger side cover RH.
● Loosen the 3 fan cover cover comp washer screws.
● Remove the fan cover element B.
● Remove the fan cover rubber.
● Loosen the 2 fan cover flange bolts.
● Remove the fan cover toward the floor panel.
● Loosen the 2 left shroud flange bolts.
● Remove the left shroud.
NOTE
·Pay attention not to damage certain part when
removing
·Remove according to the working precedure.
● Install in the reverse order of removal.
