DAELIM S-FIVE Service Manual

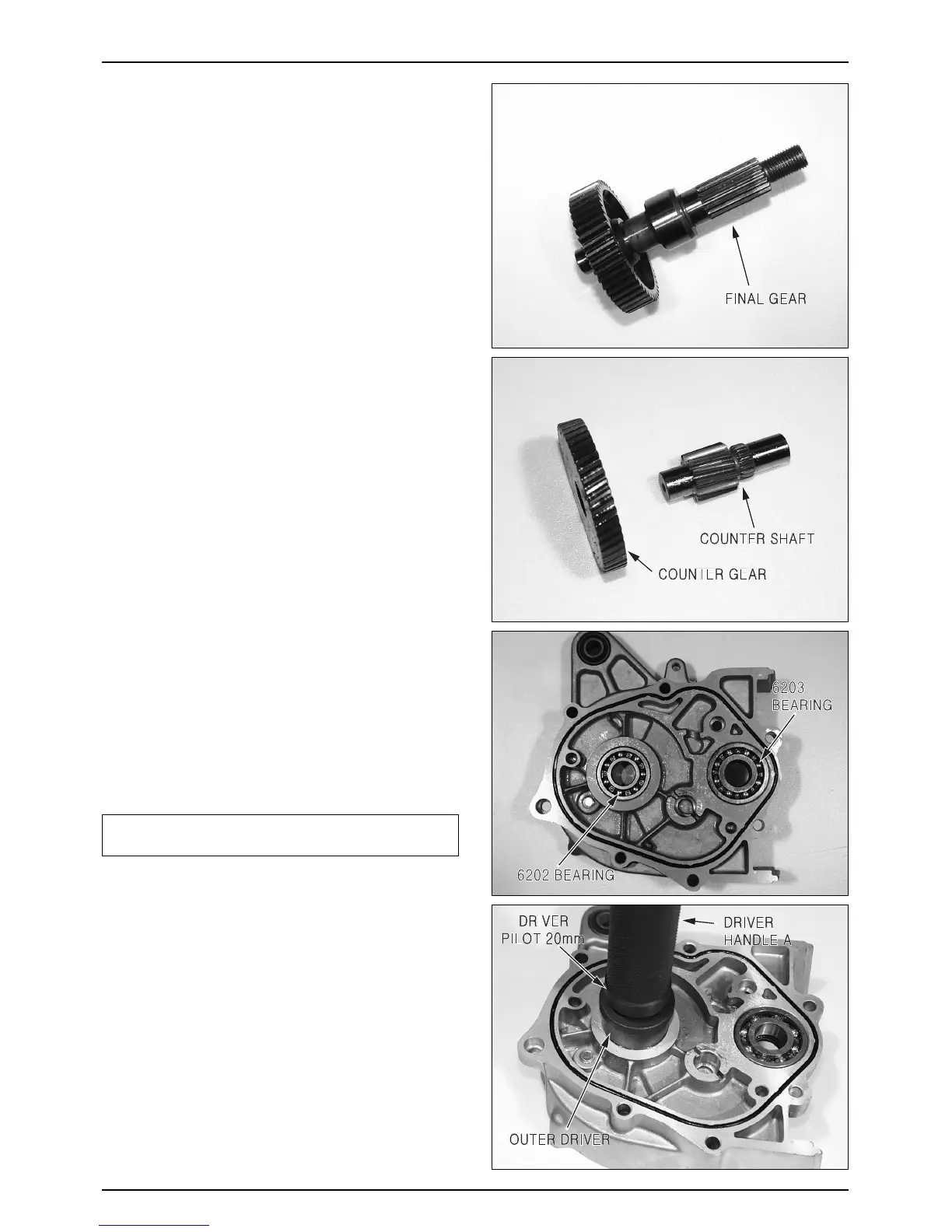

● Inspect the final shaft for wear or damage.
● Inspect the countershaft for wear or damage.
Bearing Inspection
● Manually turn the bearing inner race installed inside
the transmission cover, and check if the race is turning
smoothly.
● Verify the outer race is accurately installed in the case.
● Replace the bearing, if necessary.
NOTE
·Install the bearing with the carved mark directing to
the outside.
● Use special tools to push in the bearing into the case.
TOOLS : DRIVER HANDLE A
OUTER DRIVER 52X55
mm
DRIVER PILOT 20
mm
● Check the L. crank case oil seal for wear or damage.
9-3
TRANSMISSION/CRANKSHAFT/CRANKCASE

DAELIM S-FIVE Specifications

General

Fuel System	Carburetor
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Tires (Front)	120/70-12
Tires (Rear)	130/70-12
Engine Type	4-Stroke, Air-Cooled
Transmission	Automatic
Fuel Capacity	5.5 liters
