DAELIM S2 250

10-5

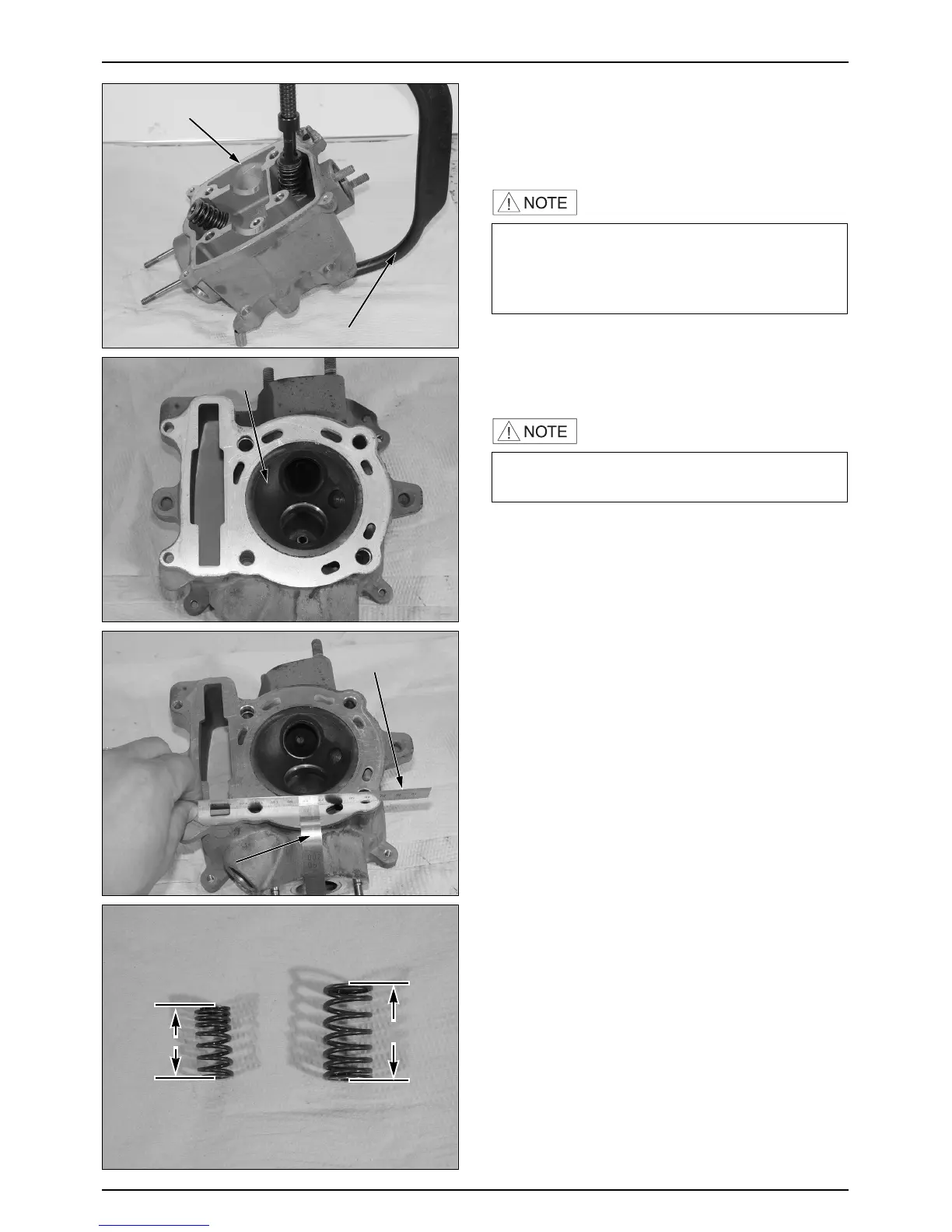

CYLINDER HEAD / VALVE
·Be careful not to damage the cylinder head mating
surface.
·Be sure to compress the valve springs with a valve
spring compressor.
·Mark all disassembled parts to ensure correct
reassembly.
● Remove carbon deposits fron the exhaust port and
combustion chamber.
DISASSEMBLY
● Remove the valve spring cotters, retainers, springs,
spring seats and valve stem seals using a valve spring
compressor.
INSPECTION
● Check the spark plug hole and valve areas for cracks.
● Check the cylinder head for warpage with a straight
edge and feeler gauge.
SERVICE LIMITS : 0.05mm replace or replace if
over
● Measure the free length of the inner and outer valve
springs.
SERVICE LIMITS:
INNER (IN, EX) : 29.5mm replace if below
OUTER(IN, EX) : 39.5mm replace if below
