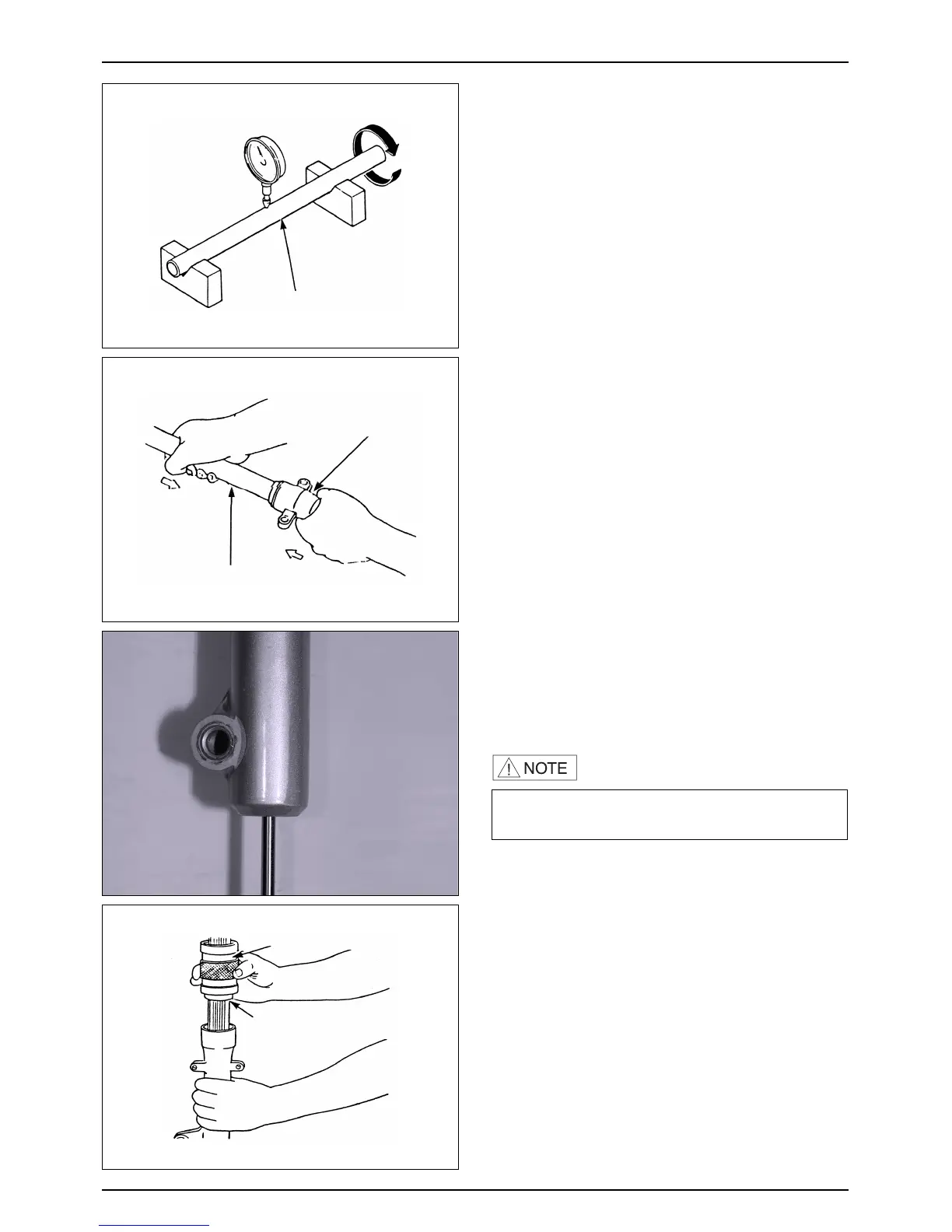

● Check the slider bush contact face.
● If the slider bush is extensively damaged, replace the
bottom case.
FRONT FORK
ASSEMBLY
● Wash parts with clean oil prior to assembling.
● Assemble the rebound spring and thd fork piston to the
fork tube.
● Assemble the fork tube to the bottom case.
● Wrap the bottom case with a piece of cloth, and fix it to
the vise.
● Apply screw locking agent to the socket bolt thread,
and assemble the socket bolt to the fork piston.
TORQUE VALUE : 2.0kgf
·
m
● Apply ATF to a new oil seal.
● Assemble the oil seal to the bottom case.
● Insert the oil seal with special tools until the attachment
groove of the bottom case set ring is exposed.
TOOLS : FORK SEAL DRIVER
FORK SEAL DRIVER BODY
14-17
FRONT WHEEL/FRONT FORK/STEERING/BRAKE
·When a vise is used to hold the bottom case, do not
insert the case itself but insert the bracket.
FORK TUBE
FORK SEAL DRIVER
FORK SEAL DRIVER
ATTACHMENT
BOTTOM CASE
FORK TUBE
