200706
5-5
Vehicle Identification
DAVIE XDc II

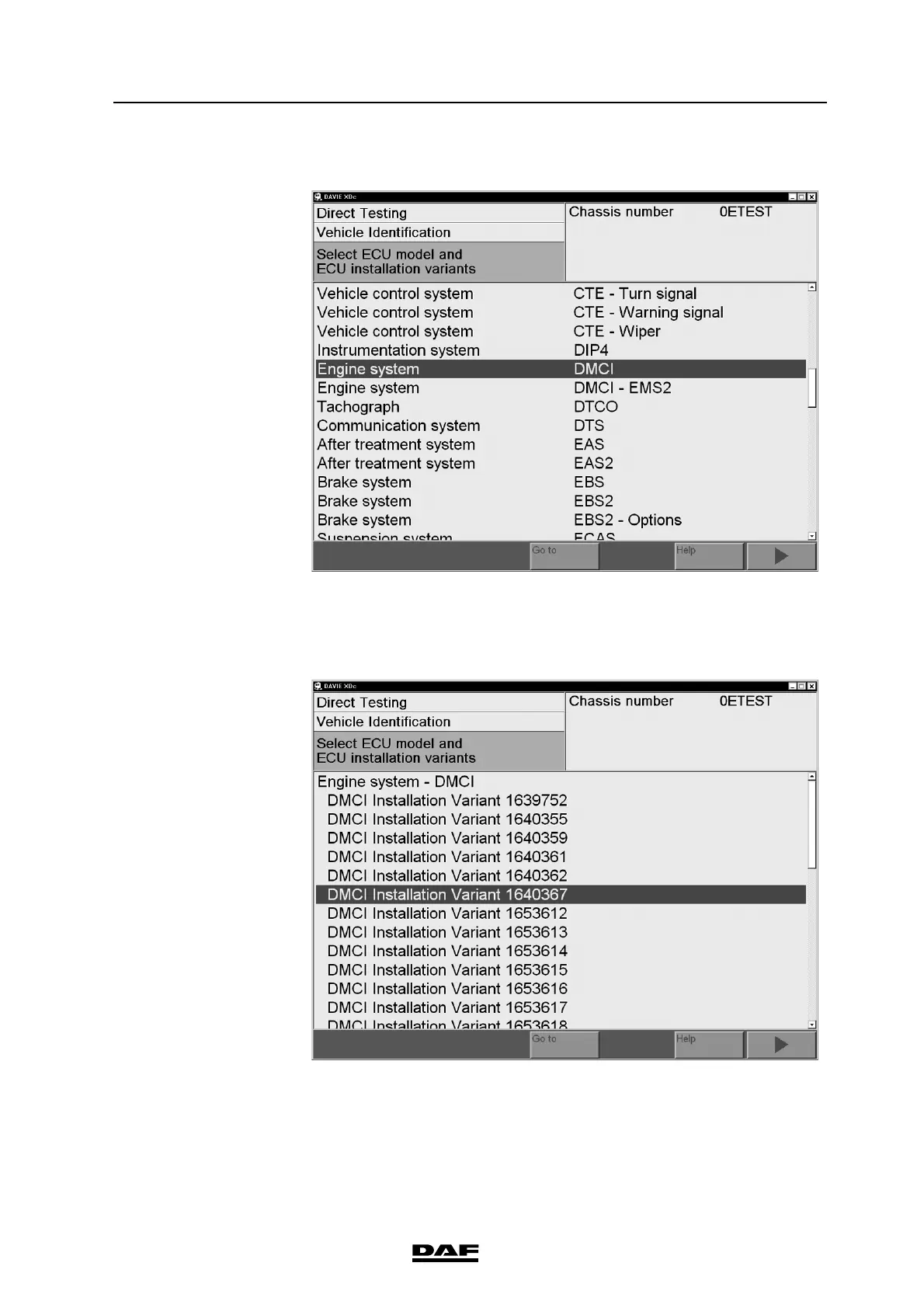

Figure 5-4
Manual system selec
tion
2.
Select one of the listed variant
s based on the DAF Mainframe or Part
s
Rapido online, Helpdesk or
other sim
ilar information.
Figure 5-5
Manual syst
em variant selectio
n
The selection is marked with a bar
. Co
nfirm the selection
with the "Forward
/ >"button. The Direct T
est or Guided Diagnosis screen is displayed.
By selecting the syst
em name, it is
possible to switch
back to the system
selection list.
42
44
