5-6
©
200706
DAVIE XDc II
Vehicle Identification
Figure 5-6
System sel
ection, Go
to "I
nstallation varia
nts"
3.
If more s
ystems need to
be selected, use the "Go to" button and select
"ECU Installation V
ariant
s". The already chosen system inst
allation variants
are displayed.

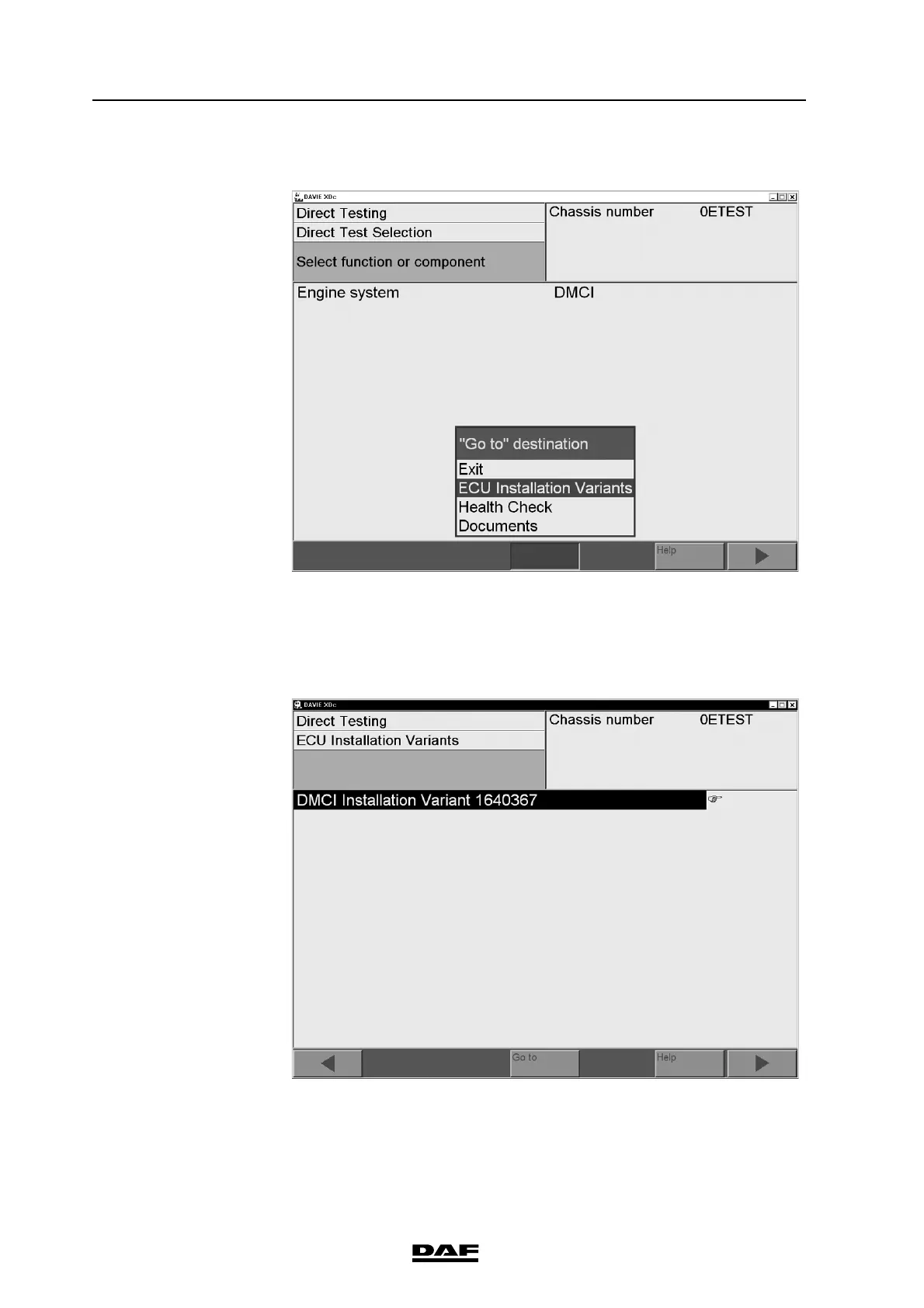

Figure 5-7
Overview: manual selection
4.
Press the "Back / <" butt
on to switch to
the syst
em selection screen and
select a system. Like step 1, figure 5-4.
Repeat steps 1 to 4 to select more system
s.
43
45
