Dahua DH-XVR1B08 User Manual

Local Configurations 53
Click . Step 2
 If you have set the reserved email address, the Prompt message interface is
displayed. See Figure 5-10.
 If you did not set the reserved email address, the email entering interface is
displayed. See Figure 5-11. Enter the email address, and then click Next, the
Prompt message interface is displayed. See Figure 5-10.

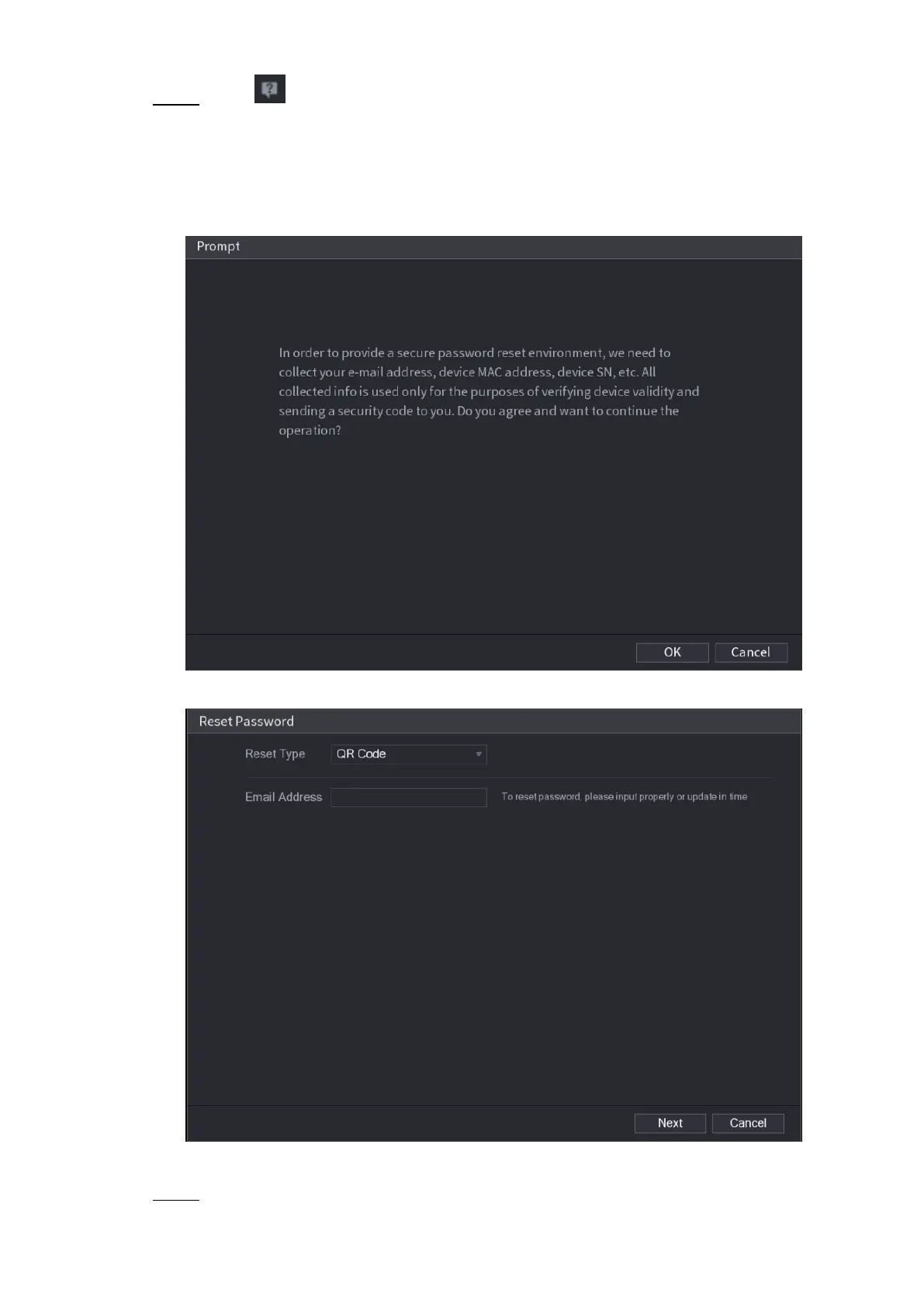

Figure 5-10
Figure 5-11
Click OK. Step 3

Dahua DH-XVR1B08 Specifications

General

Audio Input	1 channel, RCA
Audio Output	1 channel, RCA
Video Output	1 HDMI, 1 VGA
USB	2 USB 2.0 ports
Power Supply	DC12V/1.5A
Video Compression	H.265/H.264
Analog Camera Input	8 channels, BNC
IP Camera Input	8
HDD	1 SATA port, up to 6TB
Network	1 RJ-45 port (10/100 Mbps)
Operating Temperature	-10°C to +55°C
Operating Humidity	10% to 90%
Max Recording Resolution	1080N/720p/960H/D1/CIF
