User’s Manual
18
4 Keypad
This chapter introduces the dimensions, main functions, indicators, keys operations, and installation
of the keypad.
4.1 Dimensions

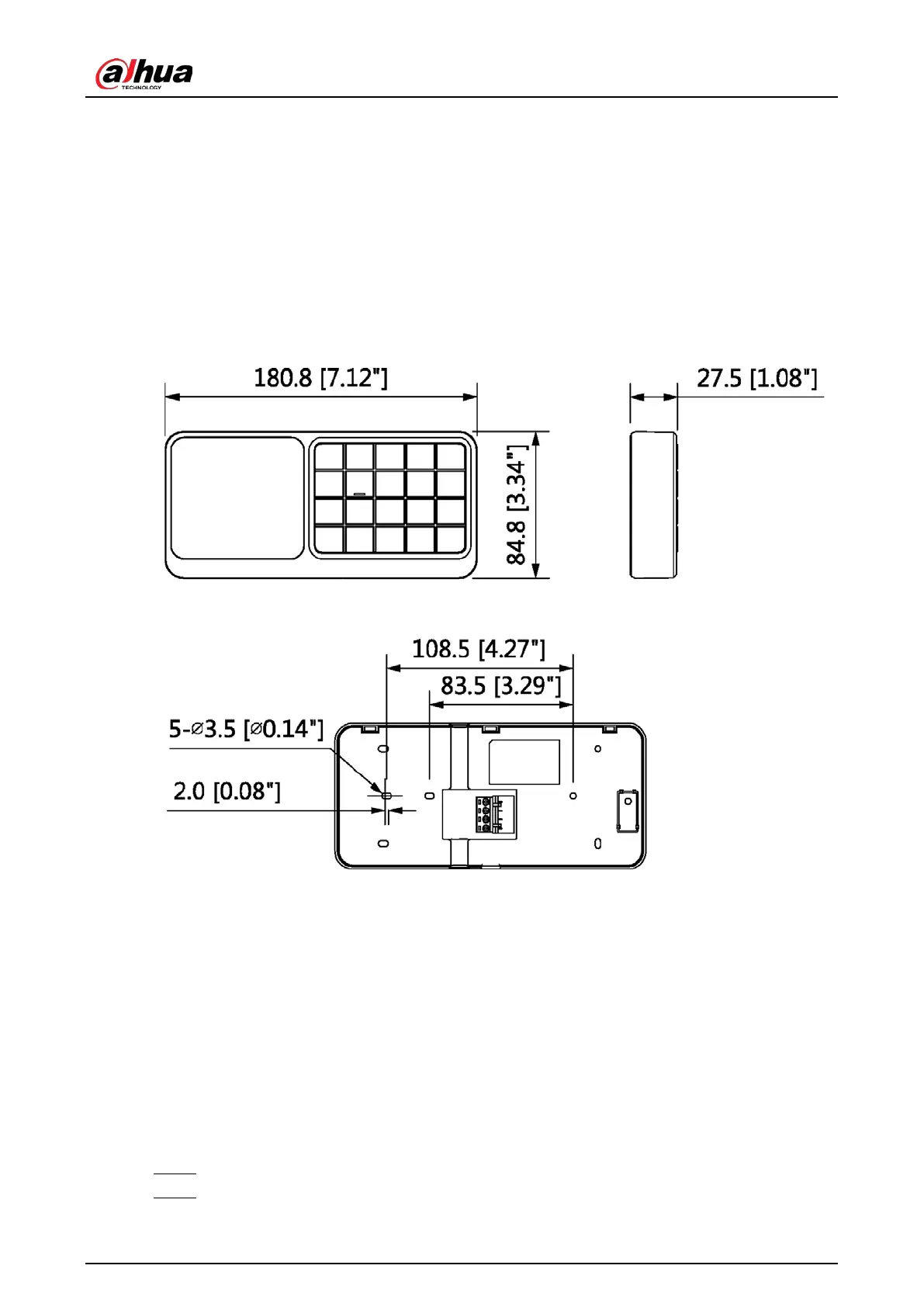

Figure 4-1 Dimensions (unit: mm [inch])
4.2 Installation
Prerequisites
Make sure to prepare following expansion bolts and self-tapping screws first.
●
Expansion bolts
Outer diameter: 6.5 mm; inner diameter: 2.5 mm; length: 28.1 mm; quantity: 4.
●
Self-tapping screw:
Diameter: 3 mm; length: 18 mm; quantity: 4.
Procedure
Step 1 Unpack the box and take out the expansion bolts and self-tapping screws.
Step 2 Drill screw holes with a diameter of about 6.35 mm and a depth of about 28.1 mm on the
