User’s Manual
31

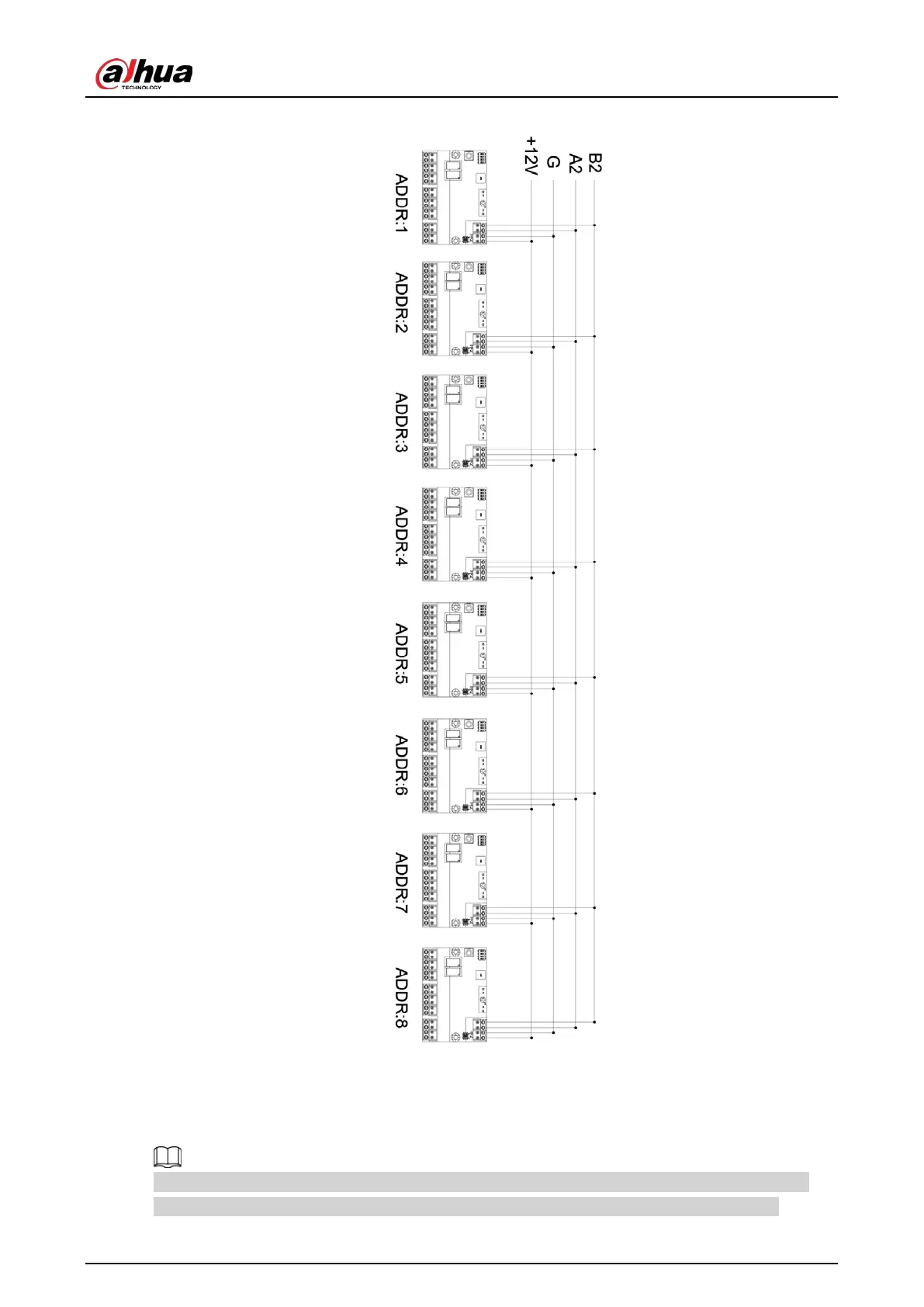

Figure 5
-
3 Expansion module connections
5.3 Module Functions
Dip switch ad
dresses of the e
xpansion module
s (including
alarm input and
output modules)
are
from 1 to 8. For deta
iled settings,
see "3.1 Setting K
eypad and Expan
sion Module A
ddresses."
41
43
Table of Contents
Foreword
2
Important Safeguards and Warnings
4
Table of Contents
9
Introduction
12
Overview
12
Features
12
Technical Specifications
13
Wiring and Installation
19
Dimensions
19
Installation
19
Main Board
20
Main Board Ports
20
Ports
21
DIP Switch
23
Function
23
Restoring Factory Default Settings
24
Wiring
25
Startup
26
Setting Keypad and Expansion Module Addresses
26
Setting Card Reader Address
26
Powering on the Controller
27
Powering on the Keypad
28
Factory Default Settings
28
Lead-Acid Battery
28
Keypad
29
Dimensions
29
Installation
29
Wiring
31
Structure
32
Keys
32
Numeric Keys (from 0-9)
33
Function Keys
33
Key Combination Operations
34
LED Indicators
36
Overview
36
Status
36
LCD Display
37
Expansion Module (Optional)
40
Dimensions
40
Wiring
41
Module Functions
42
Module (Optional)
44
Dimensions
44
Installing 4G Modules
44
Installer Operations
48
Entering the Installer Menu
48
Installer Menu Options
49
Keypads
49
Communicator
51
Power Supplies
52
Wired Zones
53
Key Type Zone
57
In and Zones
58
Outputs
59
Entering Output Menu
59
Configuring Output Categories
60
Areas
66
System Functions
68
System Timing
70
System Timer
71
Access Codes
73
Authority Level
73
Configuring Authority Level
73
Configuring Access Codes
75
Setting an Access Code
75
Deleting an Existing Access Code
76
Customizing the Description of Access Code
76
Date and Time
76
Holiday
77
Telephone Number
78
Remote Service
80
Monitor Station
80
Vocal Messages
81
SMS Messages
85
Digital Format
89
TCP/IP Network
93
Log Events
93
4G Module
94
Language
95
RFID Cards
95
Expansion Modules
96
Sia
97
Alarm Config Tool
101
Home Page
101
Setting
102
Client
102
Managing a Client
102
Adding a Client
102
Modifying a Client
103
Copying a Client
103
Deleting a Client
103
Searching a Client
103
Configuring Client Parameters
104
Utility
113
Installer
114
Language
114
Updating Device
114
DMSS App Operations
116
Installing the App
116
Adding Alarm Controller
116
Area Arming and Disarming
117
Zone Settings
119
Configuring Device on App
120
Configuring Alarm Controller
120
Configuring Area
122
Faq
123
Appendix 1 Keypad Buzzer Sound
125
Appendix 2 Event Log Messages
126
Appendix 3 Installer Menu Map
128
Appendix 4 Cybersecurity Recommendations
134
