User’s Manual
25

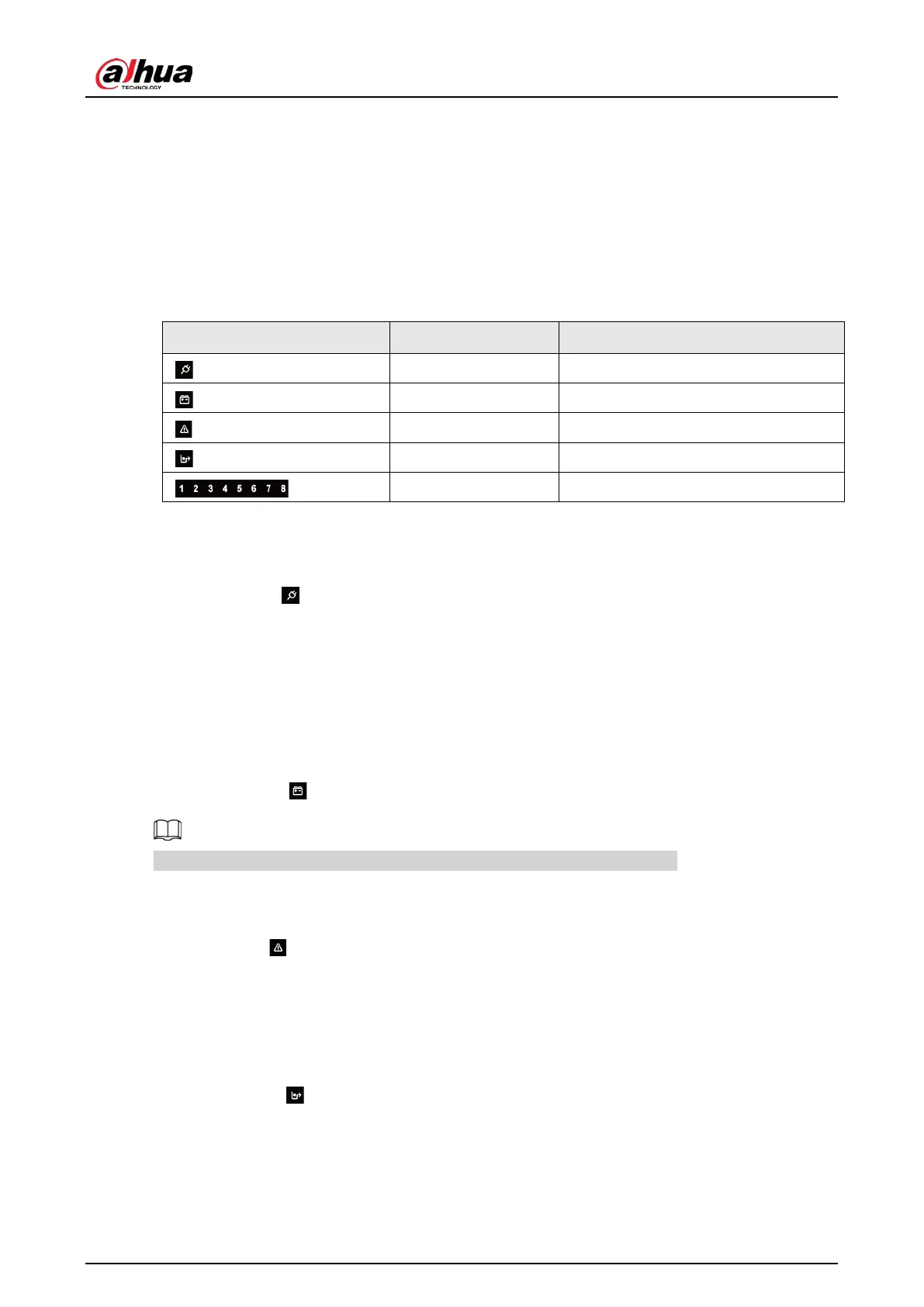

4.6 LED Indicators
There are 12 LED indicators on the keypad that respectively shows information about power status,
battery status, faults, bypass, and alarm status of each area.
4.6.1 Overview
Table 4-4 LED indicators
Icon Color Meaning
Green Power status.
Green Battery status.
Red Fault status.
Green Bypass.
Red Alarm status of eight areas.
4.6.2 Status
Power LED Indicator ( )
●
Glows green: The system operates with normal power supply.
●
Slowly flashes green: The system does not operate normally due to a lack of power supply. Make
sure to check the power.
●
Quickly flashes green: The system is in installer programming mode or in the walk test zone
mode. If a lack of power supply occurs when the system is in either of these two modes, the LED
indicator also quickly flashes.
Battery LED Indicator ( )
If power supplies normally, the indicator will not be ON in case of low battery.
●
Slowly flashes green: Battery faults such as low power and powering off quickly.
●
Off: Battery operates normally.
Fault LED Indicator ( )
●
Glows green: System faults (main power loss, battery low voltage or missing), and you can view
the details on the
SYSTEM TROUBLES
menu of
User
menu.
●
Slowly flashes green: Tampering is happening to the controller, siren, or keypad.
●
Off: The system operates normally.
Bypass LED Indicator ( )
●
Glows green: There is at least one bypassed zone.
●
Off: There is no bypassed zone.
