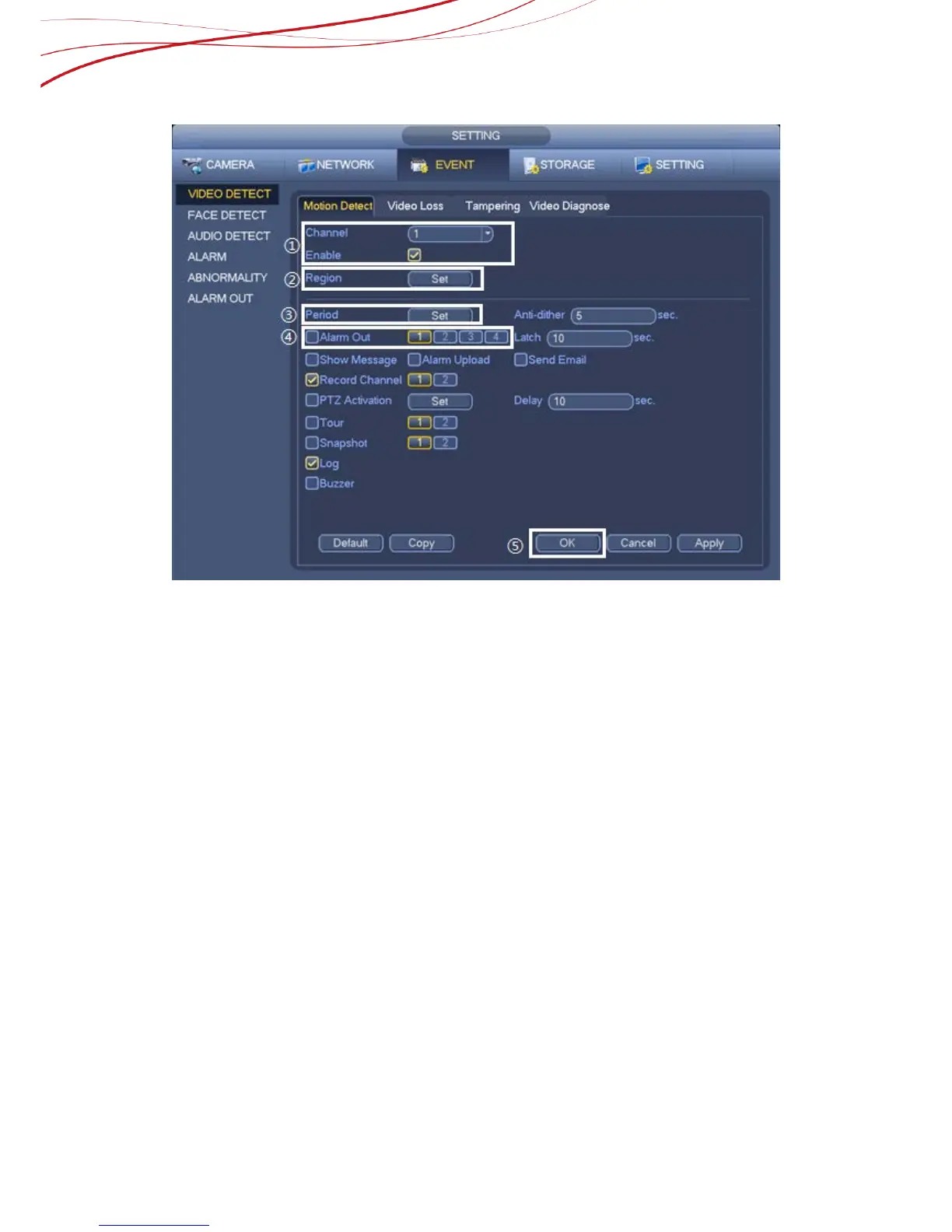

Figure 3-13
Operation Steps:
1) Select a channel from the dropdown list, then click “Enable” button.
2) Working period setting, default it all day.
3) Click “Set” of Region. Select the area to enable or disable motion detect.
4) If alarm Out is enabled, it will trigger alarm out when it occurs. It is the same with the
setting of MD.
5)
Click “OK” to save settings.
3.9. How to set the Tripwire of camera
From main menu->Setting->IVS, you can see tripwire, intrusion, object, scene change
for selection.
Function Description:
Tripwire is to detect if there is any object crossing the warning line, it can support
different direction selection, such as A->B, B->A and bidirectional, and it can activate
record , snapshot and alarm according to the judgment result.
