8 PTZ
8.1 Hardware Connection

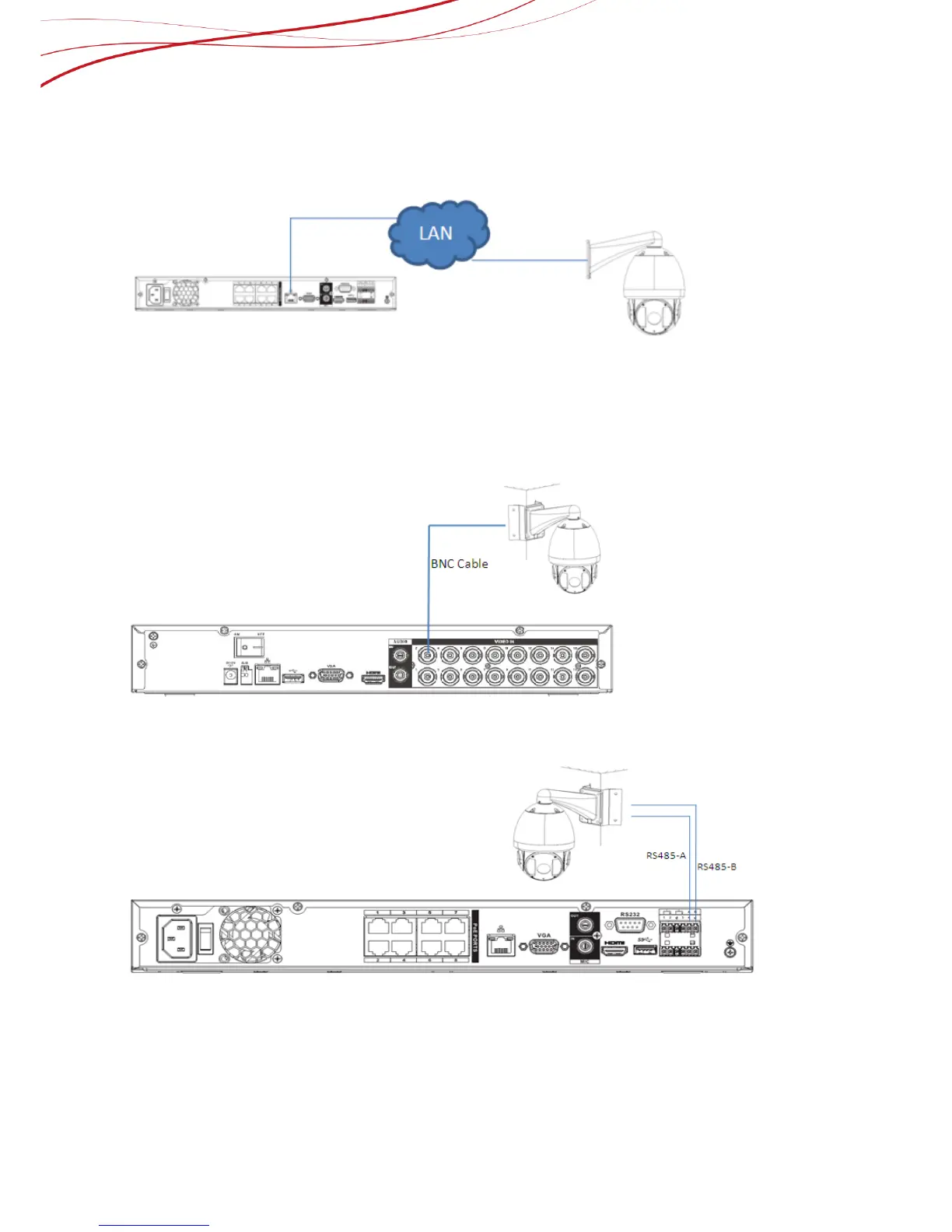

For Network PTZ:
Figure 8-1
For HDCVI PTZ:
Note: HDCVI (High Definition Composite Video Interface) is an over-coaxial-cable analog HD video
transmission standard which is submitted by Dahua Technology. The technology composites
video, audio and PTZ signals together and have them transmitted over coaxial cable.
Figure 8-2
For Analog PTZ:
Figure 8-3
8.2 Software Setup
In the main menu, from Setting->System->PTZ, you can see an interface is shown as in Figure 8-4.
Here you can set the following items:
